11 12 105 Removing and installing left cylinder head (N62 from 9 / 03: Installation:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Installation of cylinder head is described separately from removal.

Clean sealing faces of cylinder head and crankcase; if necessary, remove gasket debris with wooden scraper. Make sure no gasket debris drops into the oil and coolant ducts.

Threaded bores in engine block must be free of dirt and oil (risk of cracking).

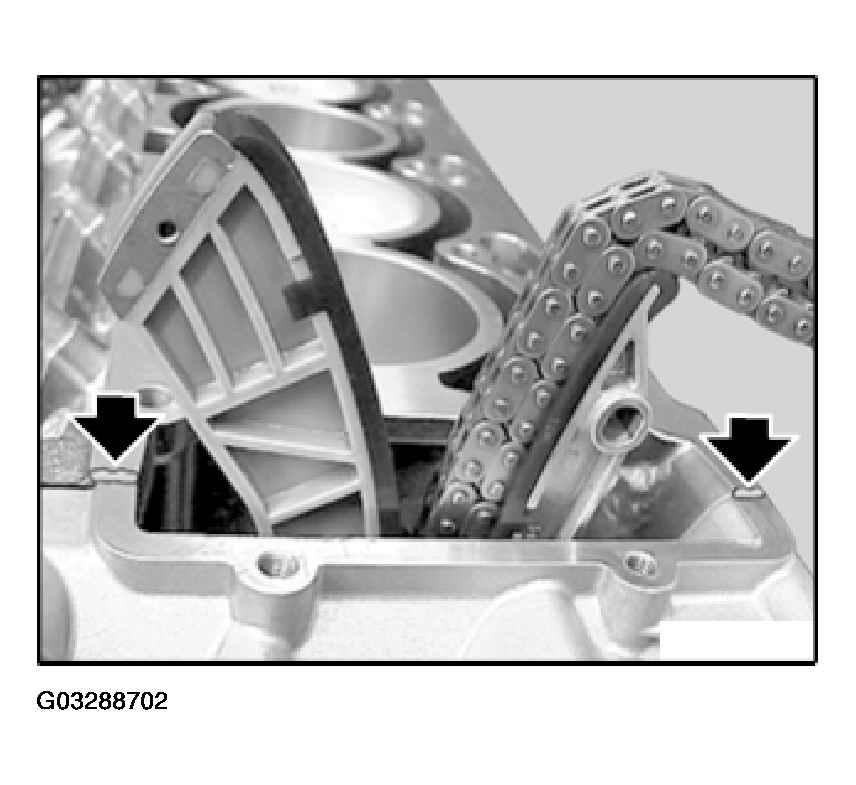

Coat joint between engine block and timing case cover with Drei Bond 1209.

Fig 1: Locating Joint Between Engine Block And Timing Case Cover
G03288702Courtesy of BMW OF NORTH AMERICA, INC.

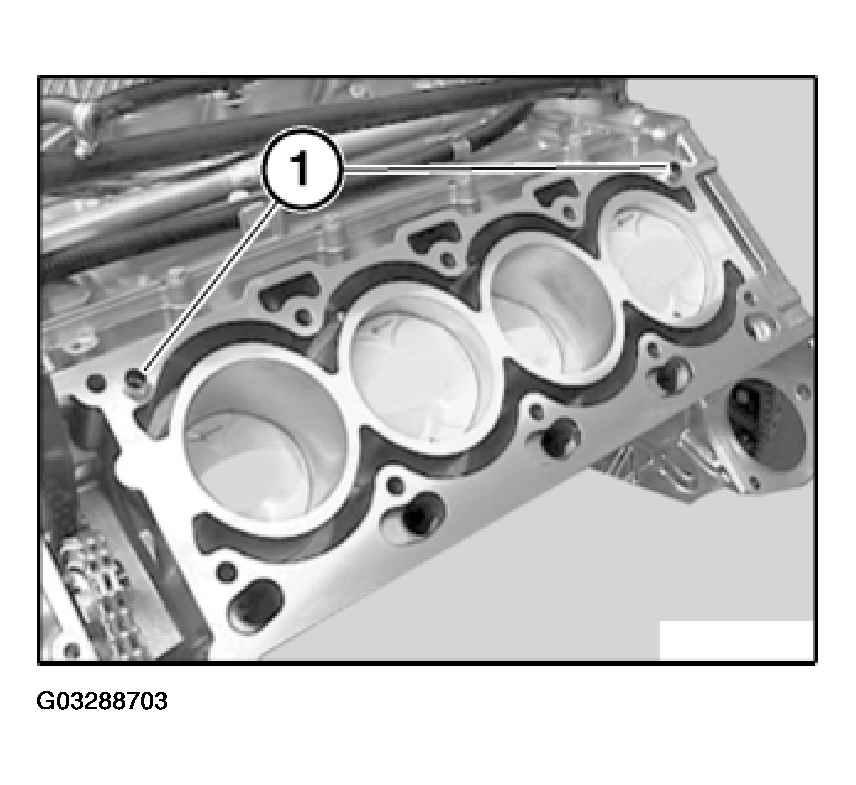

Check dowel sleeves (1) for damage and correct installation position.

Fig 2: Checking Dowel Sleeves
G03288703Courtesy of BMW OF NORTH AMERICA, INC.

Fit new cylinder-head seal.

Put the cylinder head on.

NOTE: Do not wash off bolt coating. Insert new cylinder head bolts and initially tighten so that they are free of play.

At narrow points, use a socket with 3/8" drive and a short extension.

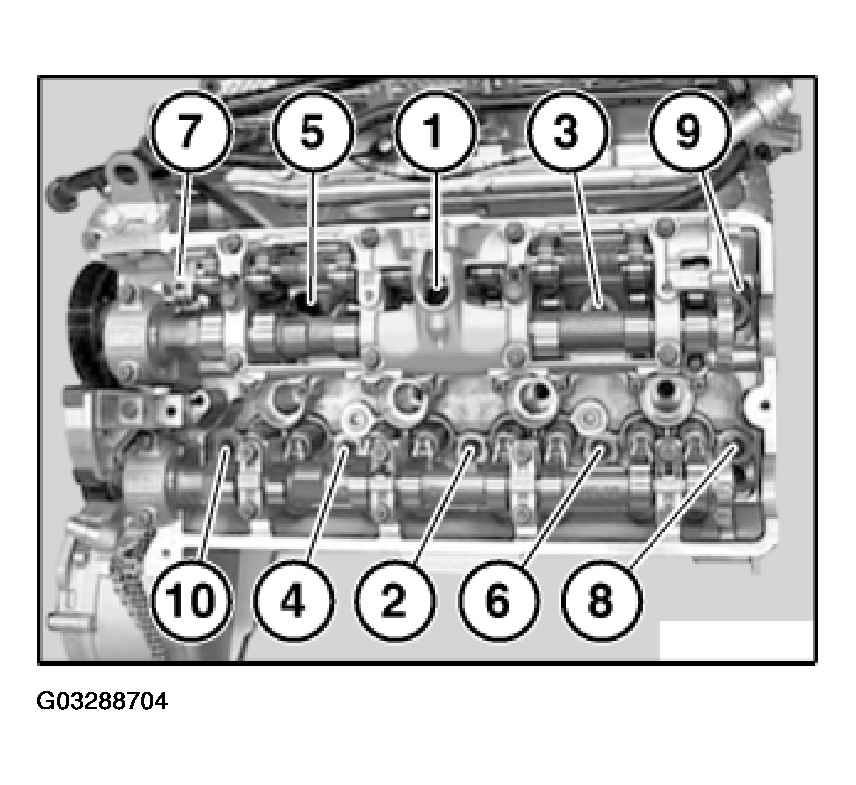

Tighten down the cylinder-head bolts in order 1 ... 10.

Fig 3: Left Cylinder Head Bolts Tightening/Loosening Sequence (N62)
G03288704Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 12 8AZ. Refer to ENGINE - TIGHTENING TORQUES .

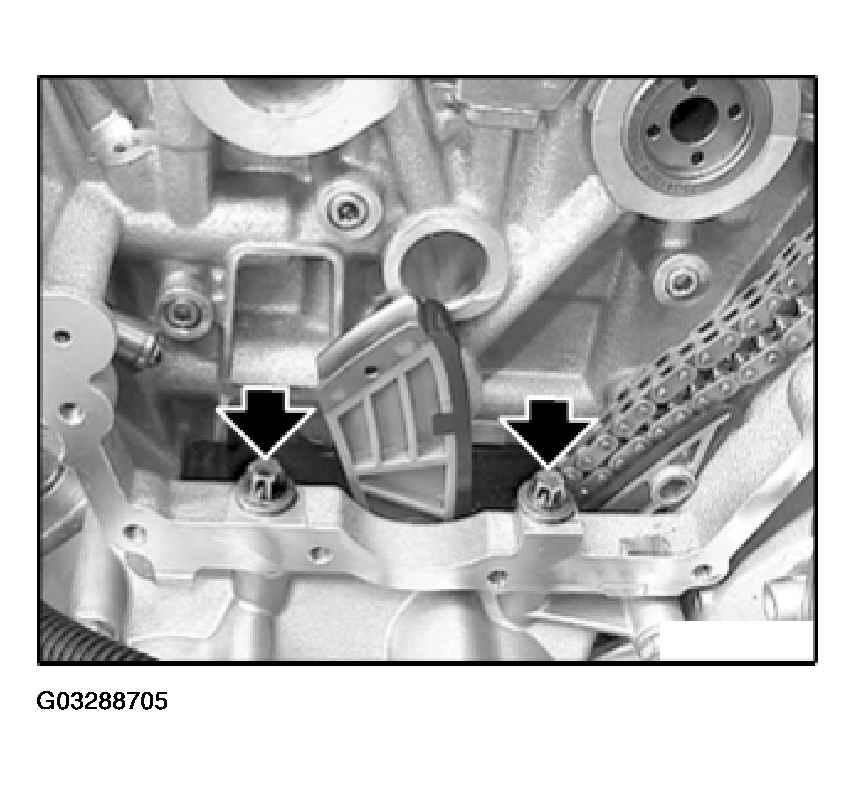

Insert and tighten down screws between cylinder head and timing case cover.

Fig 4: Inserting Screws Between Cylinder Head And Timing Case Cover
G03288705Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

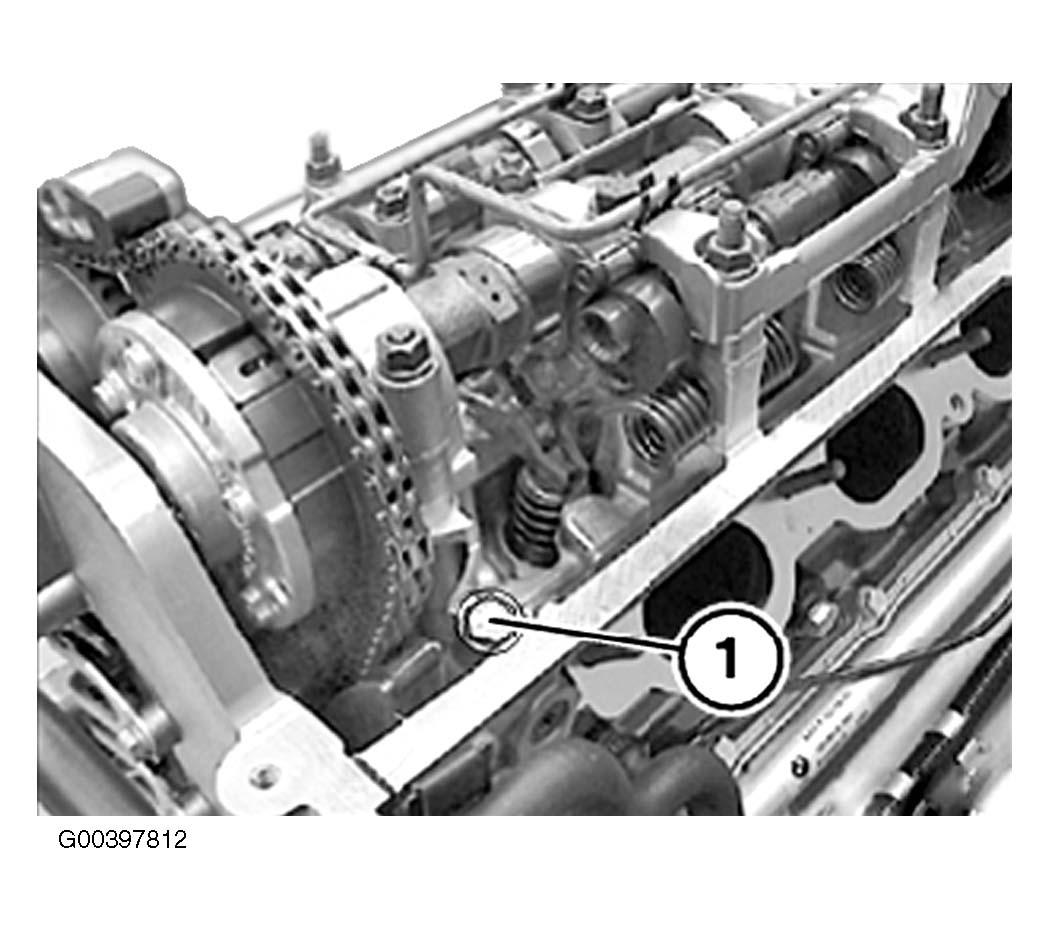

Insert screw plug (1).

Fig 5: Inserting Screw Plug
G00397812Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Failure to install the screw (1) will result in a malfunction in the VANOS control.

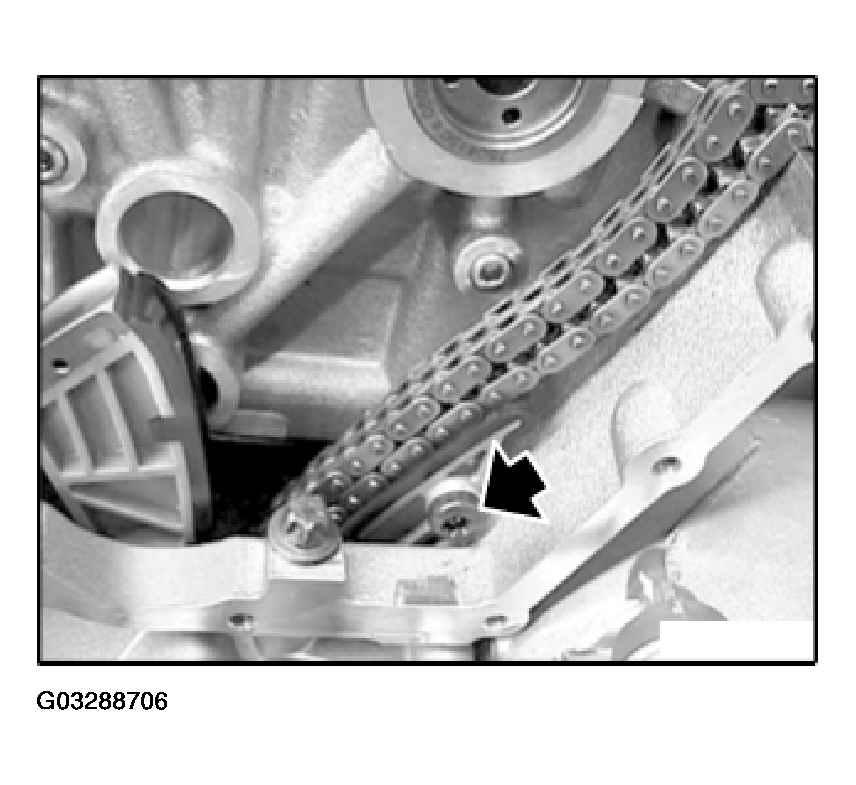

Insert and tighten down guide rail screw.

Fig 6: Inserting Guide Rail Screw
G03288706Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Illustration with engine removed.

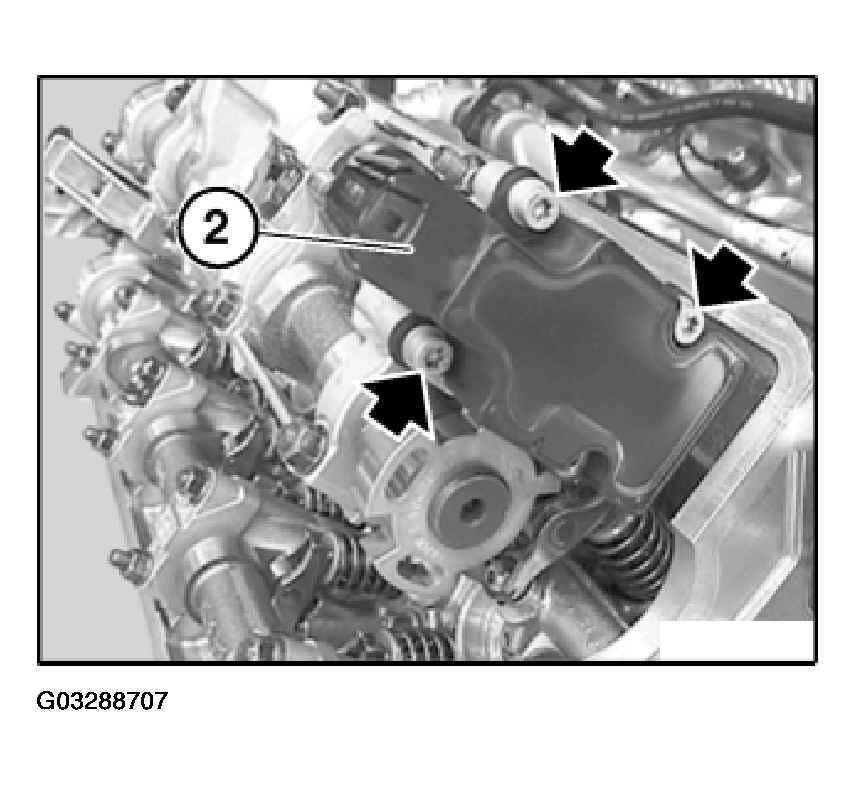

Install eccentric shaft sensor (2).

Fig 7: Installing Eccentric Shaft Sensor
G03288707Courtesy of BMW OF NORTH AMERICA, INC.

Install inlet and exhaust adjustment unit on left side. Refer to 11 36 047 Removing and installing/replacing inlet and exhaust adjustment units on left side (N62) .

Assemble engine.
