11 21 531 Replacing all main crankshaft bearing shells (N62): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 590
00 9 120
(engine dismantled)

Clean components before installing.

Preparatory tasks are described in the section Replacing crankshaft. Refer to 11 21 500 Replacing crankshaft (N62 / N62TU) .

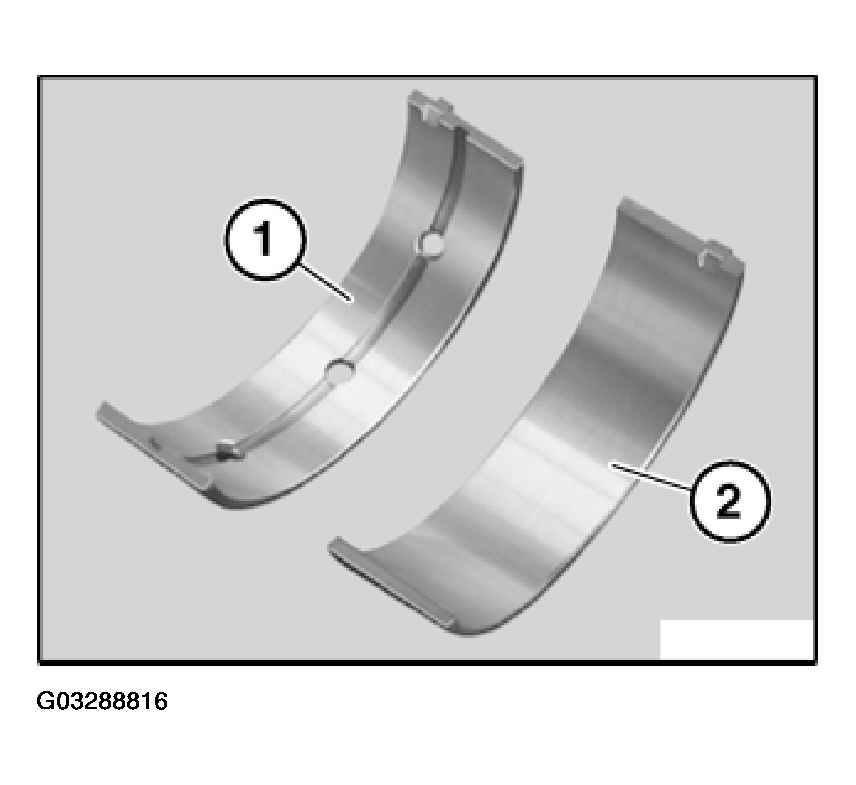

NOTE: Install main bearing shells (1) with lubrication groove in crankcase.
Install main bearing shells (2) without lubrication groove in the main bearing caps.

Fig 1: Installing Main Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

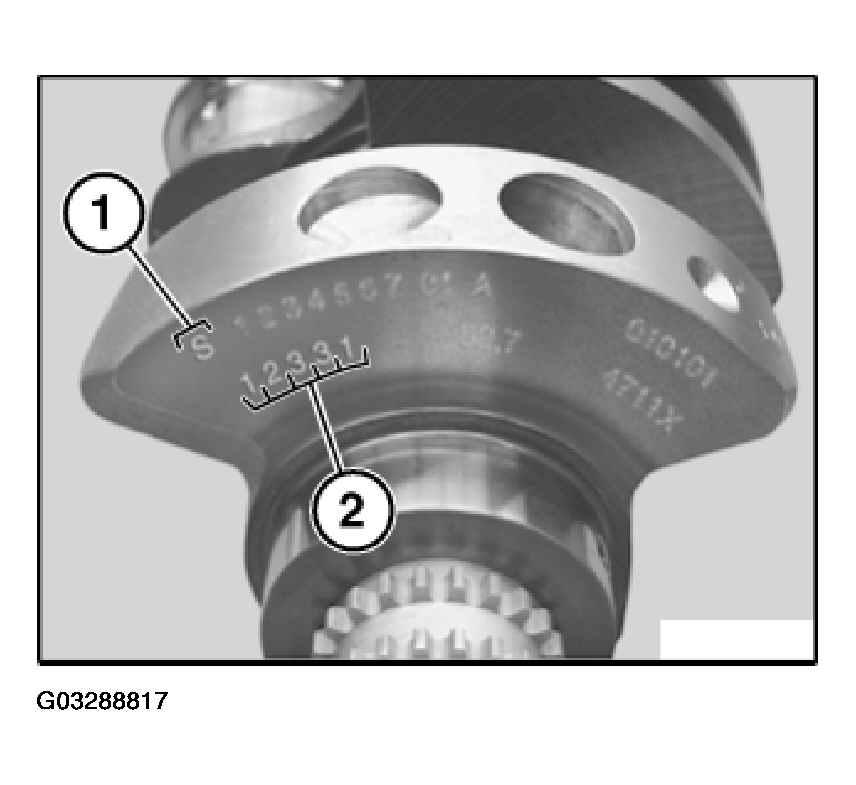

The letter (1) denotes the crankshaft construction stage.

Fig 2: Identifying Crankshaft Construction Stage

Courtesy of BMW OF NORTH AMERICA, INC.

S= Series

B= Construction stage 1

C= Construction stage 2

The numbers (2) denote the bearing shell classification for the relevant bearing position from 1 to 5 (main bearing cap).

1 = yellow

2= green

3= violet

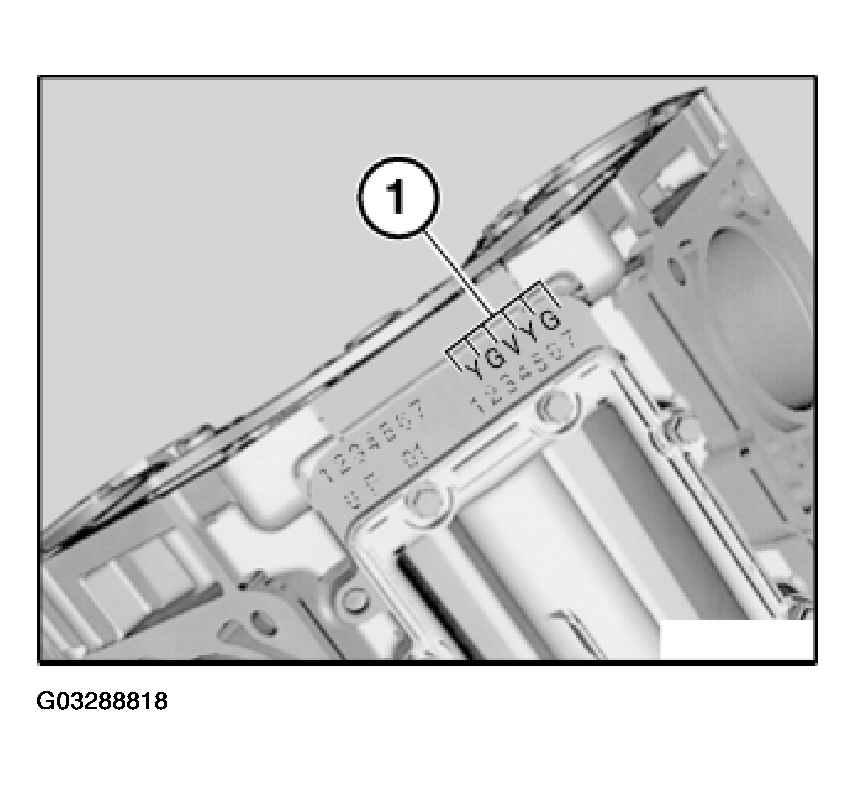

The letters (1) denote the bearing shell classification for the relevant bearing position from 1 to 5 in the crankcase and is located on the transmission side in the Vee. The first letter on the left applies to the first bearing position at the front.

Y= yellow

G= green

V= violet

Fig 3: Identifying Bearing Shell Classification

Courtesy of BMW OF NORTH AMERICA, INC.

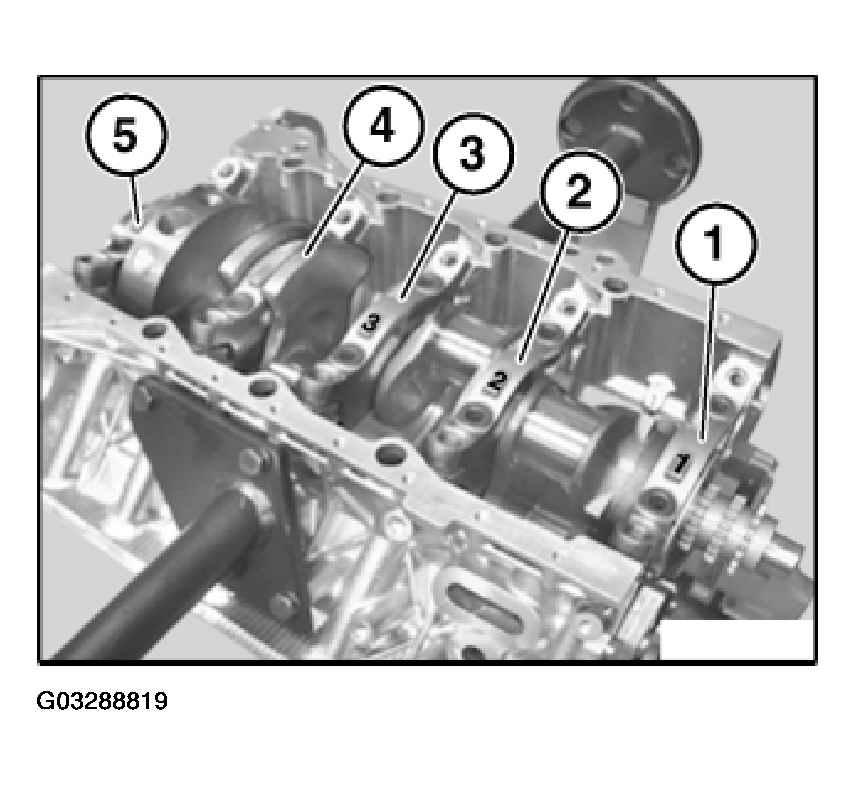

NOTE: Main bearing caps (1, 2 and 3) are identified with punch numbers.
Main bearing caps (4 and 5) are not identified.

Fig 4: Identifying Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

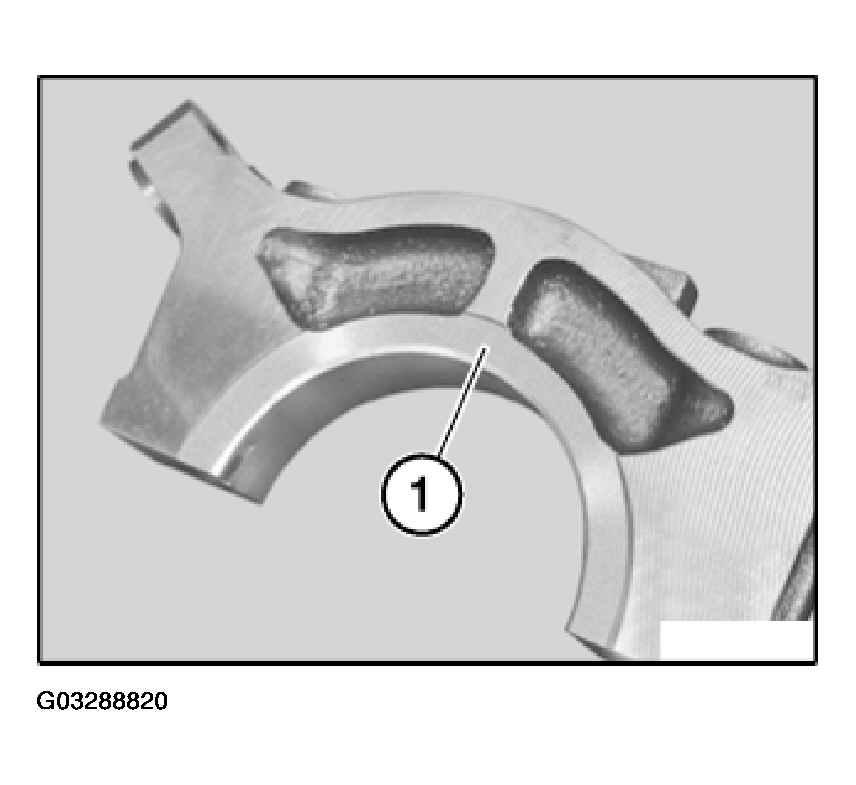

NOTE: Main bearing cap number 5 can be identified by the surfaces (1) for the stop disks of the thrust bearing.

Fig 5: Identifying Main Bearing Cap Number 5

Courtesy of BMW OF NORTH AMERICA, INC.

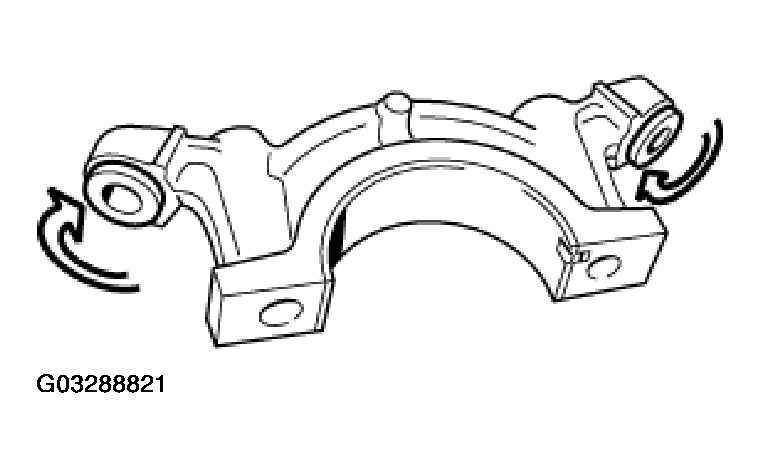

Unscrew thread support bushings in main bearing caps.

Fig 6: Identifying Thread Support Bushings

Courtesy of BMW OF NORTH AMERICA, INC.
