00 00 610 Engine oil service (N62): Notes

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Recycling:

Catch and dispose of used oil.

Observe country-specific waste-disposal regulations.

NOTE: For purposes of clarity, this work step is shown without the reinforcement plate.

Open oil drain plug (1) in oil sump.

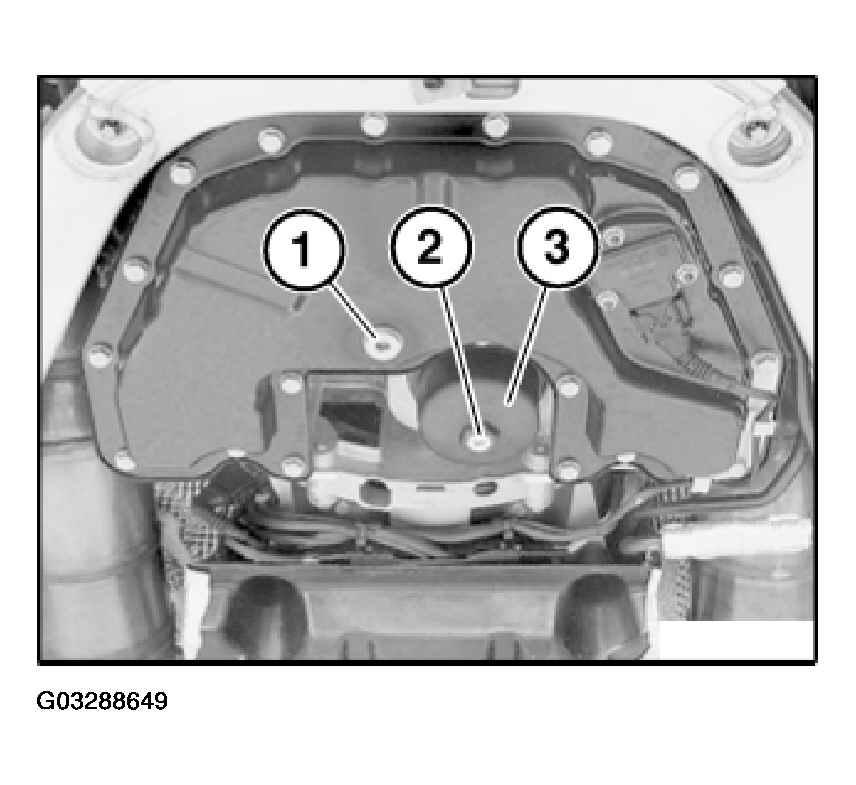

Fig 1: Removing Drain Plug On Oil Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove drain plug (2) on oil filter cover (3).

Release oil filter cover (3).
