00 00 610 Engine oil service (N62): Installation:

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Replace and lubricate sealing rings (1 and 2).

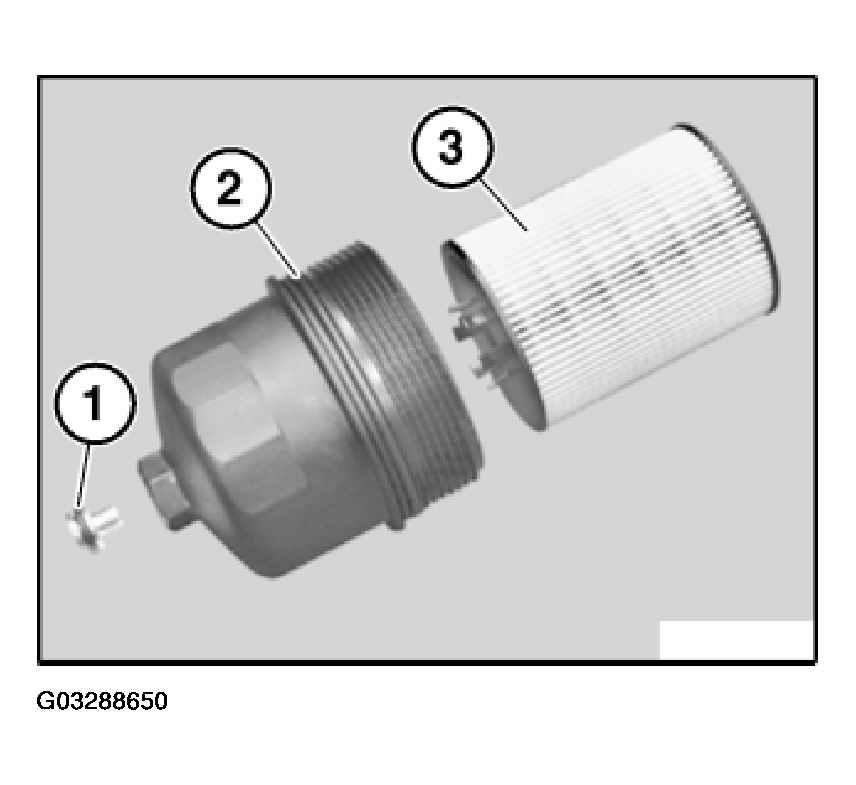

Fig 1: Identifying Sealing Rings And Oil Filter Element

Courtesy of BMW OF NORTH AMERICA, INC.

Replace oil filter element (3) and slide into oil filter cover.

Oil filter element (3) must snap audibly into place.

Installation:

Replace sealing ring.

Fig 2: Inserting Drain Plug On Oil Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and tighten down drain plug (1).

Tightening torque 11 13 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Insert and tighten down oil filter cover (3).

Tightening torque 11 42 2AZ. Refer to ENGINE - TIGHTENING TORQUES .

Insert drain plug (2) on oil filter cover (3) and tighten down.

Tightening torque 10 Nm

Pour in engine oil.

Start engine and run at idle until oil indicator lamp goes out.

Switch off engine, wait approx. 5 minutes and then check engine oil level.

Top up engine oil if necessary.
