Removal & Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Extend steering wheel setting up to stop. Unfasten screws and pull off lower section of steering column trim towards bottom. See Fig 1 .
To install, reverse removal procedure. Clip leather boot into trim. See Fig 2 .

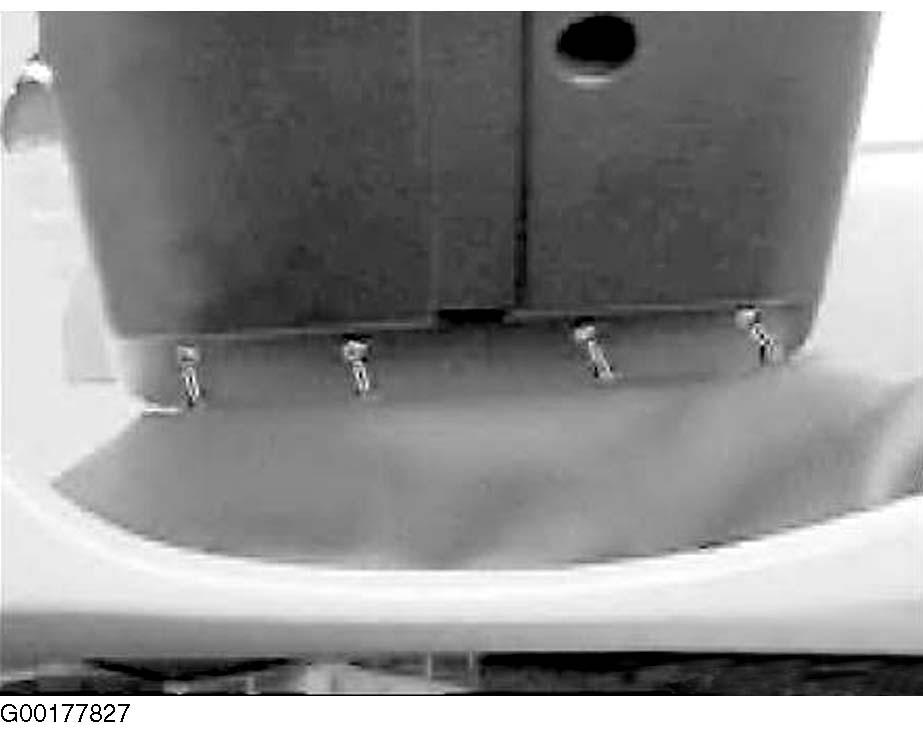

Fig 1: Removing Steering Column Lower Trim

Courtesy of BMW OF NORTH AMERICA, INC.

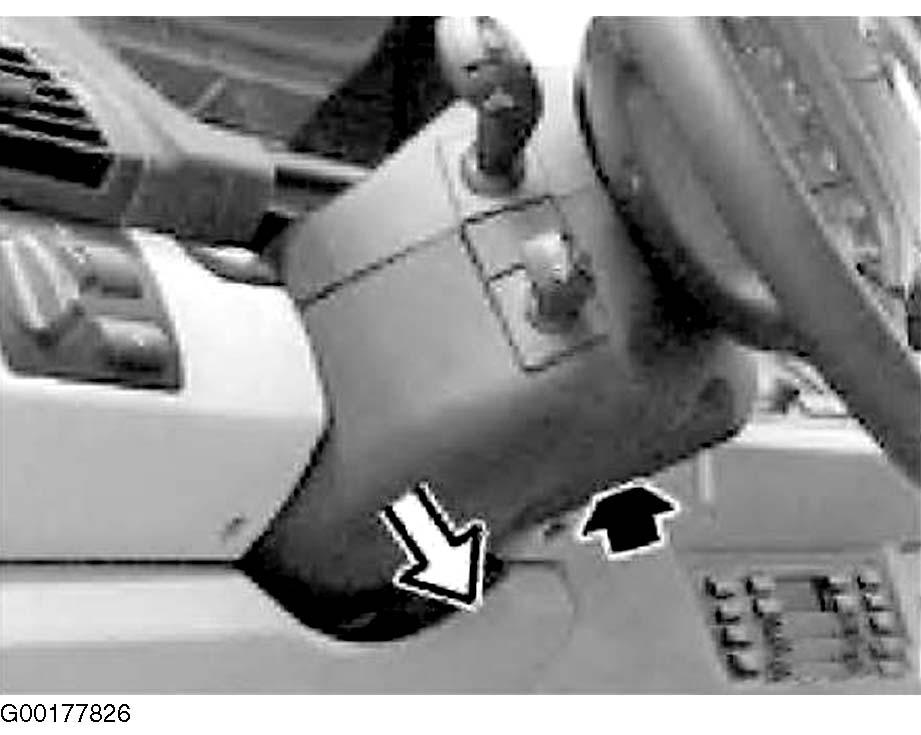

Fig 2: Clipping Leather Boot Into Trim

Courtesy of BMW OF NORTH AMERICA, INC.
