Removal & Installation

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew and remove splash. See REINFORCEMENT CROSS BRACE
  2. Remove trim panel for pedal assembly. See TRIM PANEL FOR PEDAL ASSEMBLY .
  3. Remove steering spindle lower section. See STEERING SPINDLE LOWER SECTION .
  4. Press crash disk (2) off crash sleeve (1). Lift crash sleeve (1) out of groove of steering spindle upper section and pull down. See Fig 1.
  5. Pull upper section of steering spindle towards interior. See Figure.
  6. Remove holder for accelerator pedal. See Fig 2.
  7. Remove sleeve from bulkhead. See Fig 3.
  8. To install, reverse removal procedure. Make sure sleeve is correctly seated in opening of bulkhead.
  9. Tighten holder for accelerator pedal to specification. See TORQUE SPECIFICATIONS .
  10. Replace crash sleeve (1). See Fig 1.

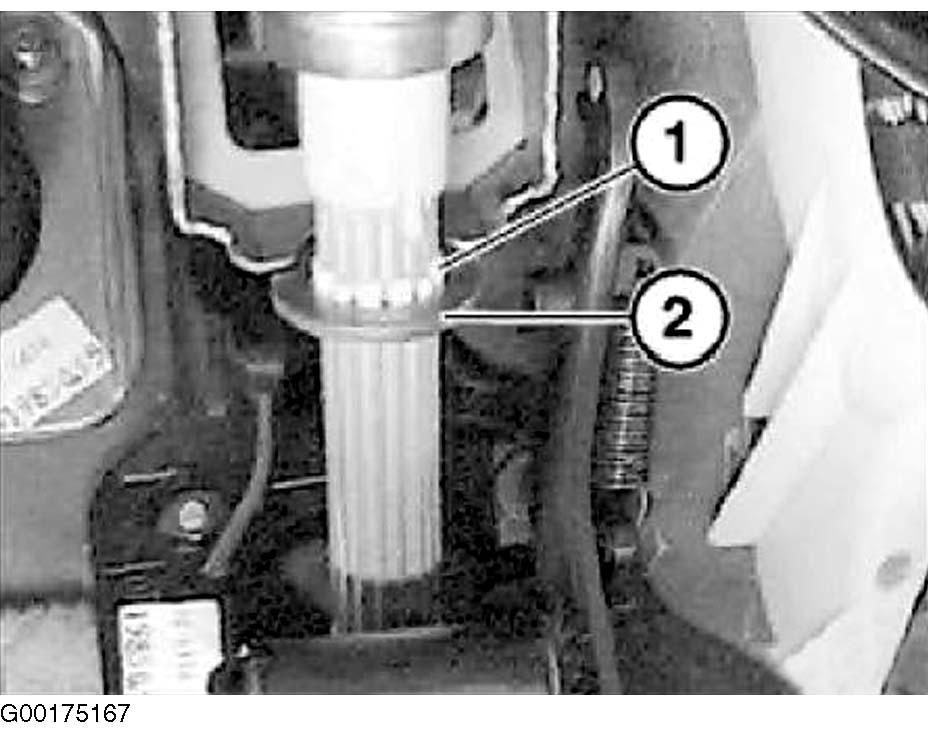

Fig 1: Removing Crash Sleeve
G00175167Courtesy of BMW OF NORTH AMERICA, INC.

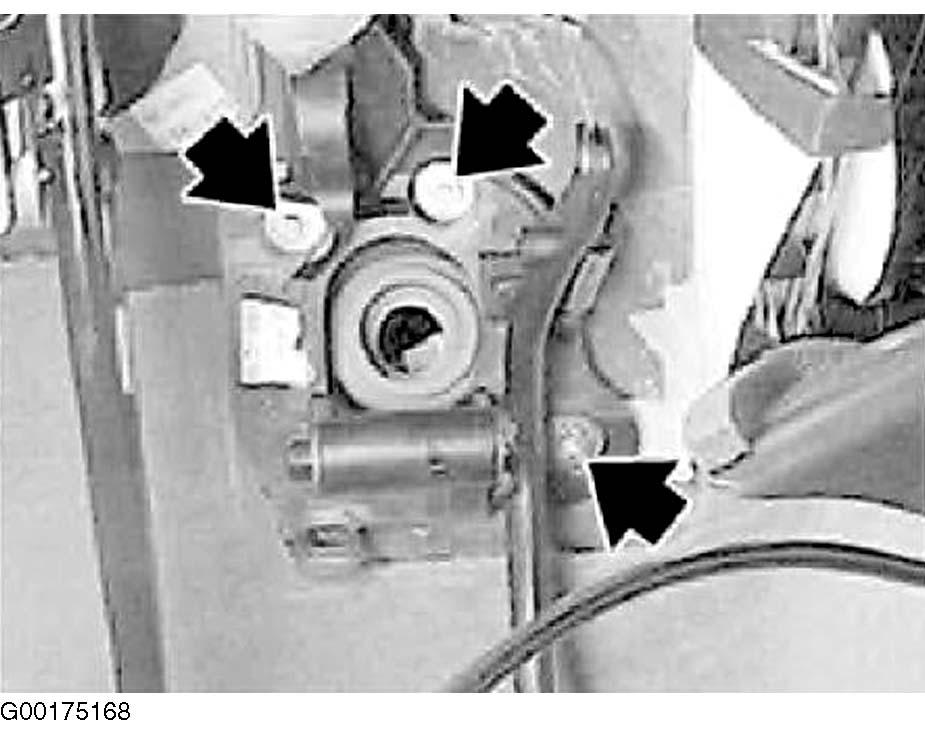

Fig 2: Locating Holder For Accelerator Pedal
G00175168Courtesy of BMW OF NORTH AMERICA, INC.

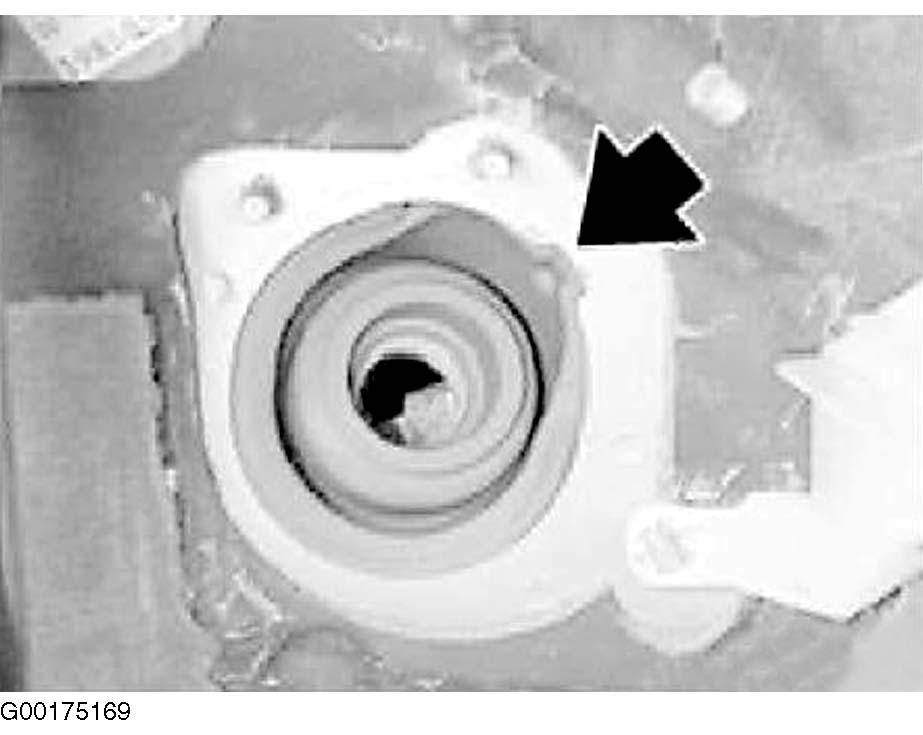

Fig 3: Removing Sleeve From Bulkhead
G00175169Courtesy of BMW OF NORTH AMERICA, INC.
