Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 BMW 745i, 2004 BMW 745Li, 2003 BMW 745i, 2003 BMW 745Li, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move steering column to "bottom" and "extended" position.
  2. Remove front panel of steering column cover. See STEERING COLUMN COVER (FRONT PANEL)  .
  3. Release screw. Pull off trim with a firm jerk downwards. See Fig 1 .
  4. To install, reverse removal procedure. Locks (2) must engage in hooks (1). See Fig 2 .
  5. Fit new expanding nut.

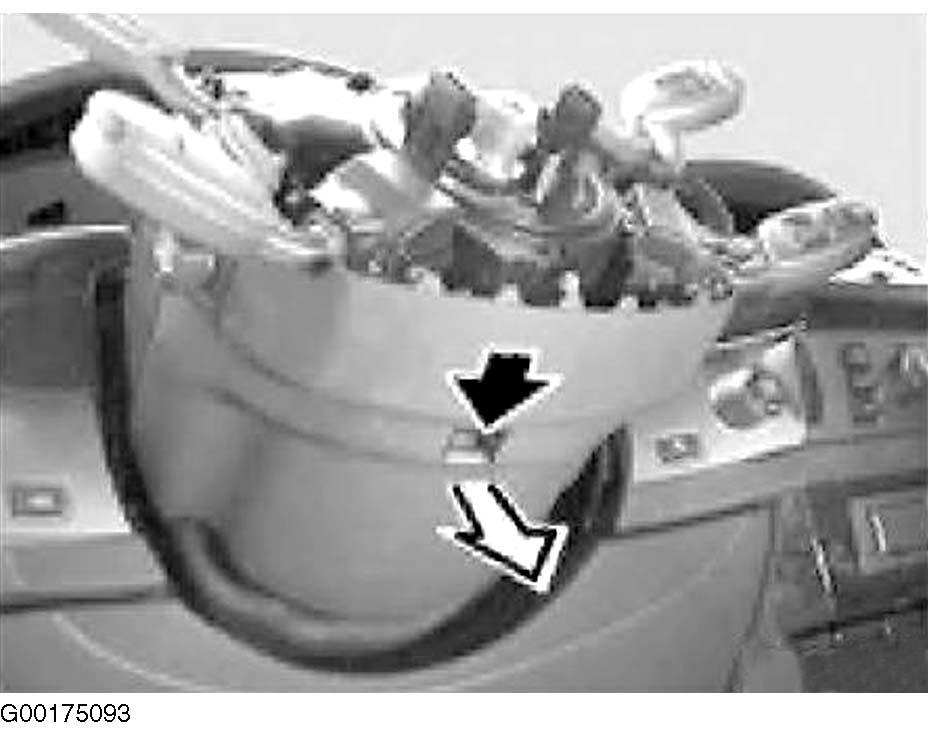

Fig 1: Removing Lower Section Of Steering Column Cover
G00175093Courtesy of BMW OF NORTH AMERICA, INC.

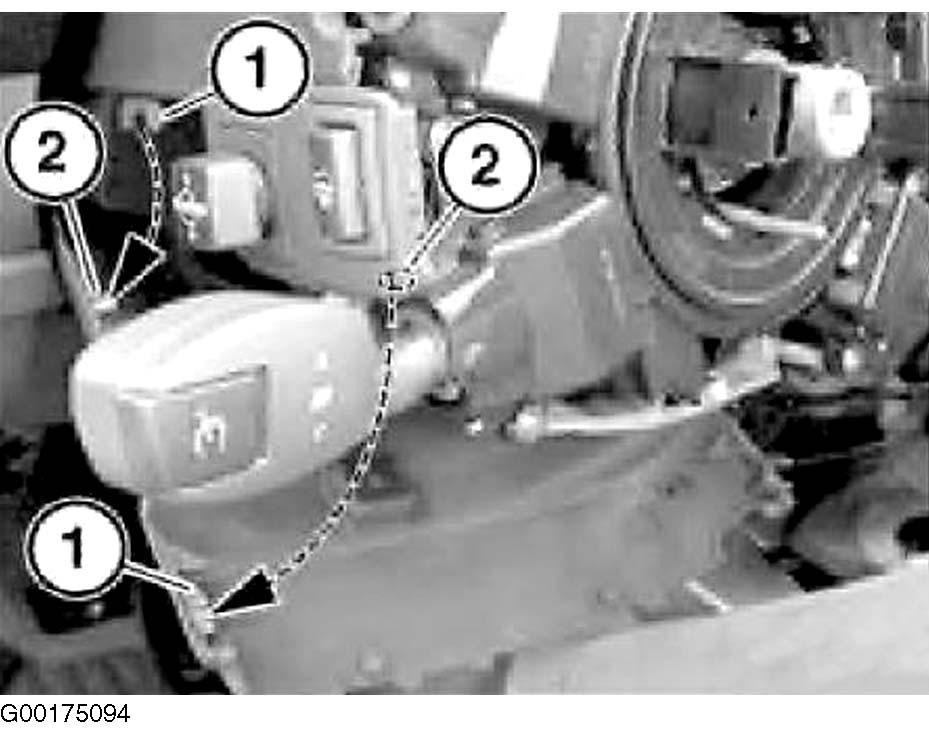

Fig 2: Locating Locks
G00175094Courtesy of BMW OF NORTH AMERICA, INC.
