65 12 070 Removing and installing/replacing amplifier (hi-fi system)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Take out trunk floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM(S) .
Disconnect and cover battery negative lead. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

NOTE: If necessary, remove tool bag.

Unscrew bolt (1).

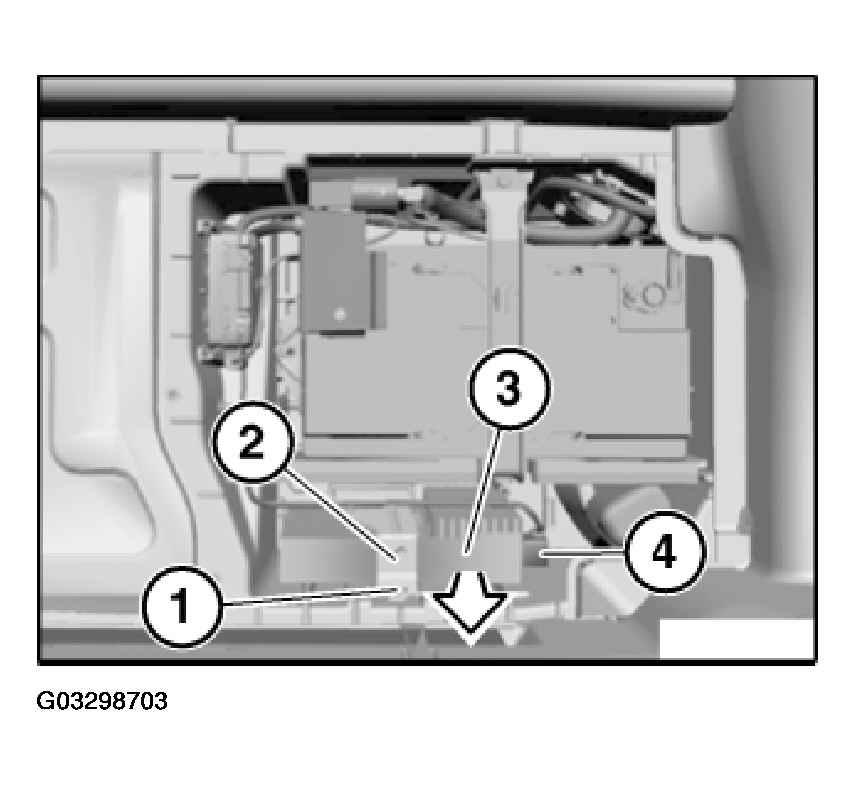

Fig 1: Removing Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

Take off holder (2).

Raise amplifier (3) a little.

Unfasten plug connection (4) and disconnect.

Remove amplifier (3) in direction of arrow.
