65 81 060 Removing and installing/replacing external temperature sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front wheel removed for purposes of clarity.

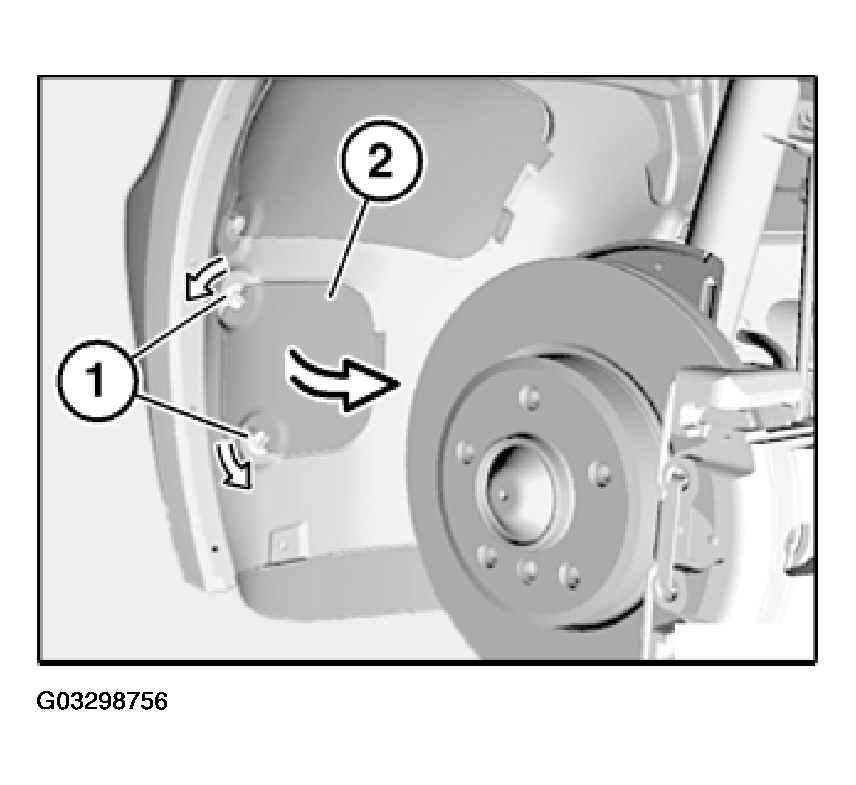

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.

Fig 1: Unlocking Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

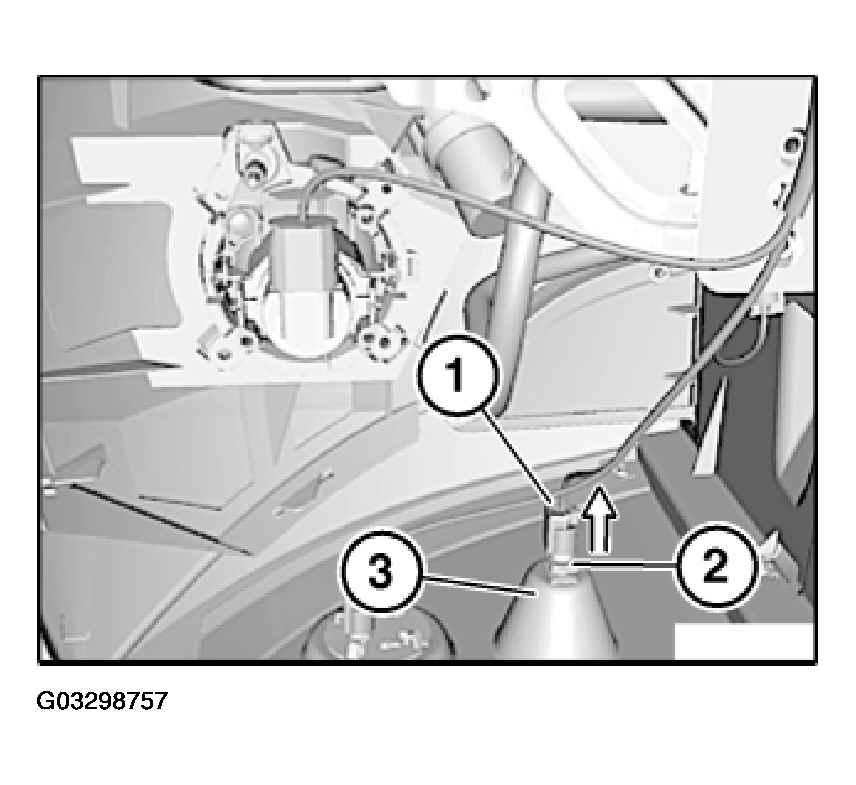

Unlock plug connection (1) and disconnect.

Fig 2: Removing Outside Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip outside temperature sensor (2) in direction of arrow from cover (3).

Installation:

Make sure outside temperature sensor (2) is engaged in cover (3).
