65 11 080 Removing and installing/replacing radio receiver

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove center fresh air grill, refer to 64 22 161 REMOVING AND INSTALLING/REPLACING CENTER FRESH-AIR GRILL

Release screws (1).

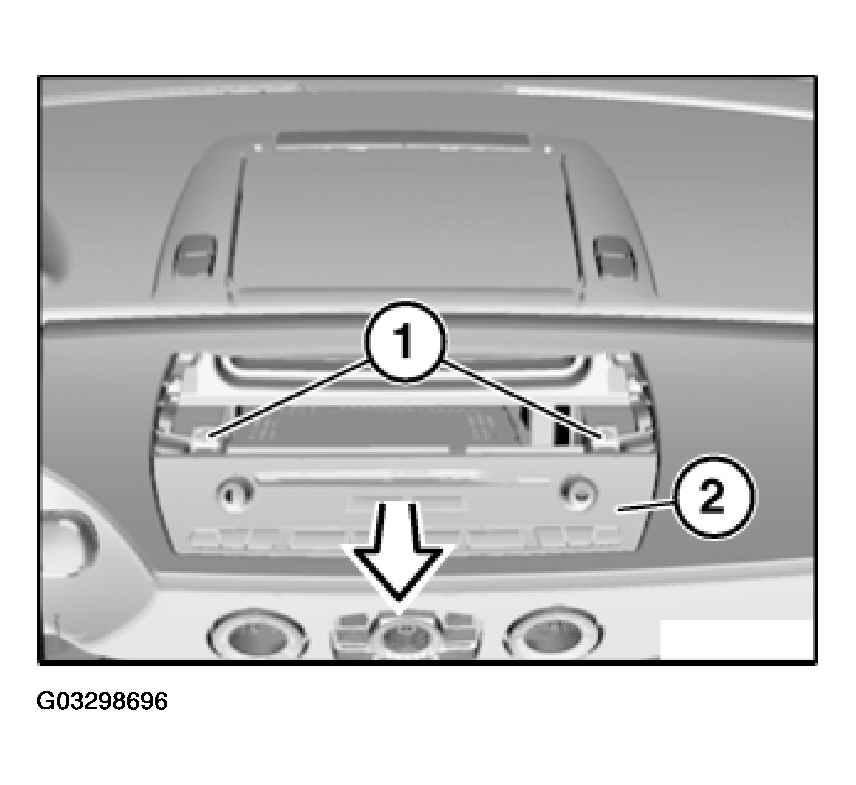

Fig 1: Removing Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out radio receiver (2) in direction of arrow, unlock and disconnect associated plug connections.

Remove radio receiver (2).

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
If necessary, car & key memory
CD "CIP"

Fig 2: Identifying DIS

Courtesy of BMW OF NORTH AMERICA, INC.
