65 20 300 Removing and installing/replacing bumper antenna

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim. Refer to 51 12 156 Removing and installing rear bumper trim .
Partially remove luggage compartment wheel arch trim on left. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

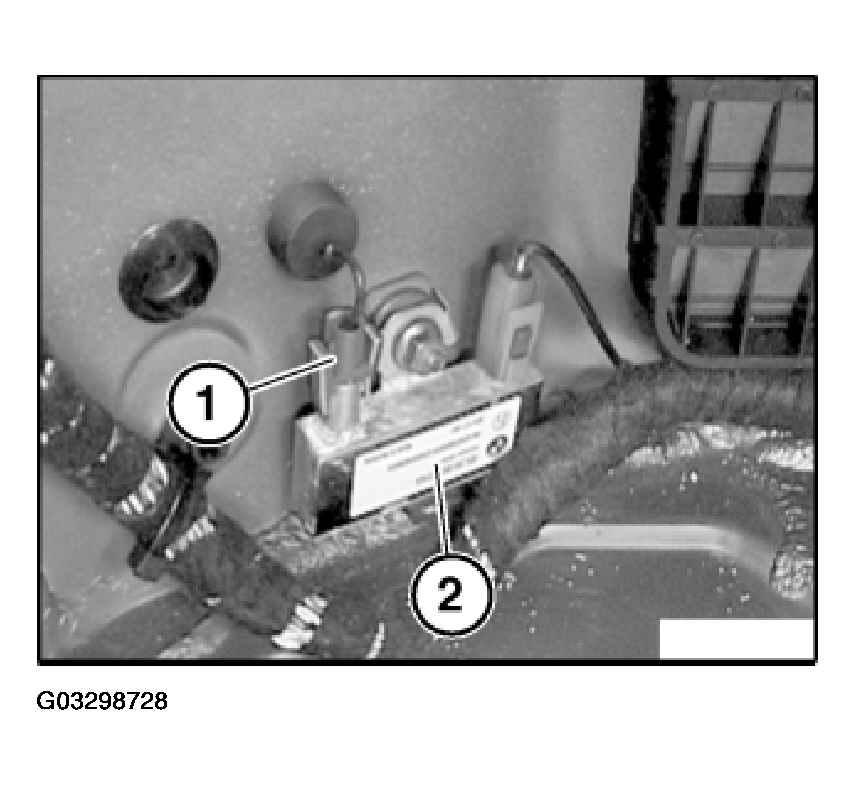

Unlock plug connection (1) on antenna amplifier (2) and disconnect.

Fig 1: Unlocking Plug Connection On Antenna Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

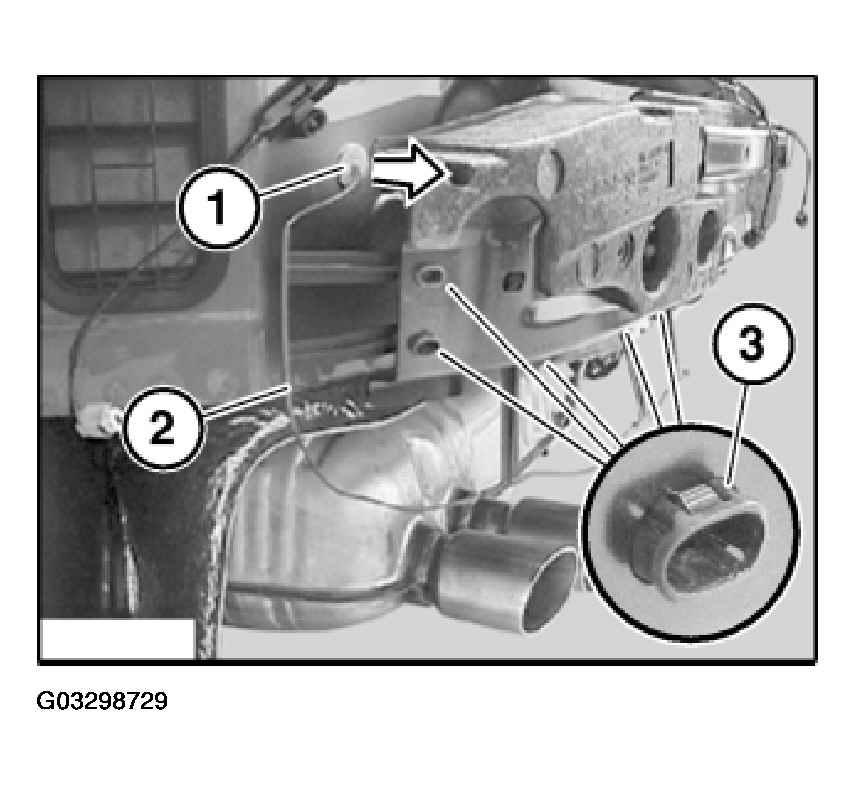

Pull out rubber plug (1) with antenna lead in direction of arrow.

Fig 2: Removing Bumper Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip bumper antenna (2) at points (3) and remove.
