65 20 115 Removing and installing/replacing antenna amplifier (FM)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Partially remove left luggage compartment wheel arch trim. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

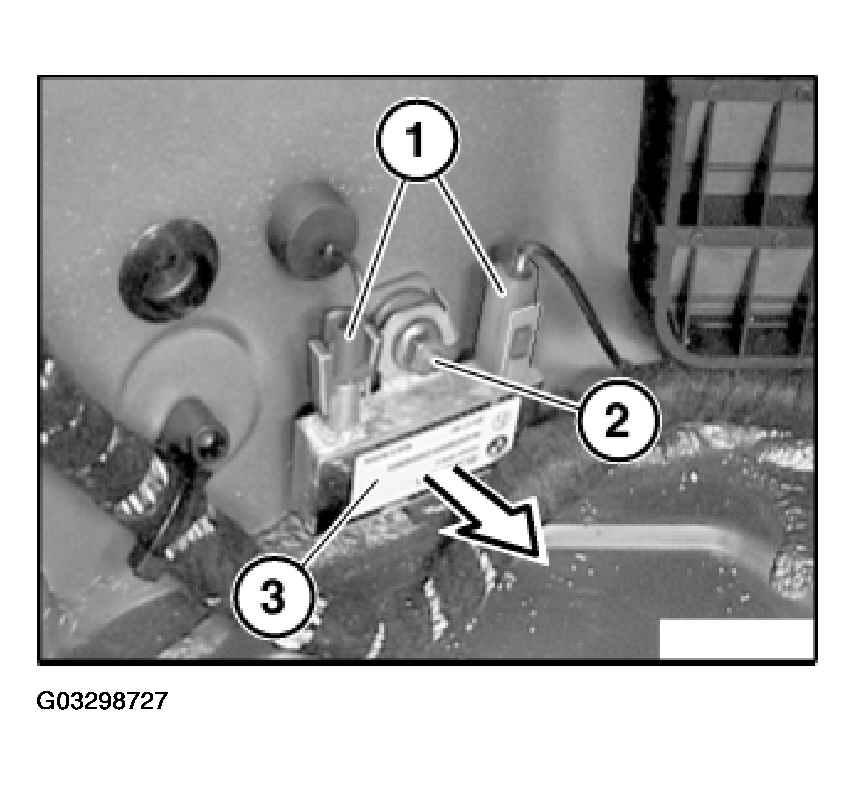

Unlock plug connections (1) and disconnect.
Release nut (2) and remove antenna amplifier (3) in direction of arrow.
