65 20 110 Removing and installing/replacing antenna amplifier (diversity)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment wheel arch trim on left. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

Unlock plug connections (1) and disconnect.

Release screws (2) and remove antenna amplifier (3) with holder (4) in direction of arrow.

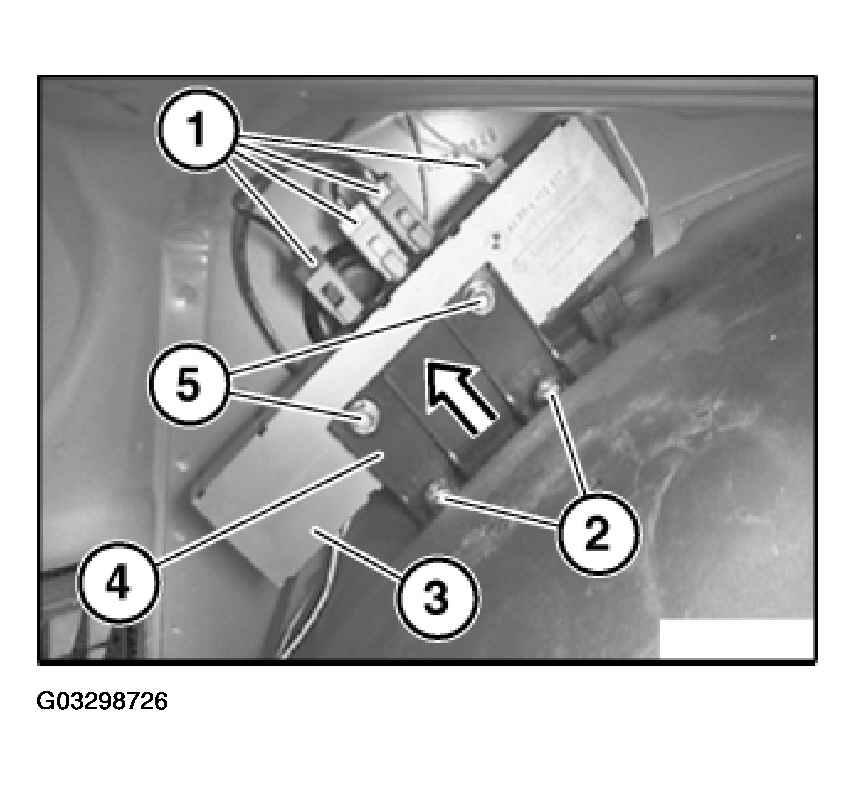

Fig 1: Removing Antenna Amplifier With Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (5) and remove antenna amplifier (3) from holder (4).
