65 20 055 Removing And Installing/Replacing Antenna Base

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

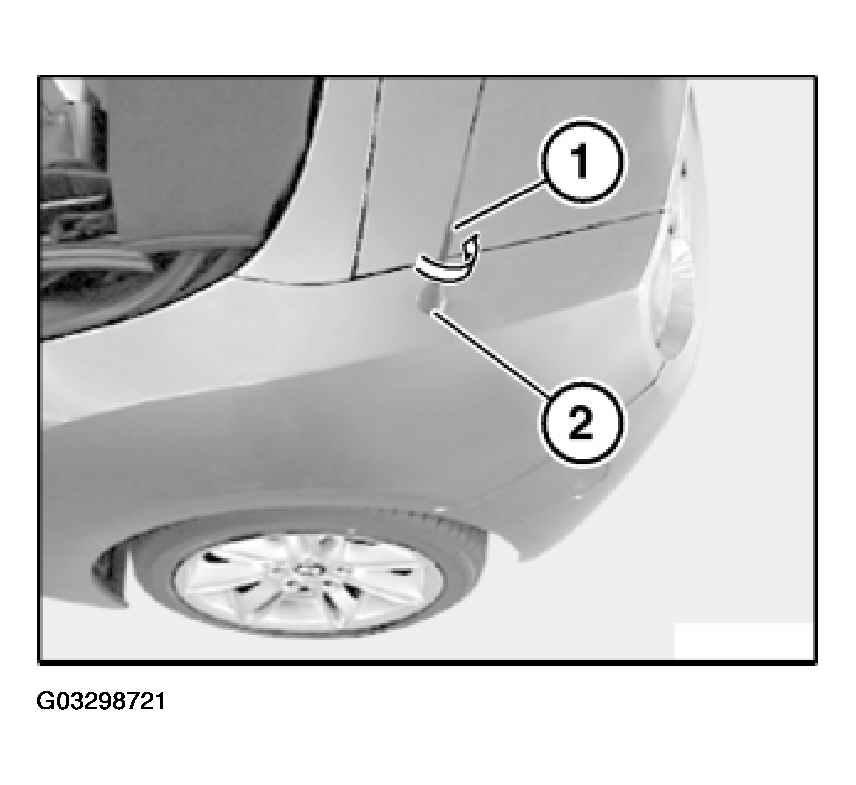

Release antenna rod (1) in direction of arrow and remove from antenna base (2).

Fig 1: Removing Antenna Rod

G03298721

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Open trunk lid.

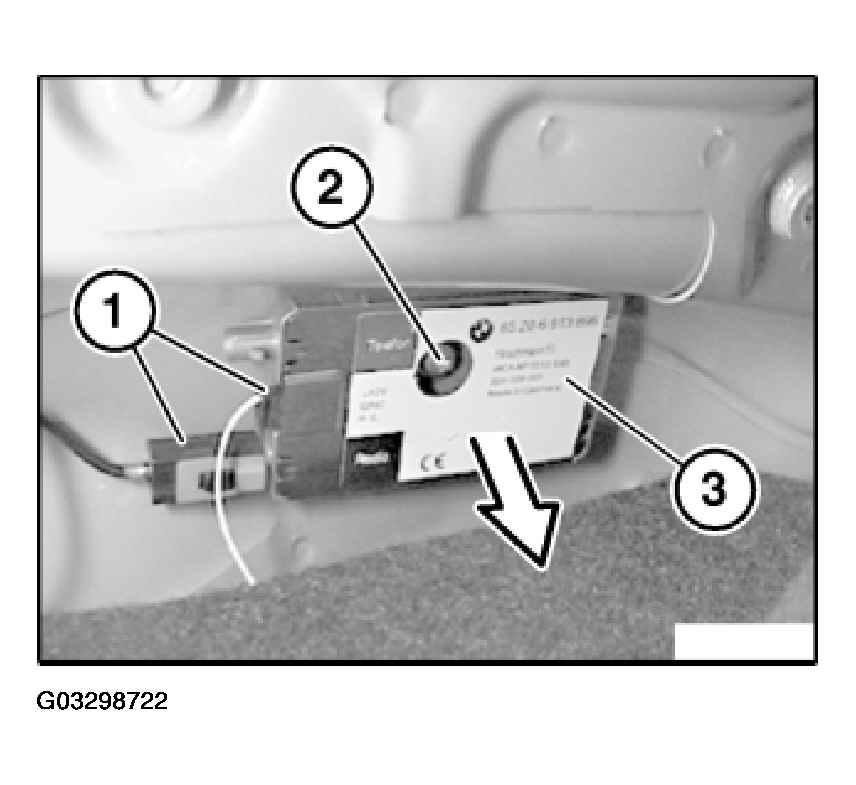

Unlock plug connections (1) and disconnect.

Fig 2: Removing Antenna Amplifier

G03298722

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2) and remove antenna amplifier (3) downwards.

Installation:

Tightening torque 65 20 1AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES .

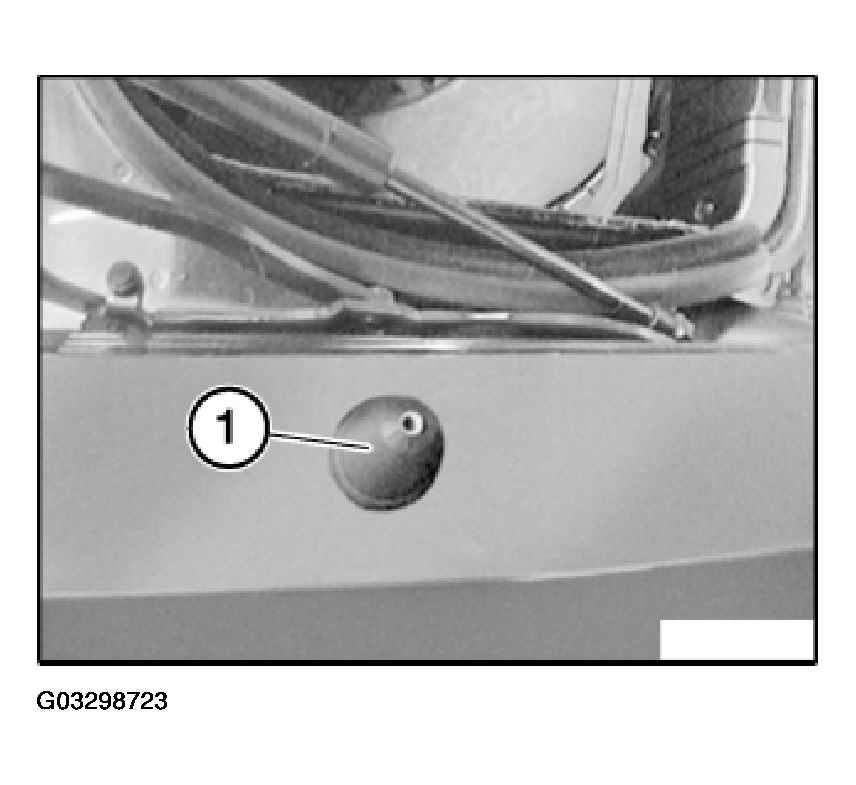

Remove antenna base (1) towards top.

Fig 3: Removing Antenna Base

G03298723

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

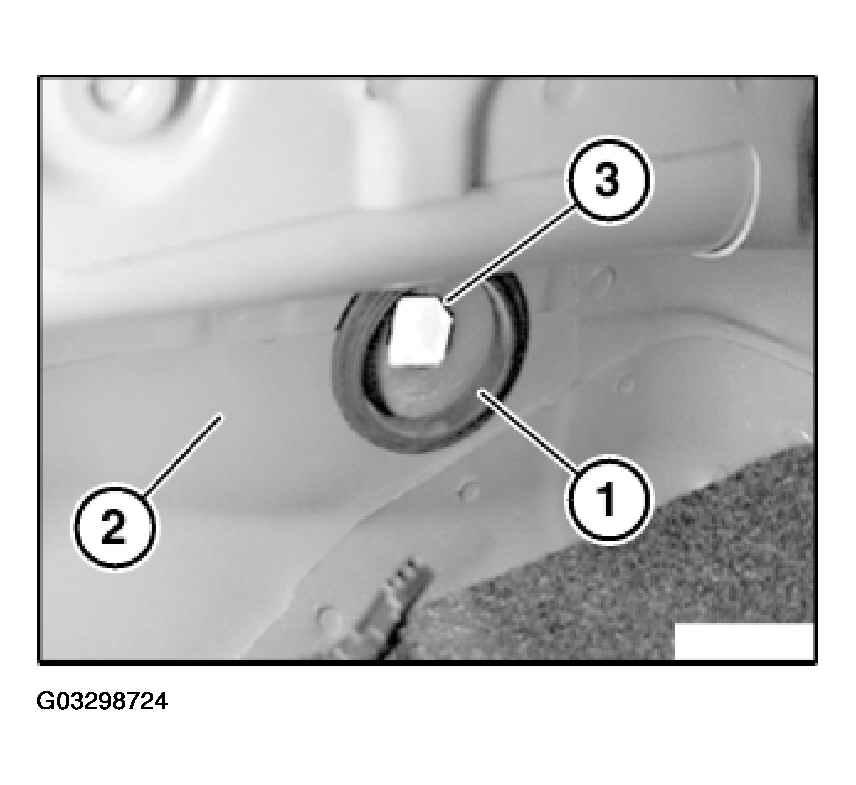

Make sure rubber grommet (1) is correctly seated on all-round flange of side section (2).

Fig 4: Installing Rubber Grommet

G03298724

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace rubber grommet.

Antenna base is secured by chamfer (3) against incorrect installation.

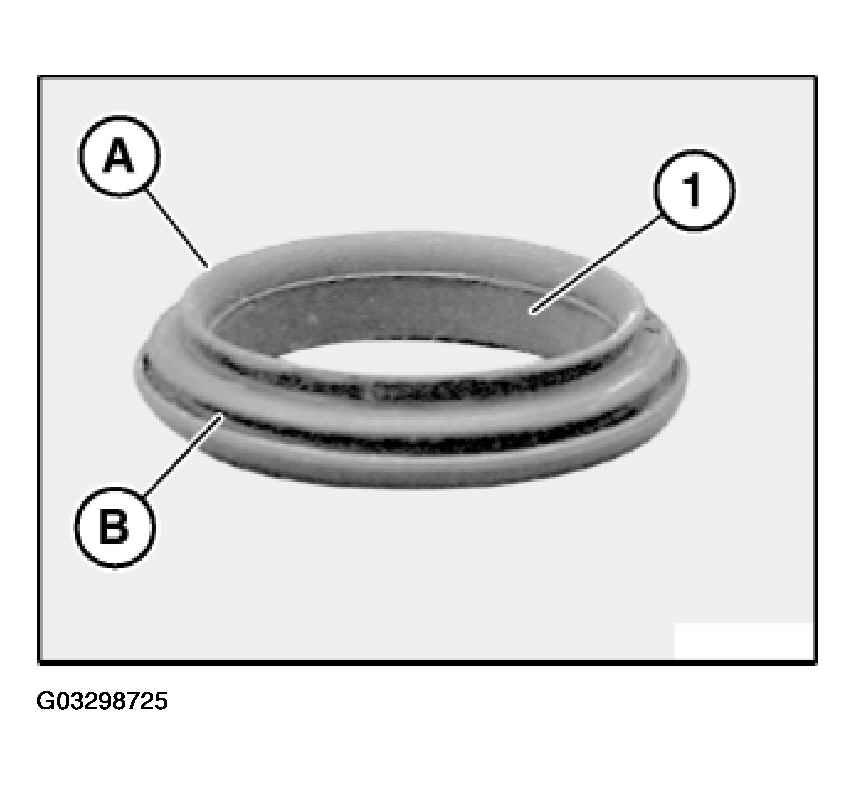

Observe installation position of rubber grommet (1):

A: Sealing lip, top
B: Mounting for rabbet of side section

Fig 5: Identifying Position Of Rubber Grommet
Courtesy of BMW OF NORTH AMERICA, INC.
