65 77 740 Removing and installing (replacing) left front door sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note AIRBAG safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS .
Incorrect handling can activate AIRBAG and cause injury.

NOTE: Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove front left door trim. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

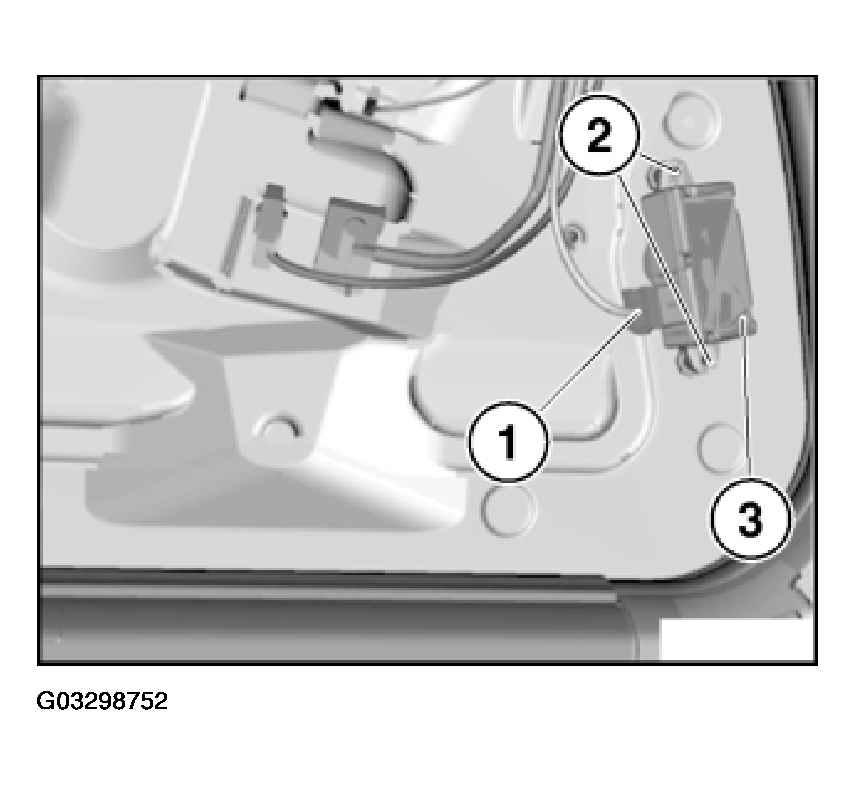

Unfasten plug connection (1) and disconnect.

Fig 1: Removing Front Door Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove front door sensor (3).

Installation:

Tightening torque 65 77 7AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES .

Installation:

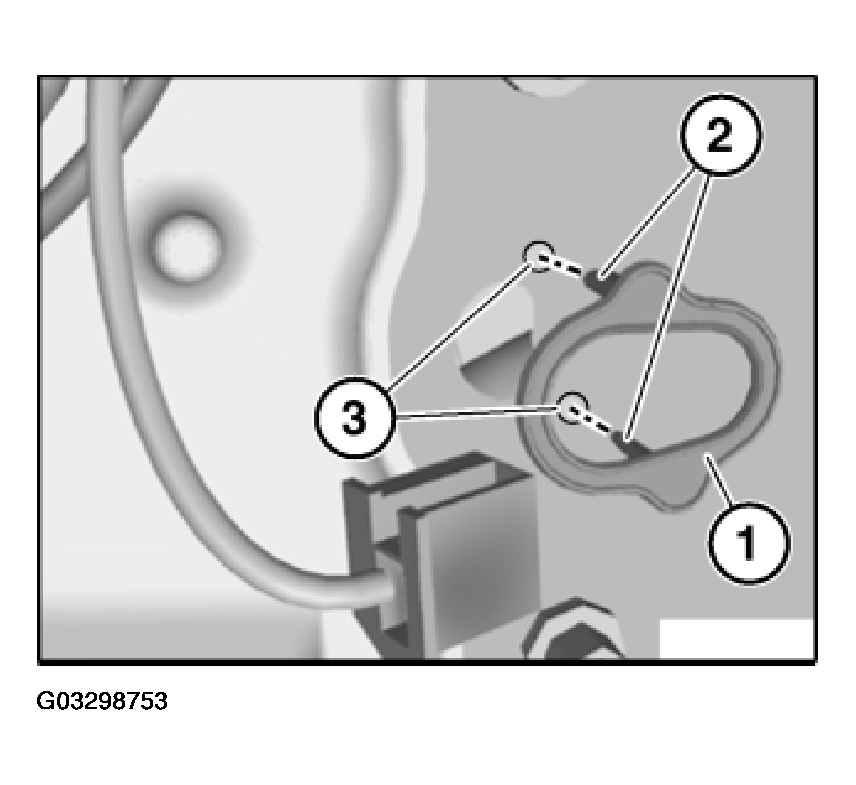

Make sure front door sensor seal (1) is correctly seated. Pins (2) must be exactly seated in mountings (3).

Fig 2: Identifying Front Door Sensor Seal

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace front door sensor seal (1).

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
If necessary, car & key memory
CD "CIP"

Fig 3: Identifying DIS
Courtesy of BMW OF NORTH AMERICA, INC.
