65 77 720 Removing and installing (replacing) left B-pillar sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note AIRBAG safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS .
Incorrect handling can activate AIRBAG and cause injury.

NOTE: Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove front left entrance cover strip. Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .
Remove rear left lower side trim section. Refer to 51 43 015 Removing and installing/replacing rear left or right lower side trim section .

Unlock plug connections (1) and disconnect.

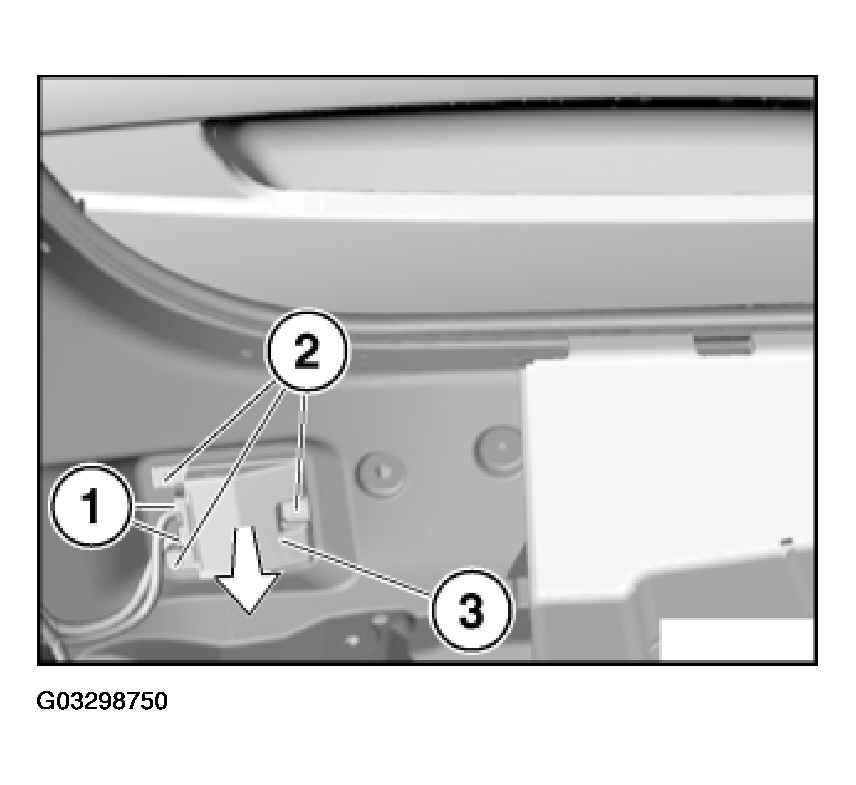

Fig 1: Removing B-Pillar Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove B-pillar sensor (3) in direction of arrow.

Installation:

Tightening torque 65 77 5AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES .

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

Fig 2: Identifying DIS

Courtesy of BMW OF NORTH AMERICA, INC.
