65 77 560 Removing and installing/replacing control electronics for passenger seat occupancy detector

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move seat into most upward position.
Unlock and remove first aid kit under passenger seat.

NOTE: Seat removed for purposes of clarity.

Turn control electronics for passenger seat occupancy detector (3) approx. 45° in direction of arrow and unclip from seat frame.

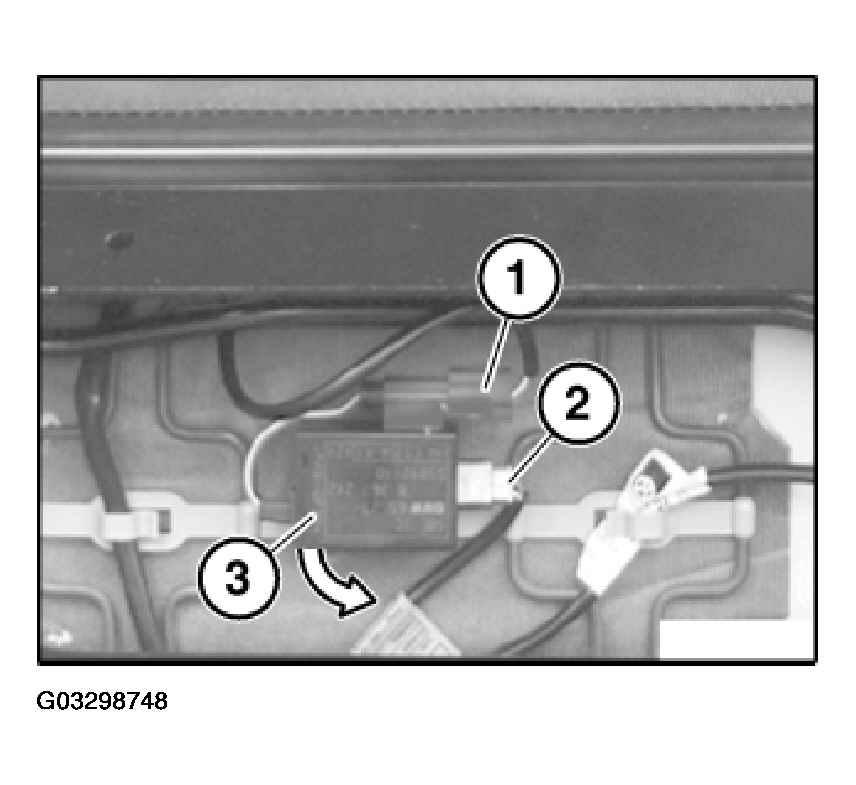

Fig 1: Removing Control Electronics For Passenger Seat Occupancy Detector

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connections (1) and (2), remove control electronics for passenger seat occupancy detector (3).
