65 77 532 Removing and installing/replacing front left sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove radiator cover, refer to REMOVING RADIATOR COVER
Remove front bumper trim, refer to 51 11 156 Removing And Installing Front Bumper Trim

Release screws (1) on deflector (2).

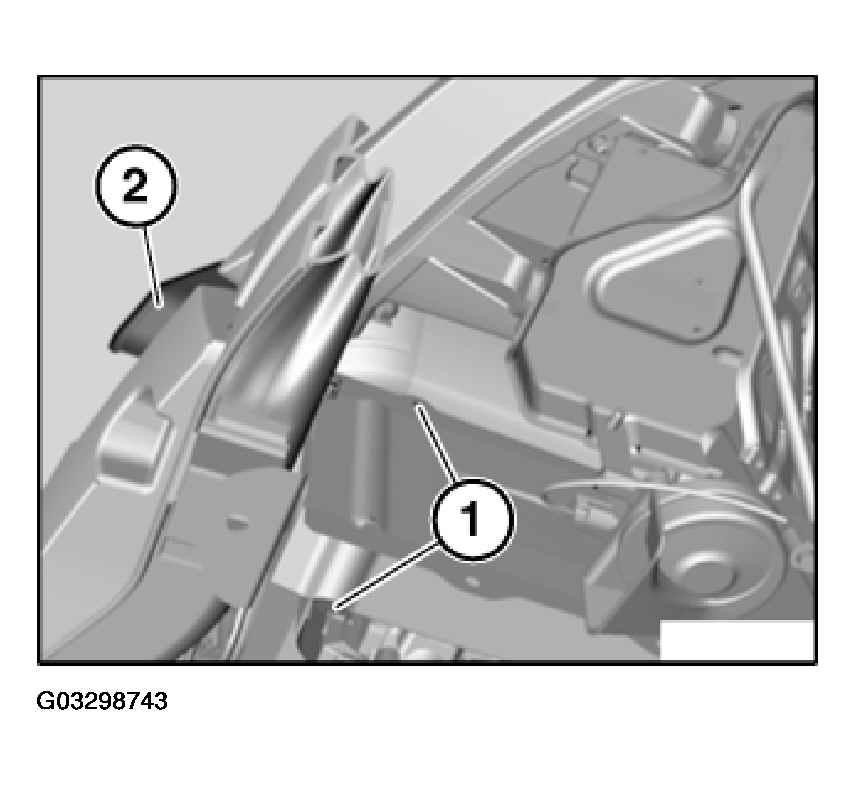

Fig 1: Releasing Screws On Deflector

G03298743

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

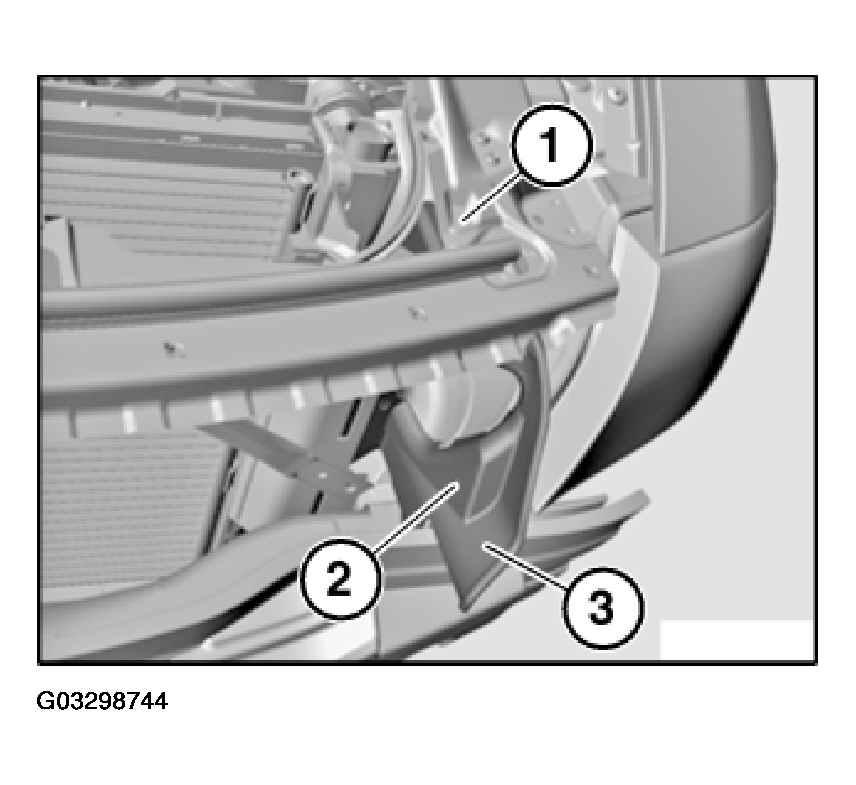

Fig 2: Releasing Expansion Rivet

G03298744

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivet (2).

Lay deflector (3) inwards to one side.

Release expander rivets (1) and remove intake duct (2) towards front.

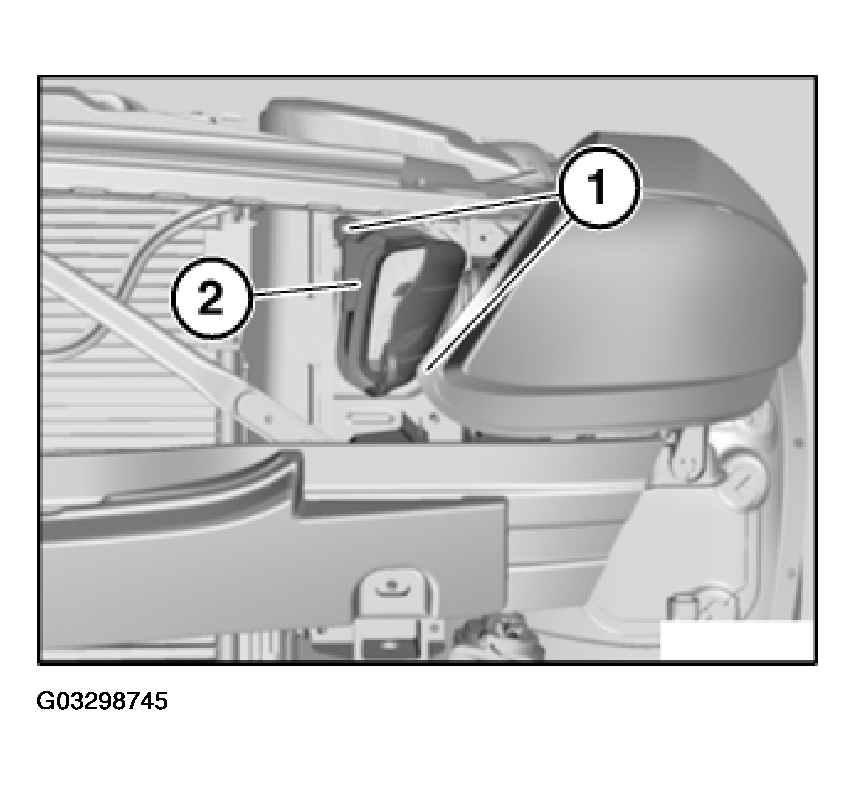

Fig 3: Removing Intake Duct

G03298745

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2), tightening torque 65 77 3AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES .

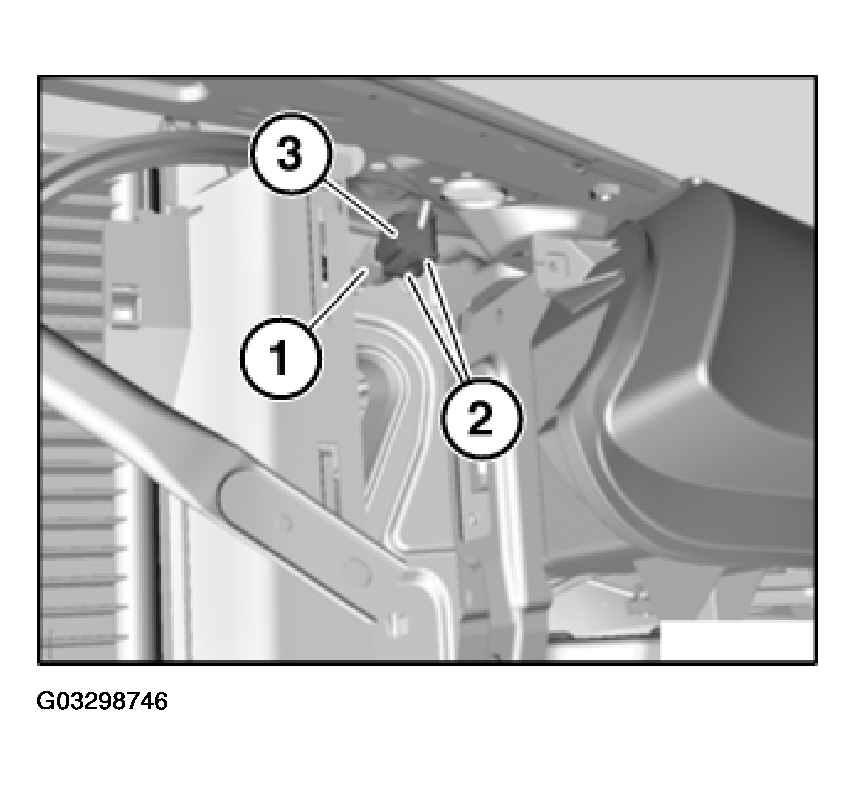

Fig 4: Removing Front Left Sensor

G03298746

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connection (1) and remove front left sensor (3).
