63 21.. Overview of rear light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

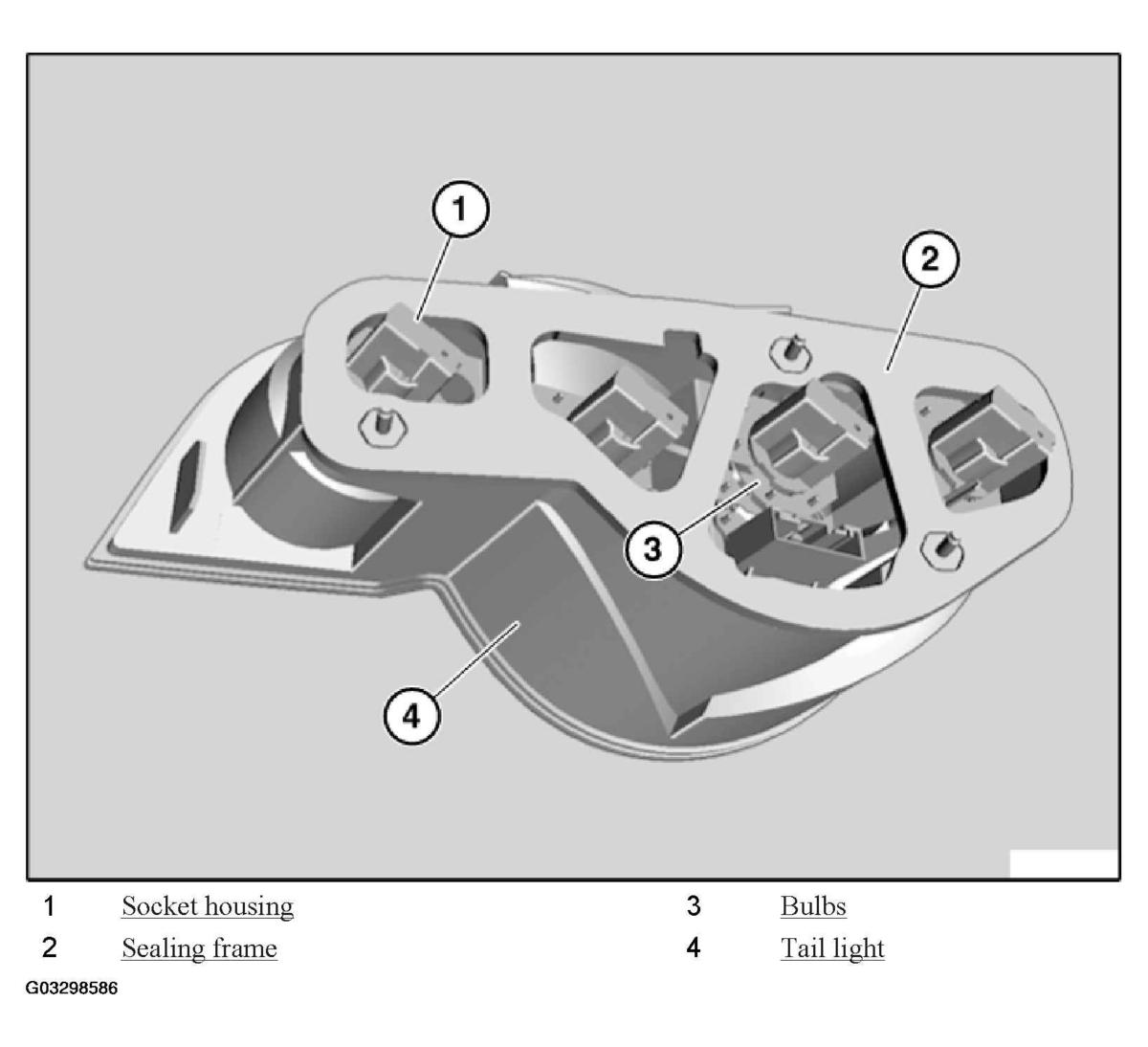

Fig 1: Overviewing Of Rear Light
G03298586Courtesy of BMW OF NORTH AMERICA, INC.
