63 99 076 Replacing lamp for left xenon headlight

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front wheel removed for purposes of clarity.

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.

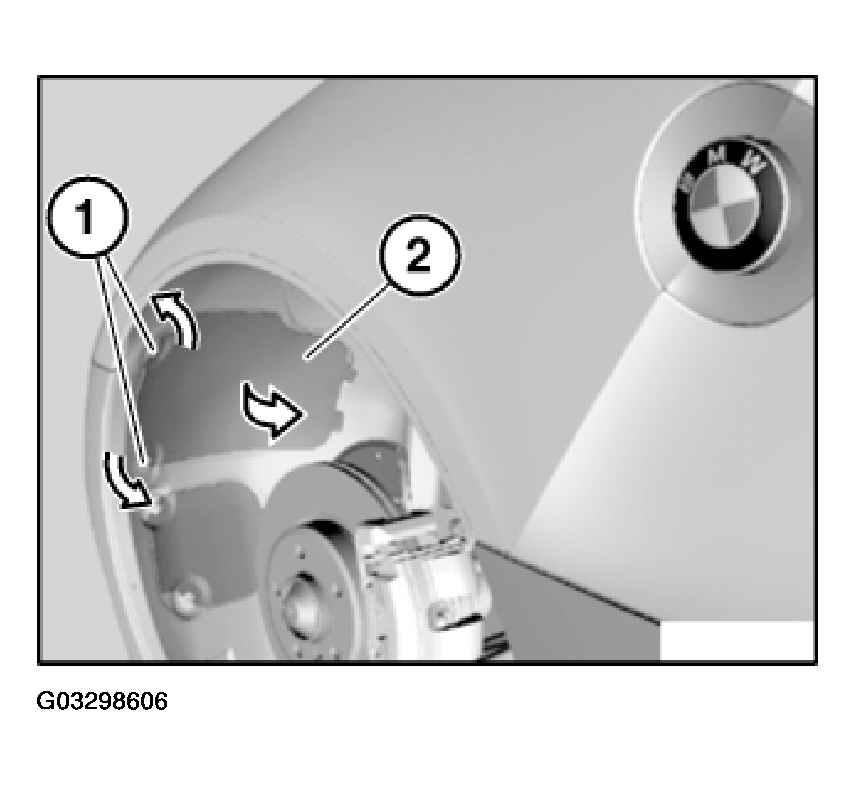

Fig 1: Unlocking Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Lift locking bracket (1) out of mounts (2) and fold down as illustrated.

Feed out cover (3) in direction of arrow and remove.

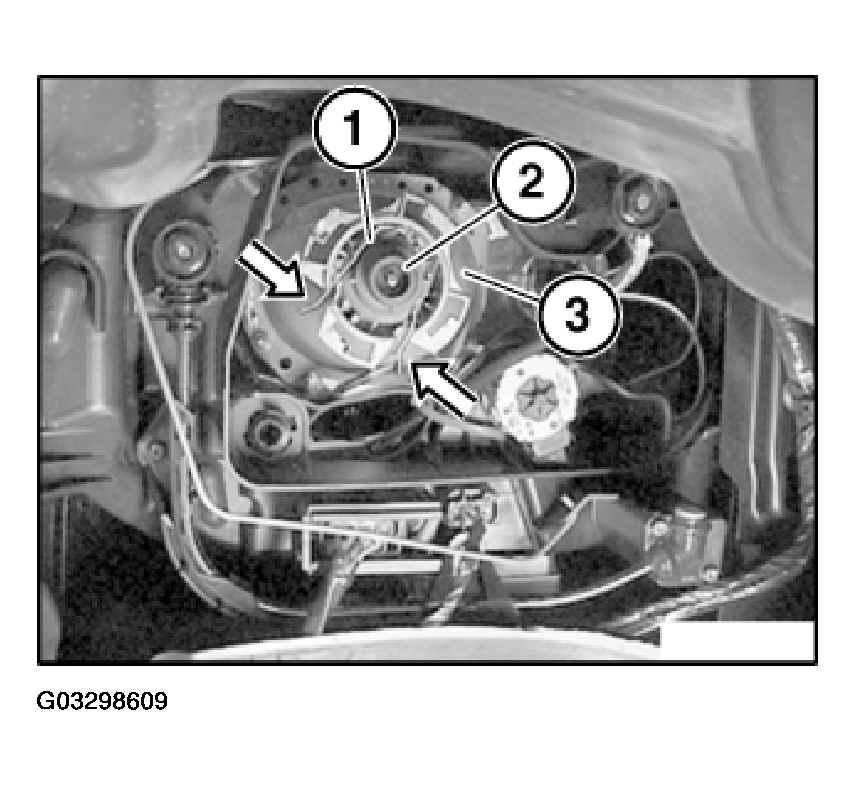

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Turn ignition unit for xenon headlight (2) approx. 30° in counterclockwise direction, detach from headlight (3) and remove.

Installation:

Make sure inner ring is correctly positioned in ignition unit for xenon headlight (2).

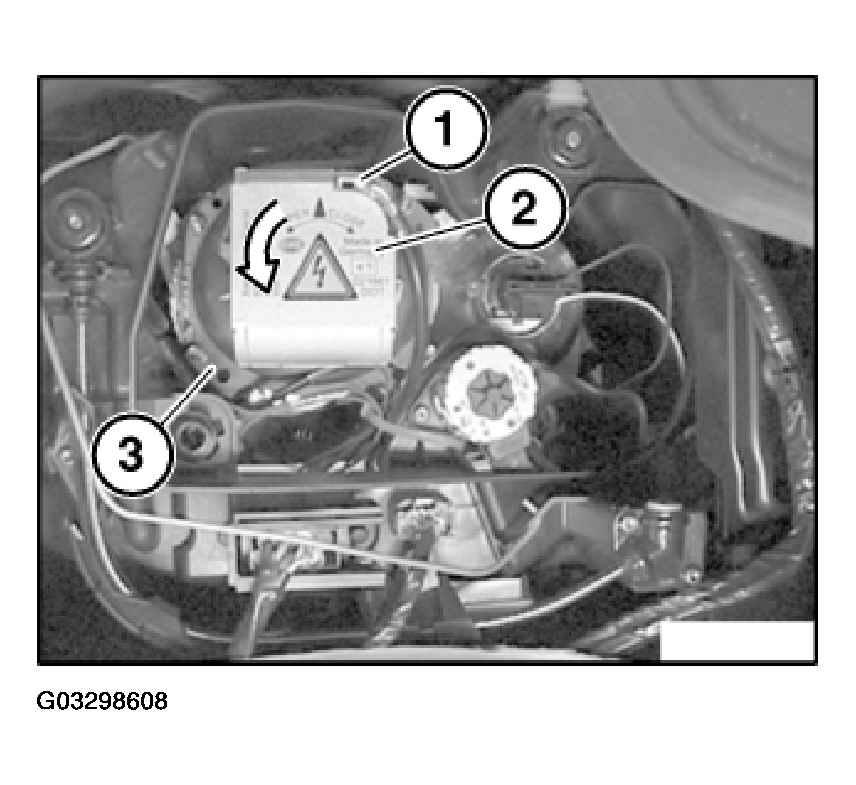

Fig 3: Turning Ignition Unit For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retainer (1) as illustrated on both sides.

Remove lamp for xenon headlight (2) from headlight (3).

Installation:

Note Type Of Bulb .

Make sure lamp for xenon headlight (2) is correctly seated in headlight (3).

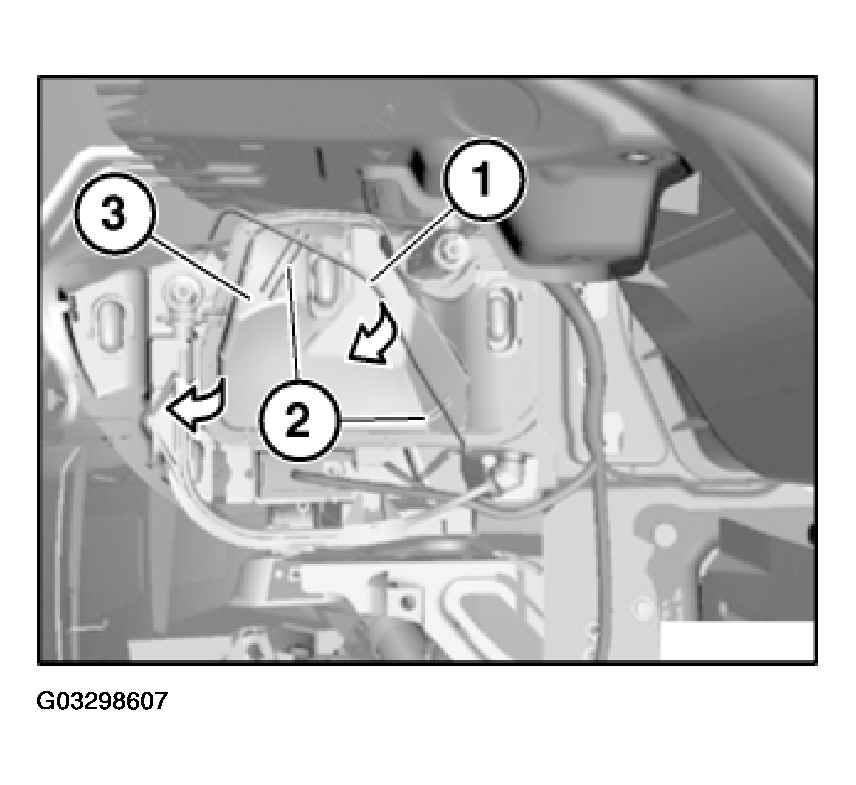

Fig 4: Removing Lamp For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.
