63 99 002 Replacing halogen bulb for high-beam headlight on left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front wheel removed for purposes of clarity.

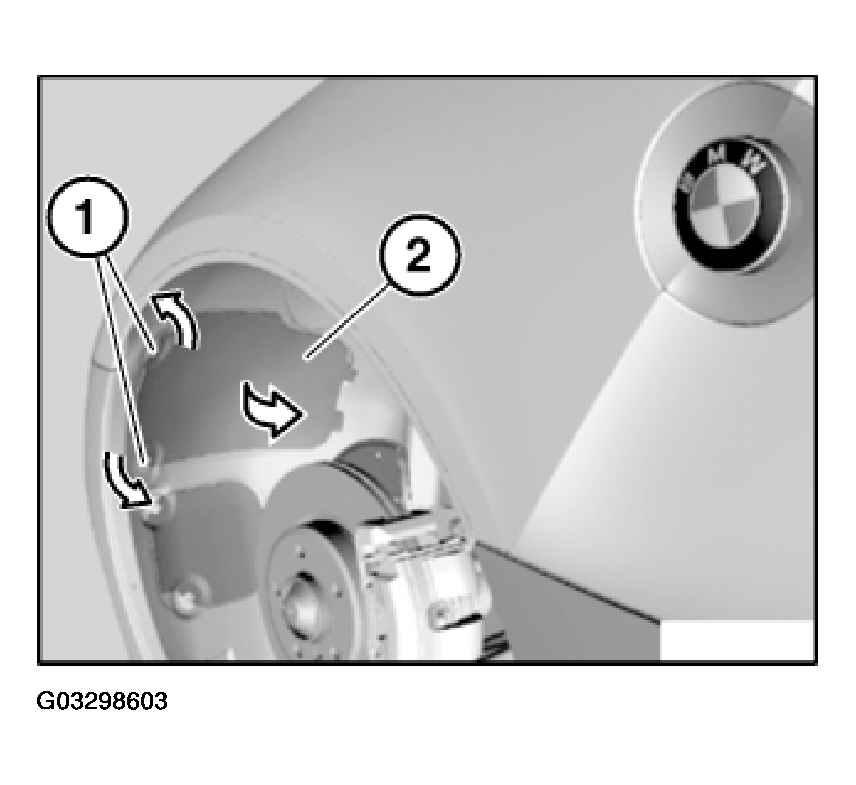

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.

Fig 1: Unlocking Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

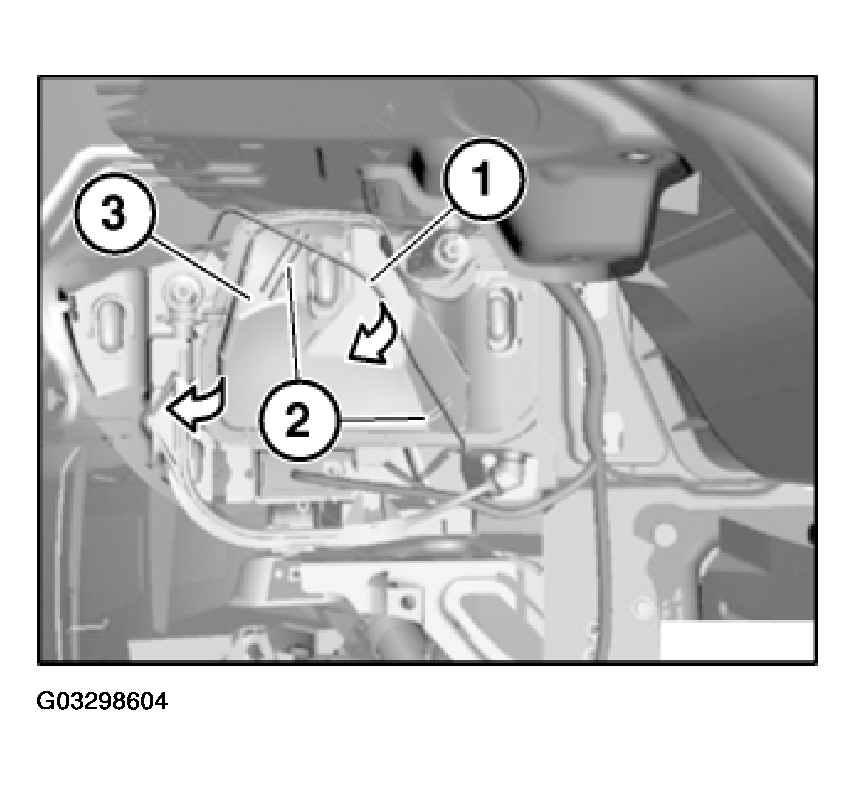

Lift locking bracket (1) out of mounts (2) and fold down as illustrated.

Feed out cover (3) in direction of arrow and remove.

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

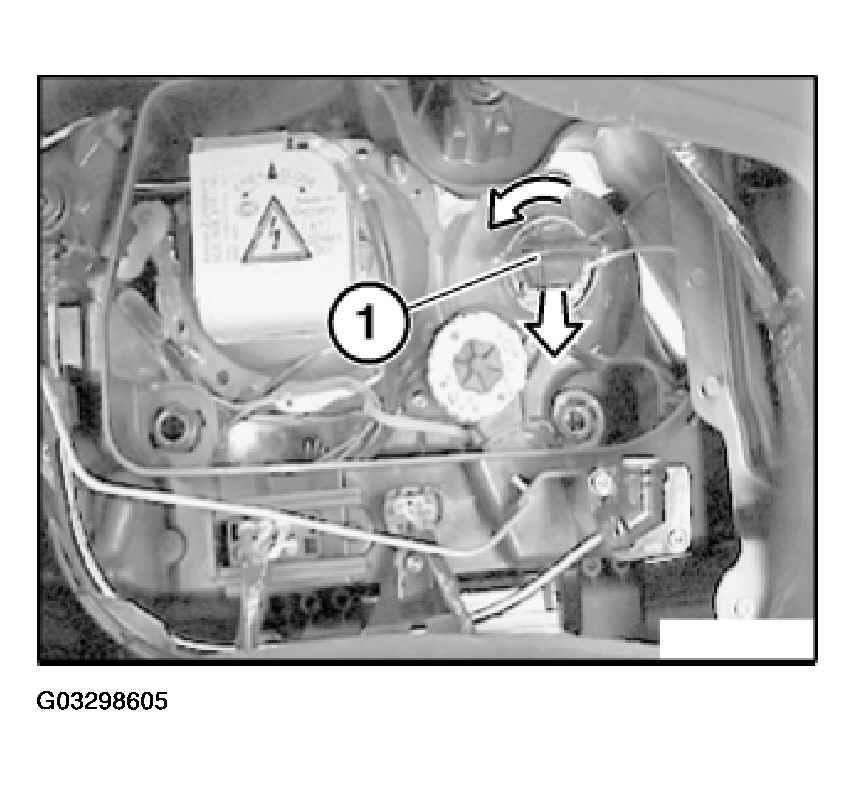

Turn bulb holder (1) in direction of arrow and pull back towards rear.

Remove bulb from bulb holder (1).

Installation:

Note Type Of Bulb .

Fig 3: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
