63 31 080 Removing and installing/replacing luggage compartment light
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

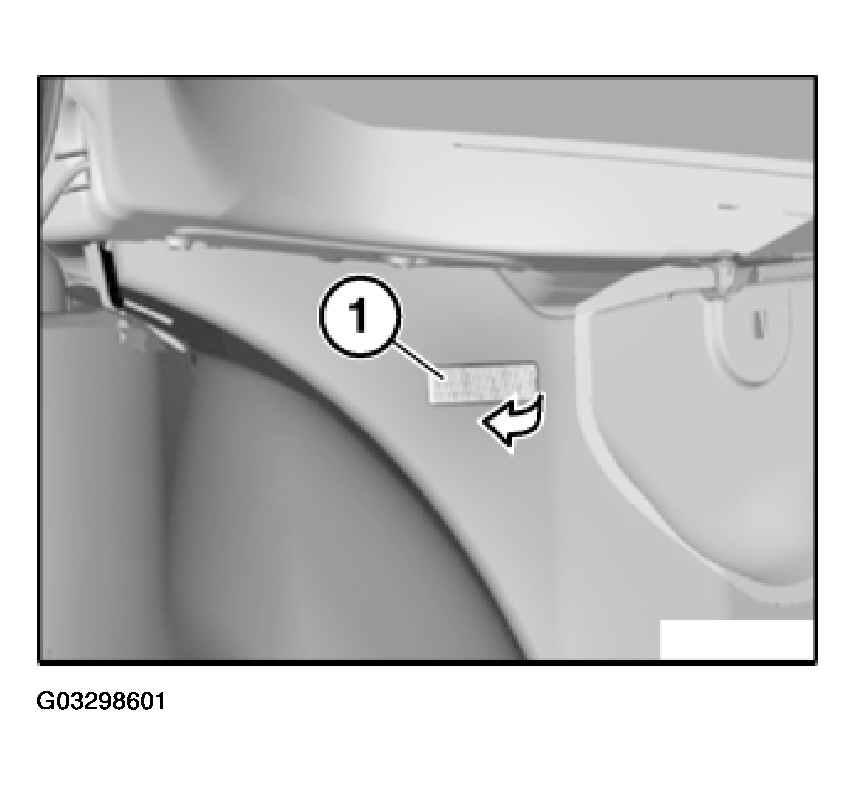

Lever out luggage compartment light (1) in direction of arrow.
Disconnect associated plug connection and remove luggage compartment light (1).
IMPORTANT:
Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights)
.
Replacement:
If necessary, remove bulb.
