63 31 070 Removing and installing/replacing storage box light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

NOTE: Open lid on storage box.

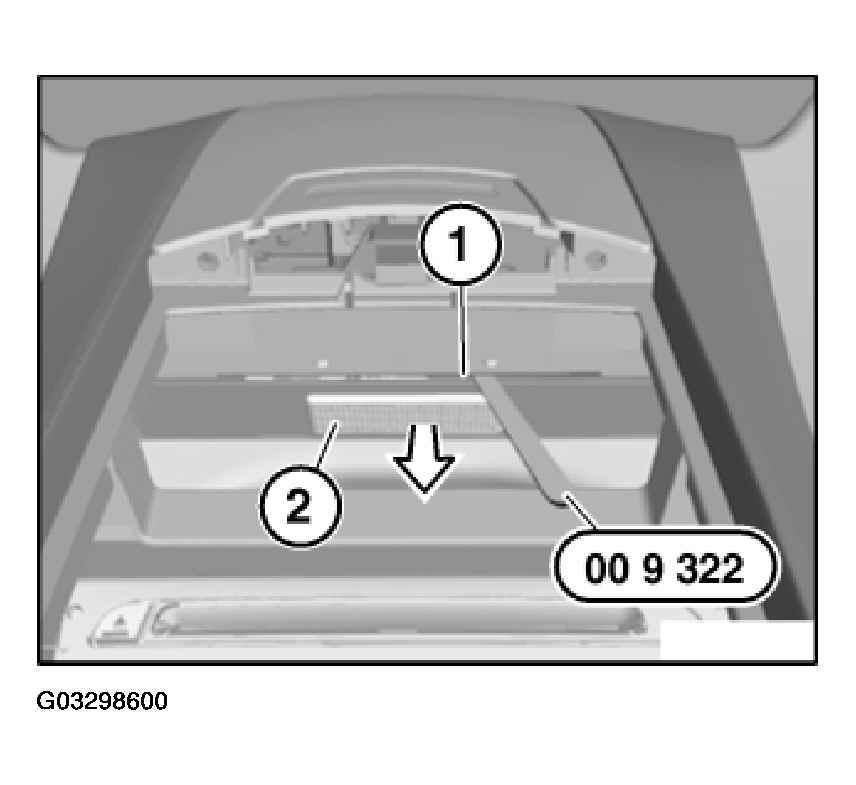

Lever out storage box light (2) in direction of arrow through opening (1) with special tool 00 9 322.

Disconnect associated plug connection and remove storage box light (2).

Fig 1: Disconnecting Associated Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Replacement:

If necessary, remove bulb.
