63 31 020 Removing and installing/replacing footwell light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

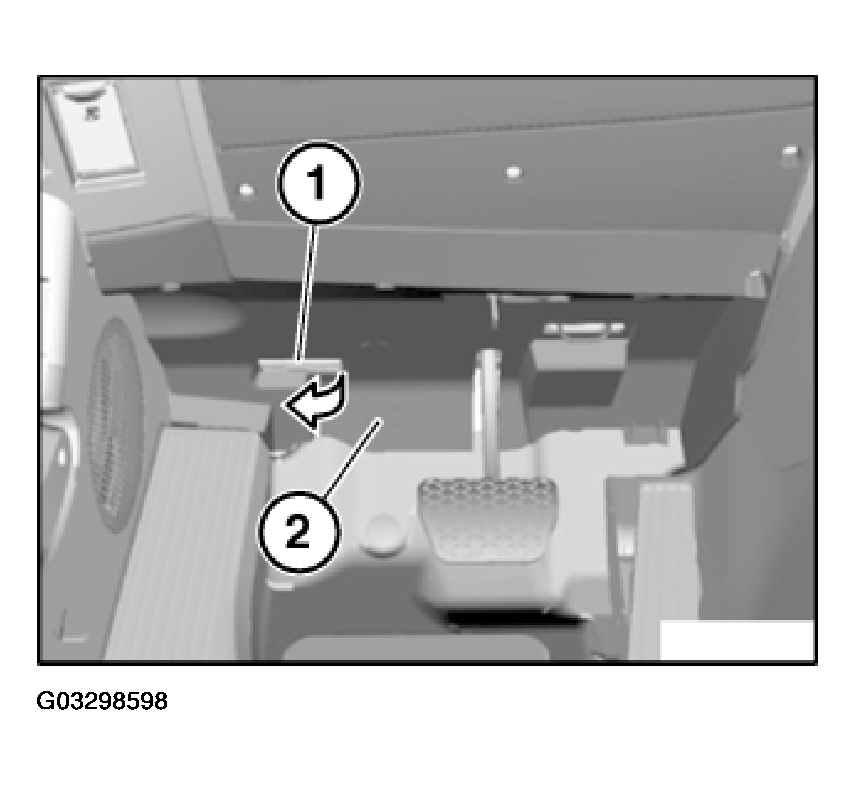

Driver's side:

Unclip footwell light (1) in direction of arrow from panel for pedals (2), disconnect associated plug connection and remove footwell light (1).

Fig 1: Uncliping Footwell Light (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

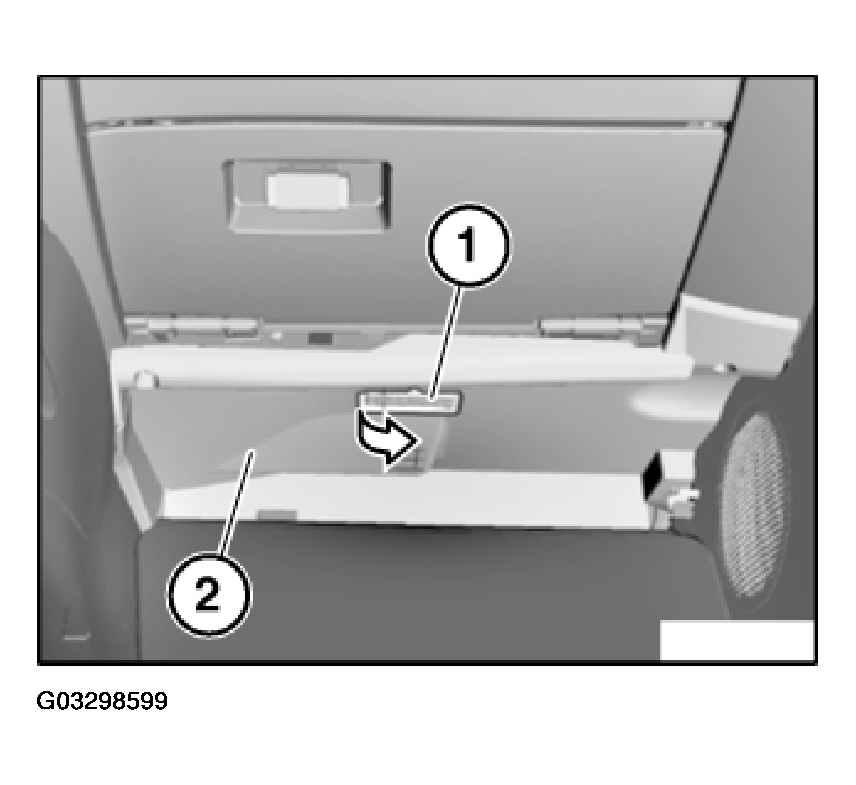

Passenger side:

Unclip footwell light (1) in direction of arrow from bottom right instrument panel trim (2), disconnect associated plug connection and remove footwell light (1).

Fig 2: Uncliping Footwell Light (2 of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions for handling light bulbs (exterior lights) .

Replacement:

If necessary, remove bulb.
