63 12 870 Replacing ignition unit for left xenon headlight

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front wheel removed for purposes of clarity.

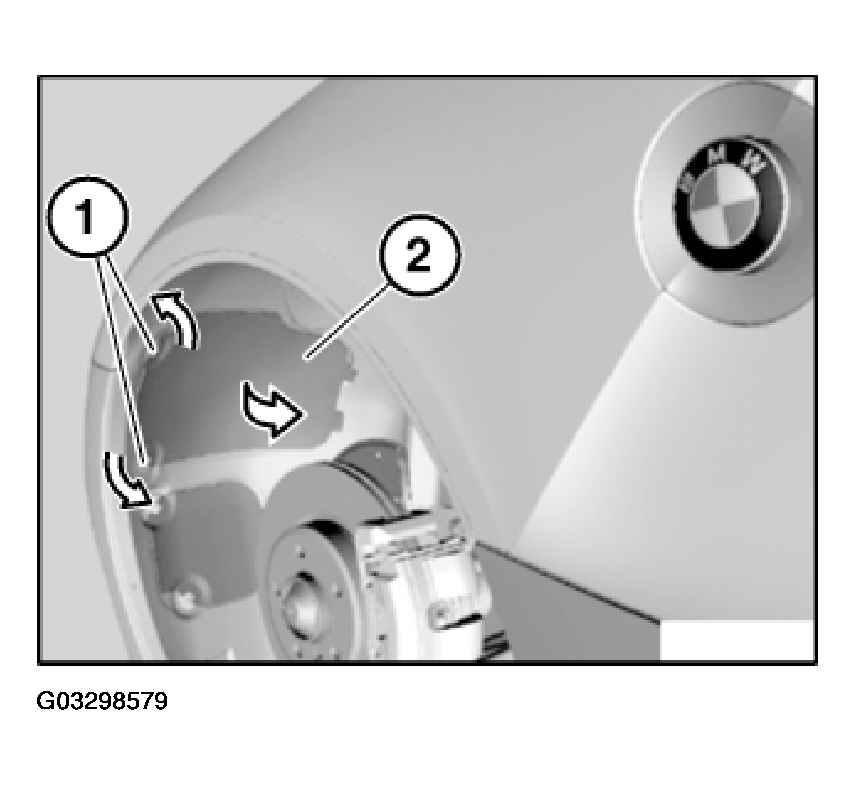

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.

Fig 1: Unlocking Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

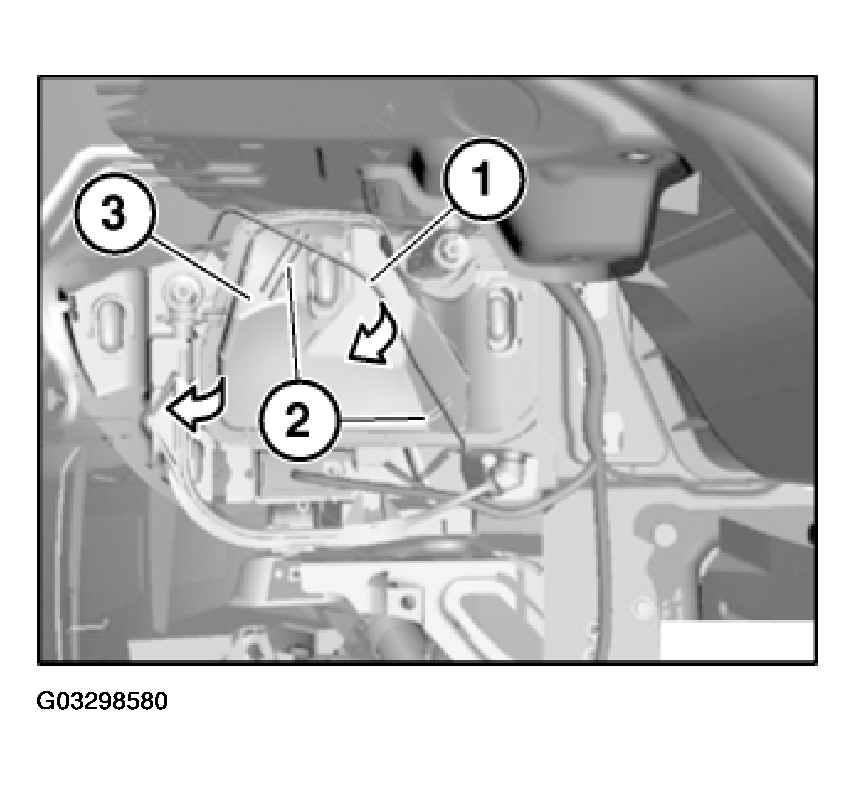

Lift locking bracket (1) out of mounts (2) and fold down as illustrated.

Feed out cover (3) in direction of arrow and remove.

Fig 2: Identifying Lift Locking Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

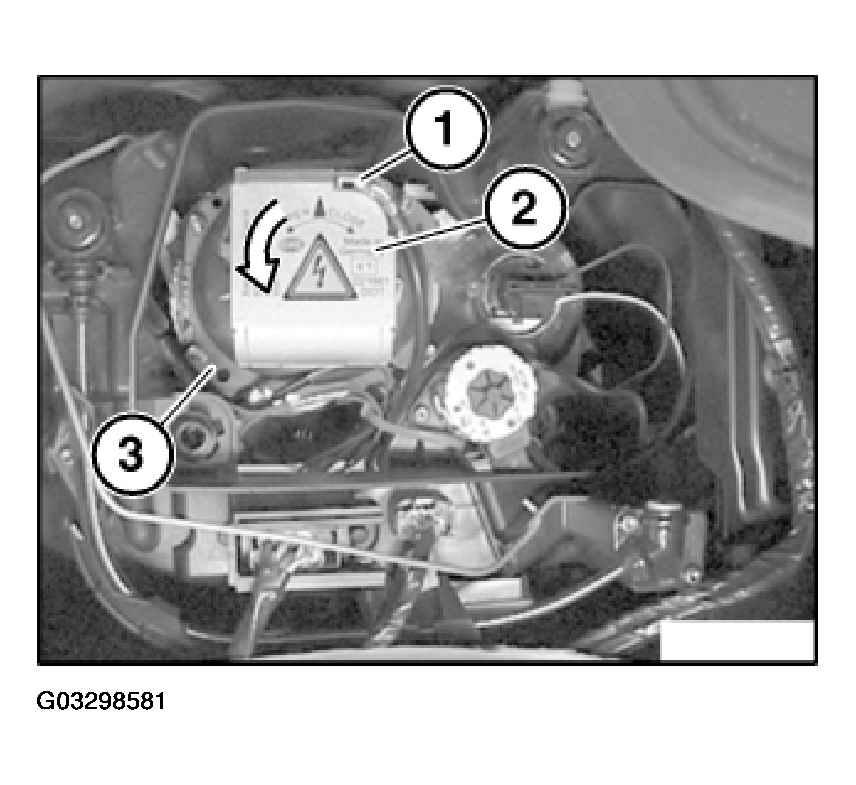

Unfasten plug connection (1) and disconnect.

Turn ignition unit for xenon headlight (2) approx. 30° in counterclockwise direction, detach from headlight (3) and remove.

Installation:

Make sure inner ring is correctly positioned in ignition unit for xenon headlight.

Fig 3: Identifying Unfastening Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
