63 25 000 Removing and installing/replacing additional stop light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

Loosen screws (1).

Feed out cover (2) in direction of arrow, unlock plug connection of auxiliary brake light behind it and disconnect.

Pay attention to springs underneath when releasing nuts (3).

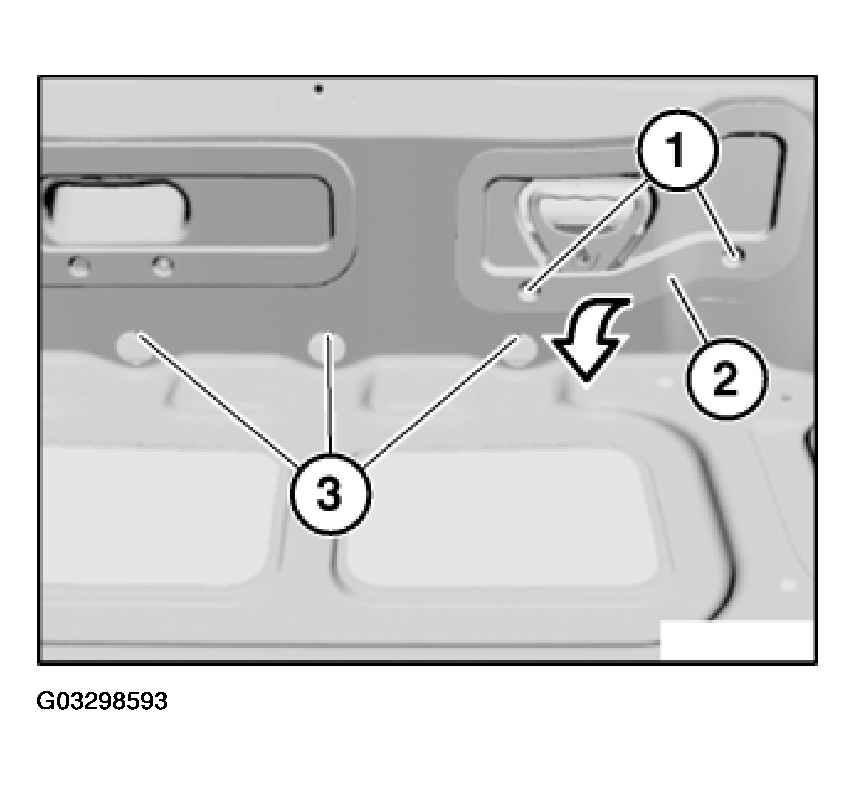

Fig 1: Unlocking Plug Connection Of Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening sequence of screws:

Middle
Outer

Tightening torque is 2-3 N.m.

Pull auxiliary brake light (1) in direction of arrow out of rear lid (2) and remove.

Installation:

Make sure auxiliary brake light seal is correctly seated. If necessary, replace auxiliary brake light seal.

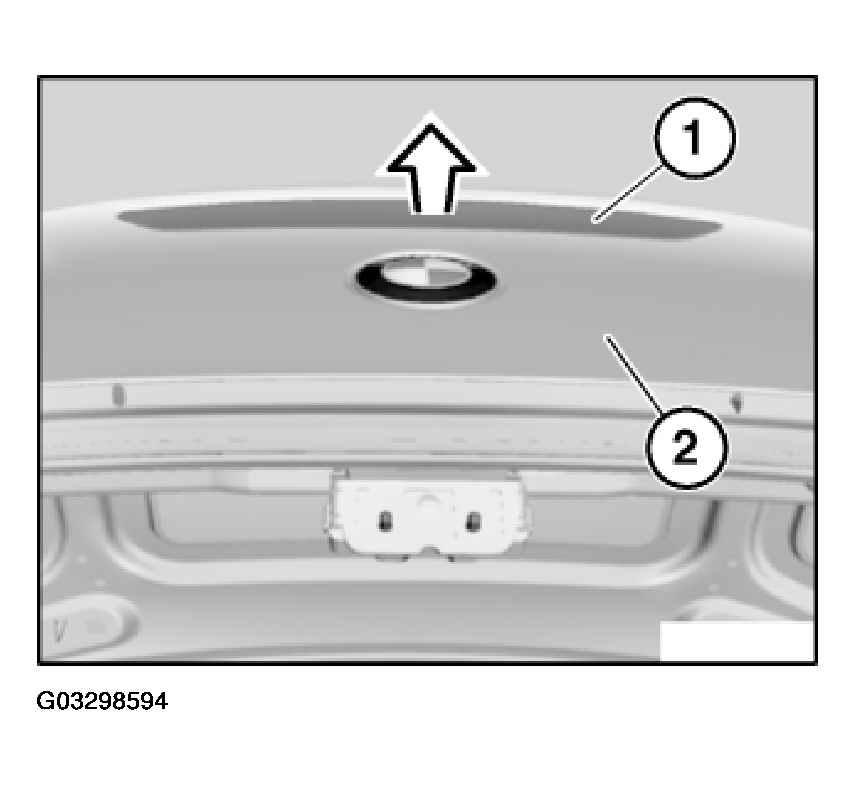

Fig 2: Pulling Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.
