61 61 270 Removing and installing/replacing bracket for windshield wiper system complete with motor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove cowl panel cover. See 51 13 115 REMOVING AND INSTALLING/REPLACING COWL PANEL COVER .

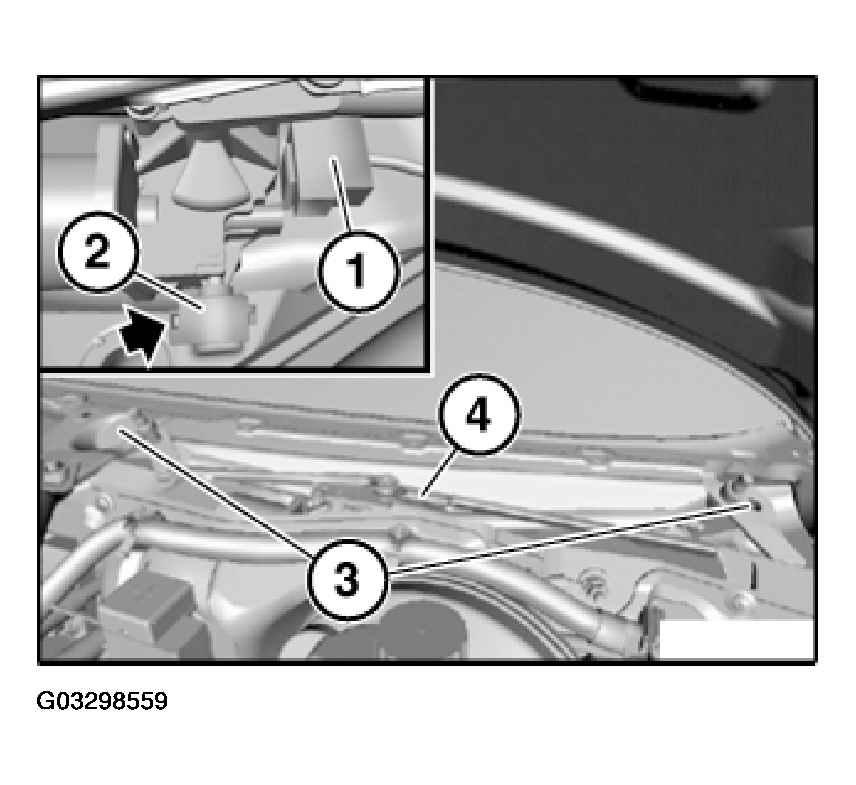

Unlock plug connection (1) and disconnect.
Unclip and remove clamping lever (2).
Installation:
If necessary, replace clamping lever (2).
Release screws (3).
Installation:
Tightening torque = 10 Nm.
Remove wiper bracket (4) upwards.
Installation:
Before fitting the wiper arms, allow the windshield wiper motor to run into the rest position.
To ensure that the windshield wiper system functions properly, check/adjust the contact angle of the wiper arms to the windshield.
