61 61 100 Removing and installing/replacing both windshield wiper arms

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 6 060

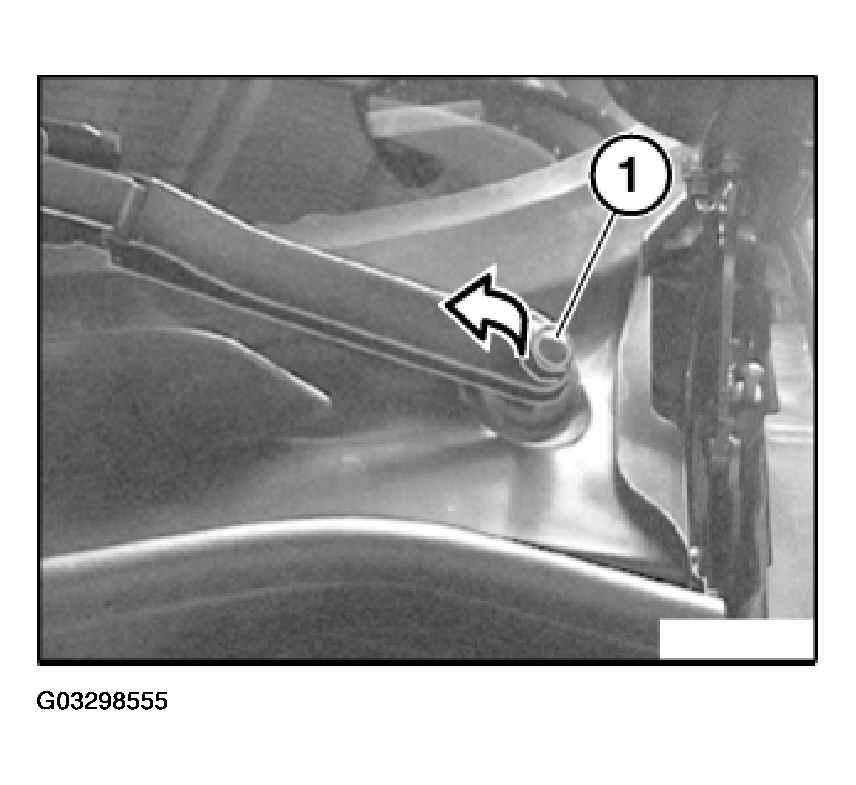

Remove cover (1).

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1). For tightening torque, see 61 61 11AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE .

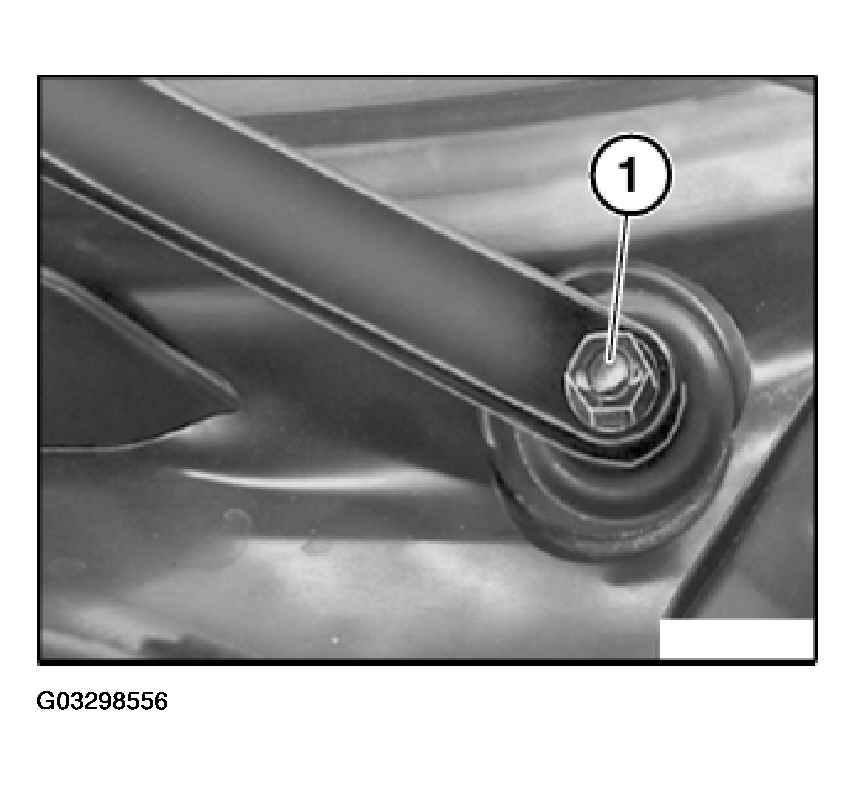

Fig 2: Release Nut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not bend wiper arm (1) when removing it (risk of breakage).

Detach wiper arm (1) with special tool 61 6 060.

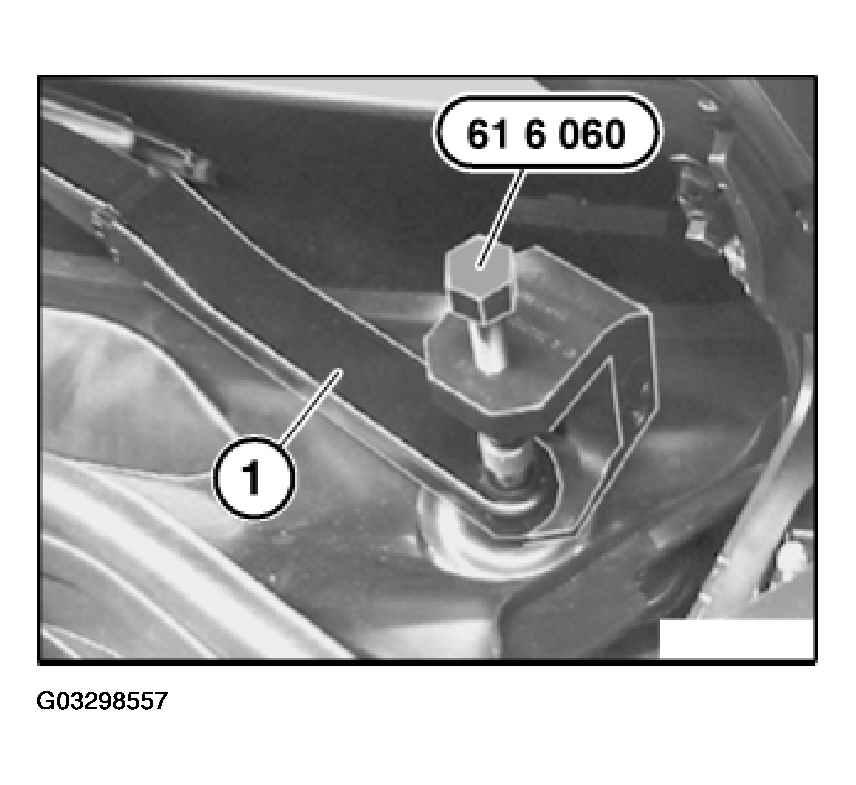

Fig 3: Detaching Wiper Arm With Special Tool 61 6 060

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, fit wiper blades on new wiper arms.

Always fit wiper blade with spoiler on left.

NOTE: The driver's side wiper arm is shown.

Installation:

Adjust position of relevant wiper arm in rest position.

The gap between wiper lip (1) and the top edge of cowl panel cover (3) at the attachment point (2) of the wiper blade is measured.

Then tighten down wiper arm and check position of relevant wiper arm again.

Adjustment measurements:

Driver's side: 52+/-2 mm
Passenger side: 57+/-2 mm

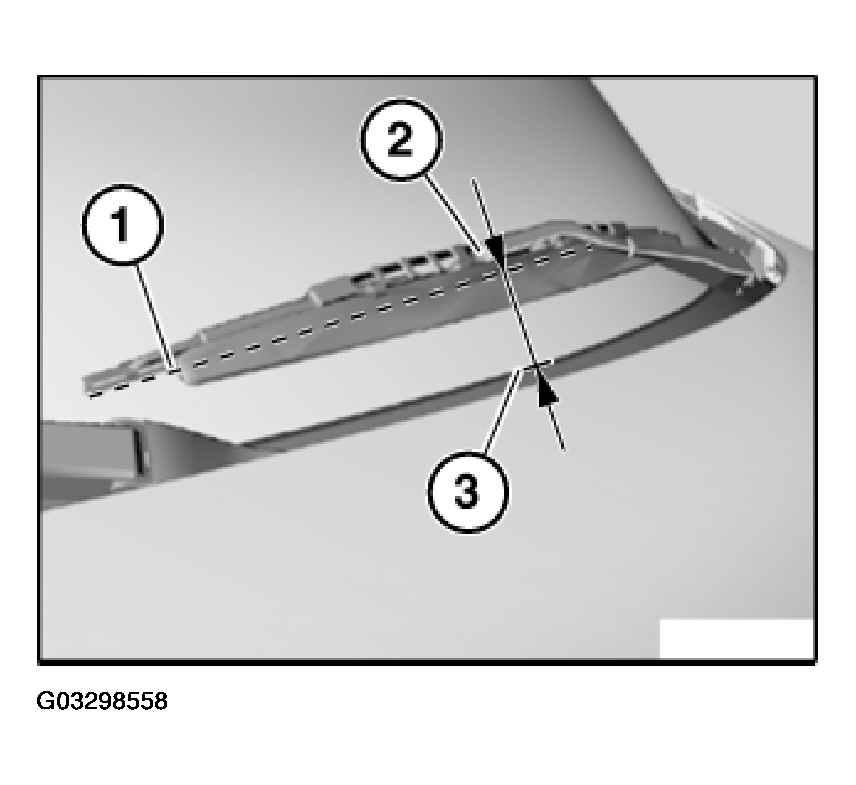

Fig 4: Identifying Gap Between Wiper Lip And Top Edge Of Cowl Panel Cover
