61 61 010 Checking/adjusting approach angle of windshield wiper arms on front windscreen

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 221
00 9 222
00 9 331

NOTE: Wiping quality is increased if the approach angle of the windshield wiper arms is precisely adjusted.
Before checking contact angle, briefly lift wiper arms off windshield.

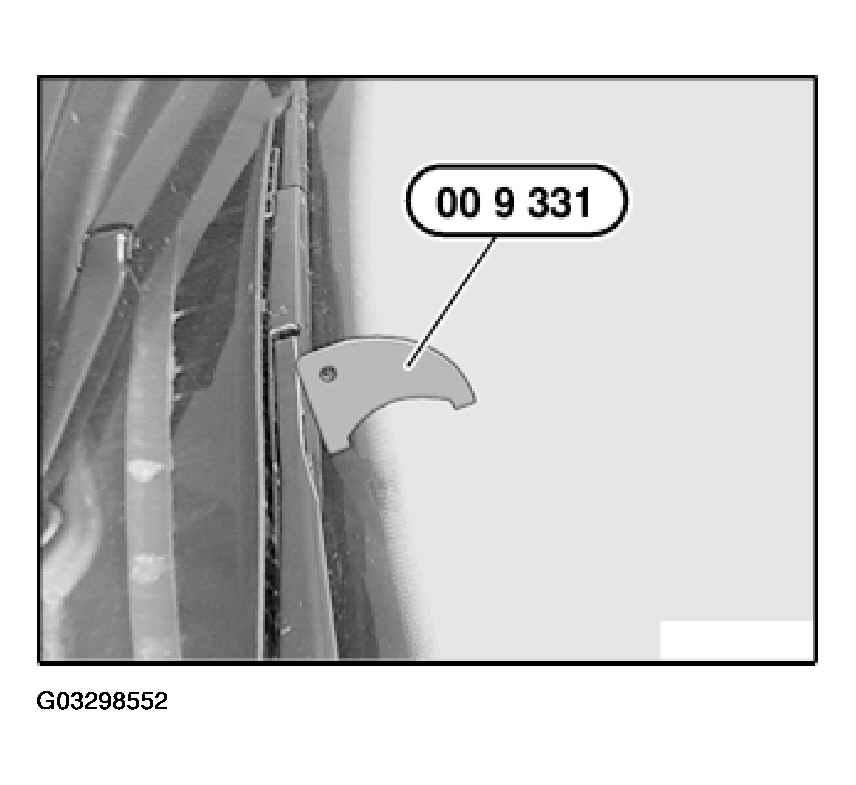

Place special tool 00 9 331 in rest position next to pivot point of wiper blade on windshield.

Fig 1: Placing Special Tool 00 9 331

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before adjusting, cover wiper arm in area of special tools 00 9 221 and 00 9 222 with adhesive tape.

Contact angle too large (light gap at top between gauge and wiper blade):

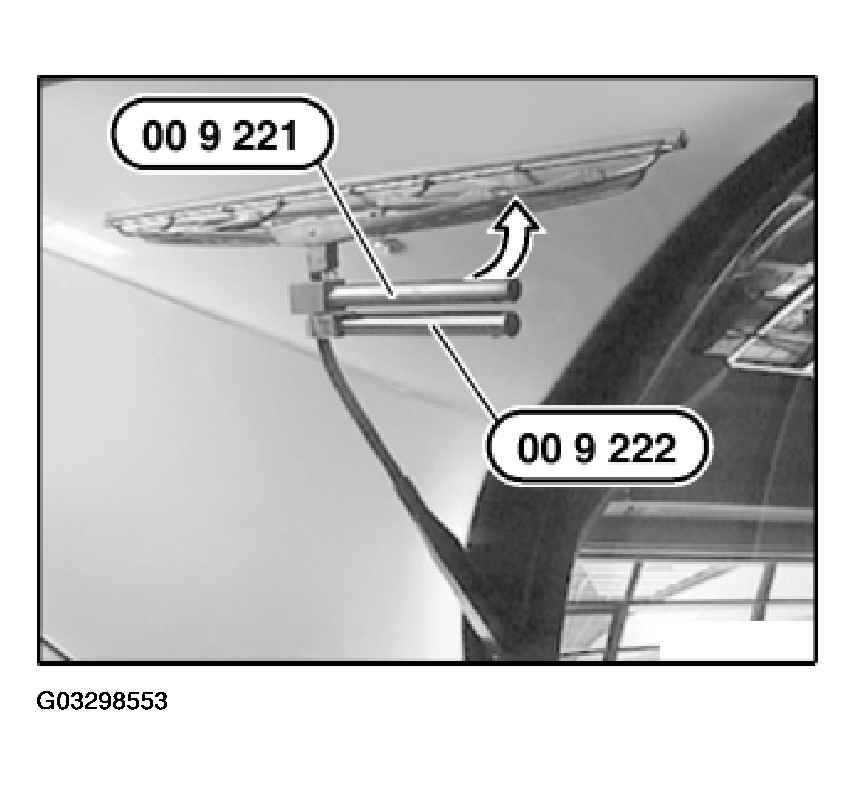

Grip wiper arm with special tool 00 9 222 and turn with special tool 00 9 221 in direction of arrow.

Fig 2: Identifying Special Tool 00 9 222 And Turn With Special Tool 00 9 221

Courtesy of BMW OF NORTH AMERICA, INC.

Contact angle too small (light gap at bottom between gauge and wiper blade):

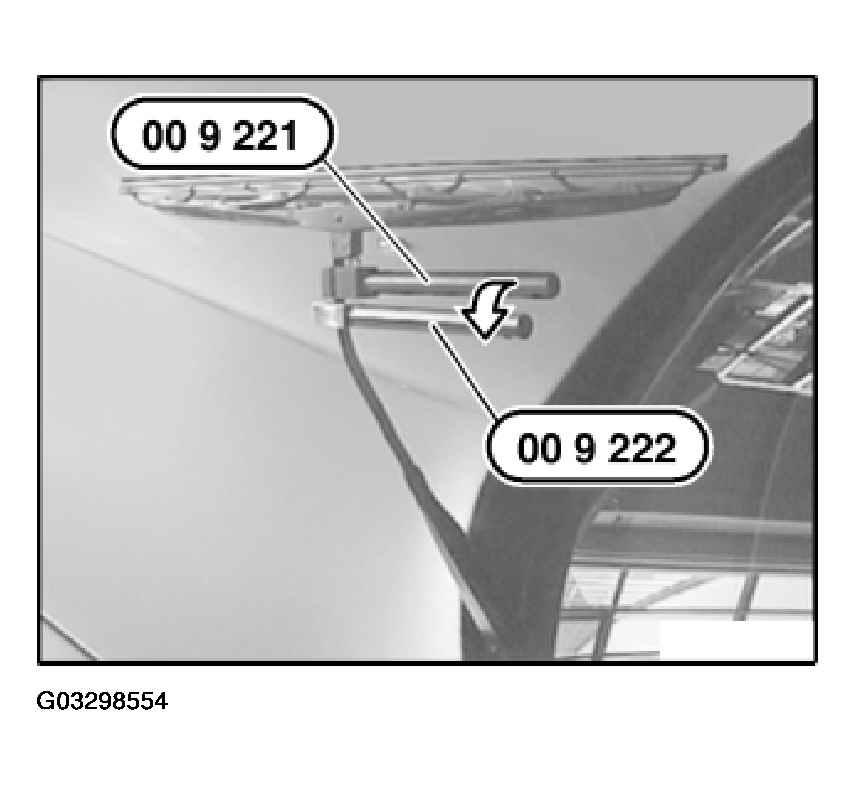

Grip wiper arm with special tool 00 9 222 and turn with special tool 00 9 221 in direction of arrow.

Fig 3: Identifying Grip Wiper Arm With Special Tool 00 9 222

Courtesy of BMW OF NORTH AMERICA, INC.
