61 71 015 Removing and installing/replacing a spray nozzle in windshield washer system
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The spray nozzles of the windshield washer system are factory set and cannot be subsequently readjusted.

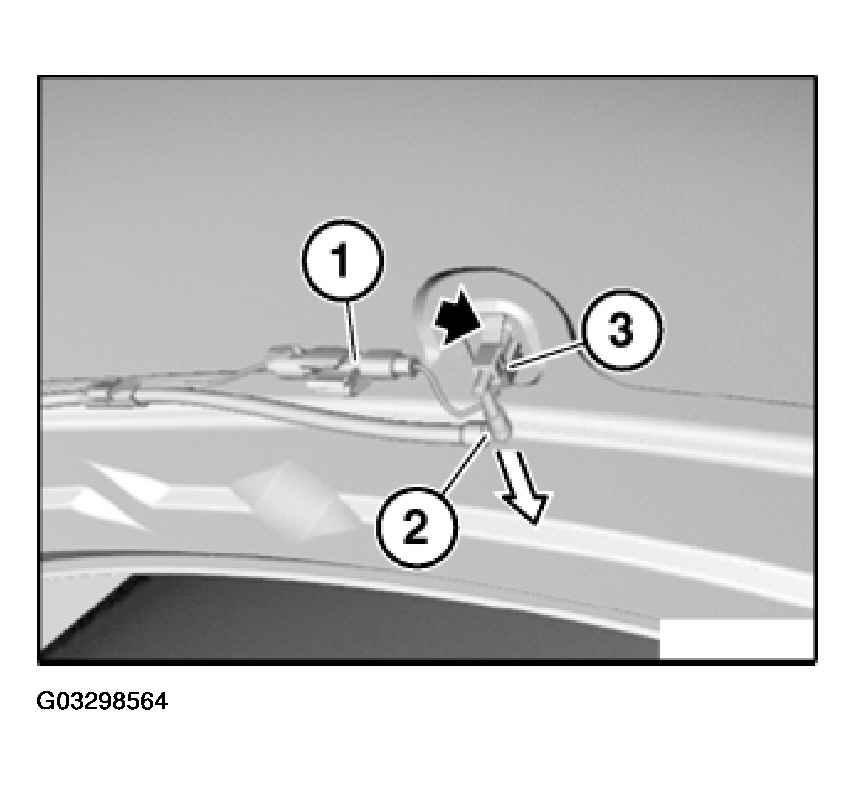

Unlock plug connection (1) and disconnect.
Detach connecting piece (2) in direction of arrow from spray nozzle of windshield washer system (3).
Unlock spray nozzle (3), press out through opening and remove.
Installation:
Make sure spray nozzle of headlight cleaning system (3) is correctly seated.
Ensure hose is laid without kinks.
