61 31 799 Removing and installing/replacing microswitch convertible top compartment-
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove center mount for convertible top compartment floor. See 54 31 070 REMOVING AND INSTALLING OR REPLACING BASE PLATE .

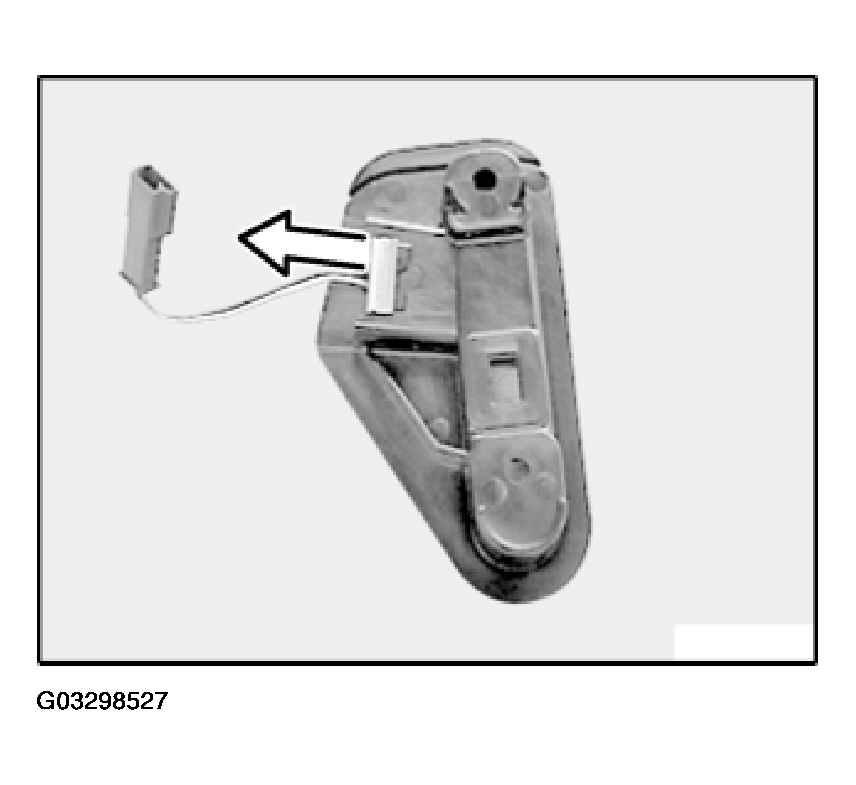

Detach convertible top compartment microswitch in direction of arrow from center mount for convertible top compartment floor.
