61 31 798 Removing and installing/replacing sensor on left convertible top catch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim on convertible top catch. See 54 34 125 REMOVING AND INSTALLING/REPLACING TRIM ON CONVERTIBLE TOP CATCH .
- Remove cover. See 54 34 159 REMOVING AND INSTALLING/REPLACING LEFT CONVERTIBLE TOP LATCH .

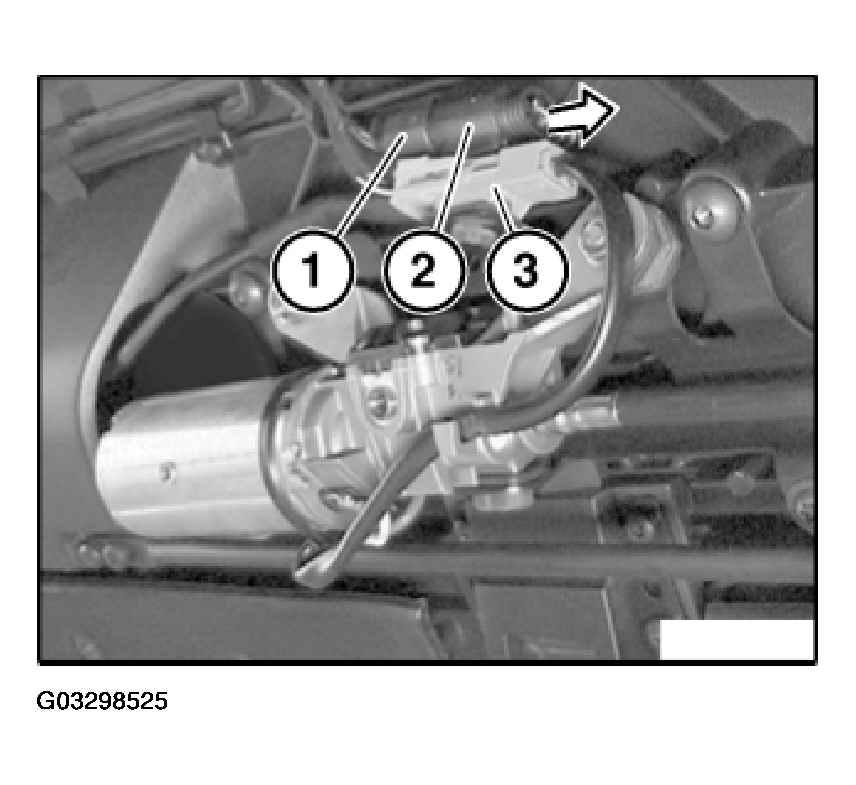

Unlock plug (1) and detach from housing (2).
Unlock housing (2) and detach in direction of arrow from plug connection (3).

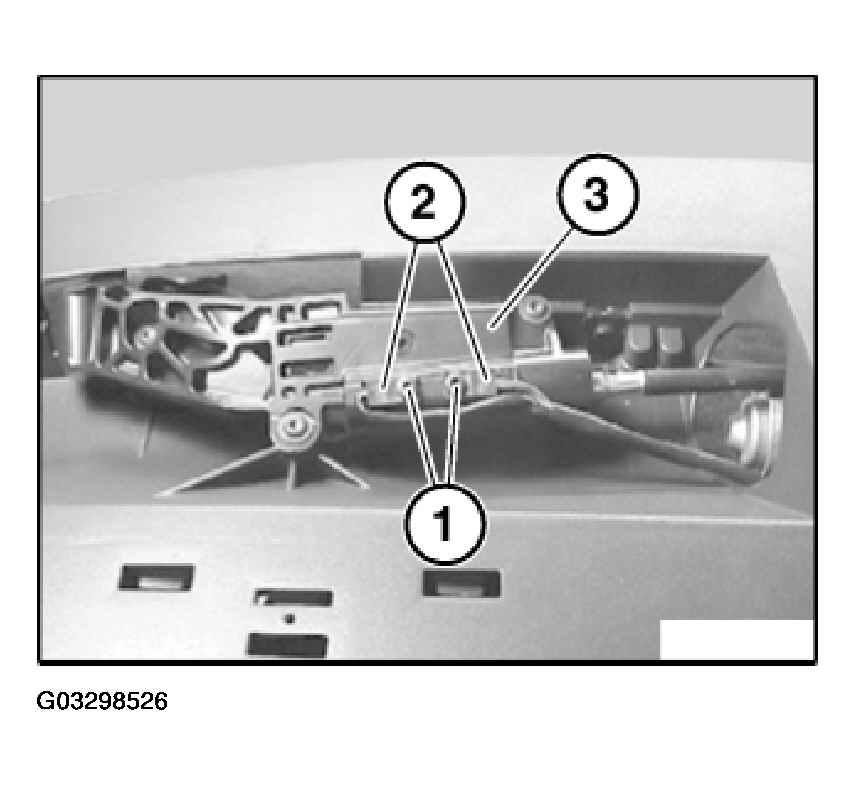

Release screws (1).
Remove two-part sensor (2) from convertible top catch (3).
Installation:
Note different cable lengths of two-part sensor (2).
