61 31 440 Removing and installing/replacing temperature switch for heated windshield spray jets
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Front wheel removed for purposes of clarity.

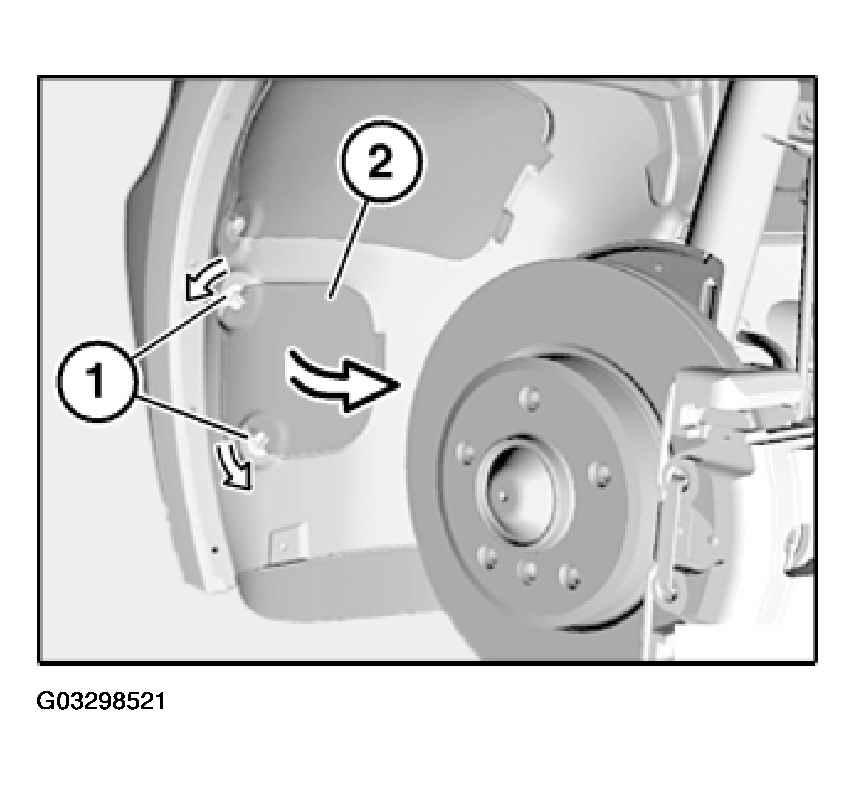

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.

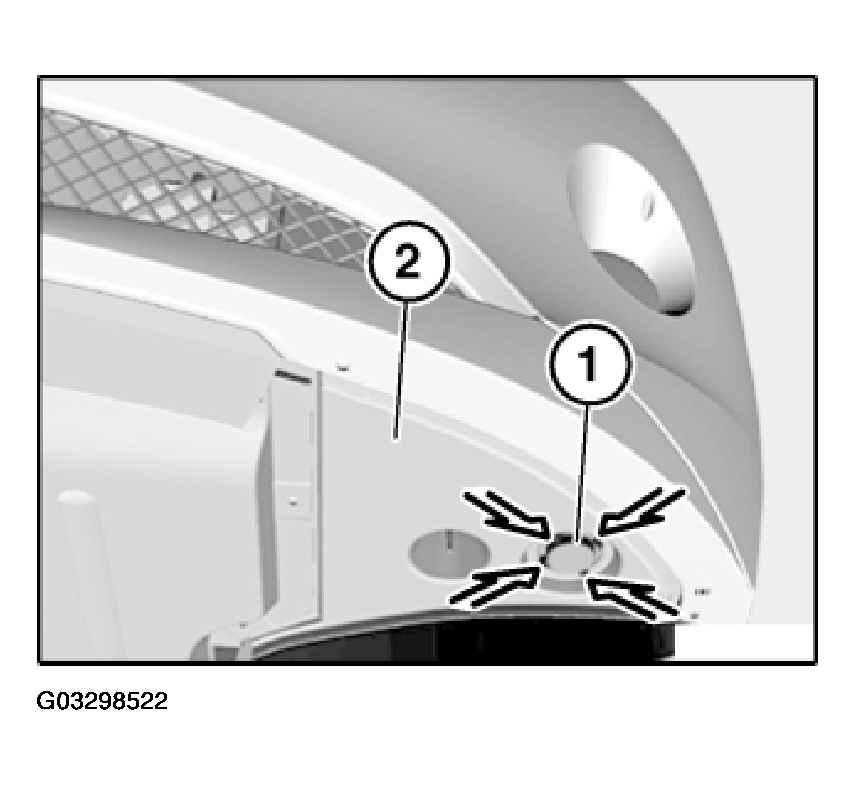

Unlock temperature switch for heated windshield spray jets (1) in direction of arrow and press upwards out of cover (2).
Through folded-up cover in wheel arch, unlock and disconnect plug connection of temperature switch for heated windshield spray jets.
Remove temperature switch for heated windshield spray jets (1).
