61 31 310 Replacing brake light switch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim panel for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

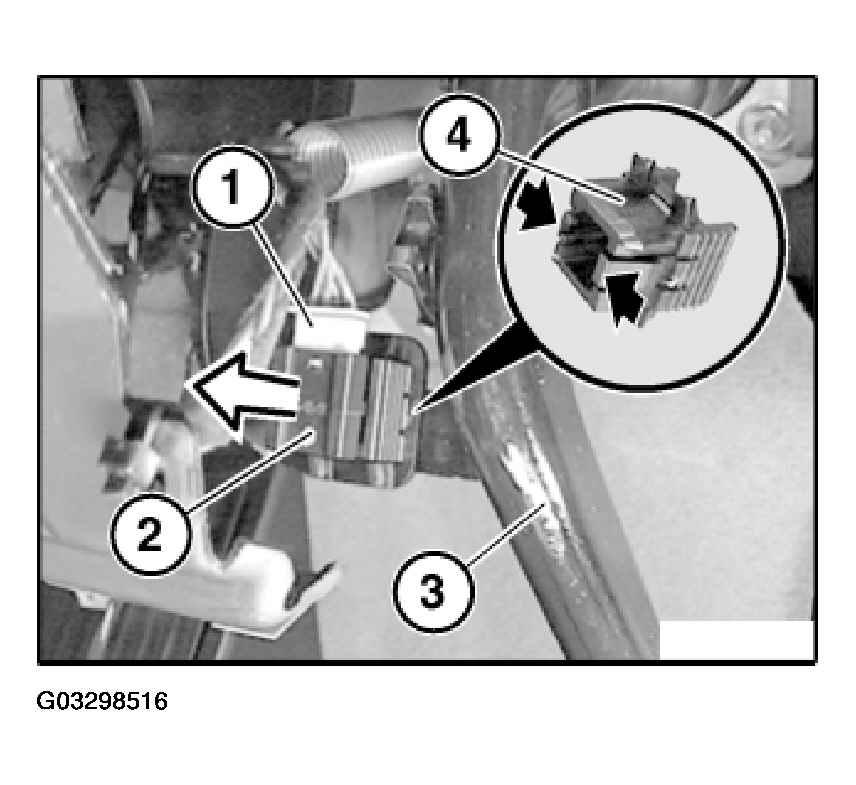

Unfasten plug connection (1) and disconnect.
Pull brake light switch (2) in direction of arrow out of brake light switch holder (4).
Installation:
- Press brake pedal (3) to floor.
- Slide brake light switch (2) as far as it will go into brake light switch holder (4).
- Grip brake light switch holder (4), slowly return brake pedal (3) to starting position and pull back to stop.
NOTE:
Removing brake light switch holder (4):
Press brake pedal (3).
Press catches together and unclip holder for brake light switch (4) from carrier.
