61 31 270 Removing and installing/replacing switch for reversing light (DME)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove rear underbody protection.

Unfasten plug connection (1) and disconnect. Release switch for reversing light (2).

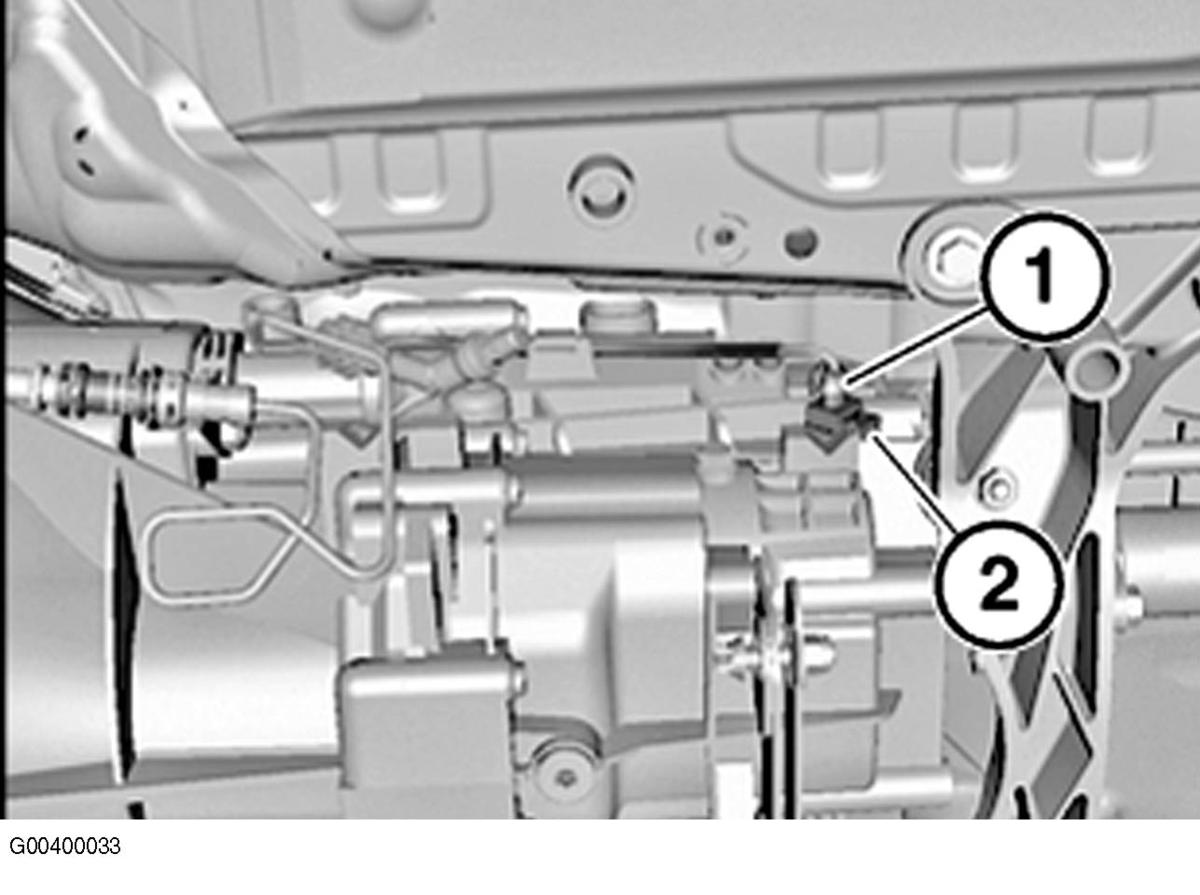

Fig 1: Removing Switch For Reversing Light

Courtesy of BMW OF NORTH AMERICA, INC.
