61 31 255 Replacing switch for door mirror
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 317

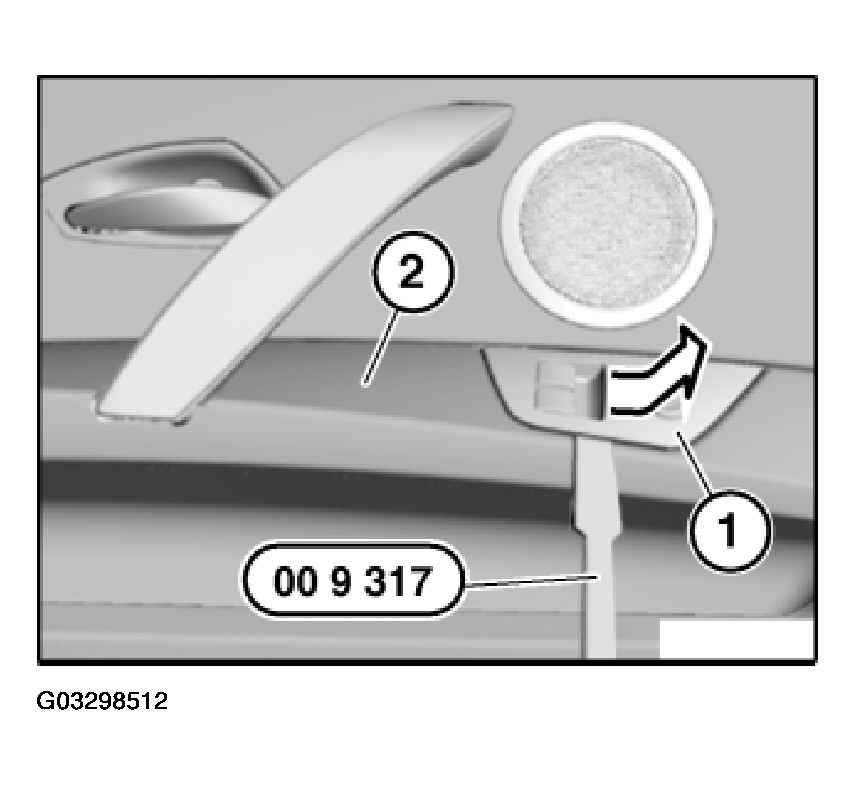

Fit special tool 00 9 317 as illustrated and lever out switch for door mirror (1).
Feed out switch for wing mirror (1) in direction of arrow from door trim panel (2).
Unlock and disconnect associated plug connections, remove switch for door mirror (1).
