61 31 056 Removing and installing/replacing shifters for SMG transmission
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove DRIVER-SIDE AIR BAG MODULE .

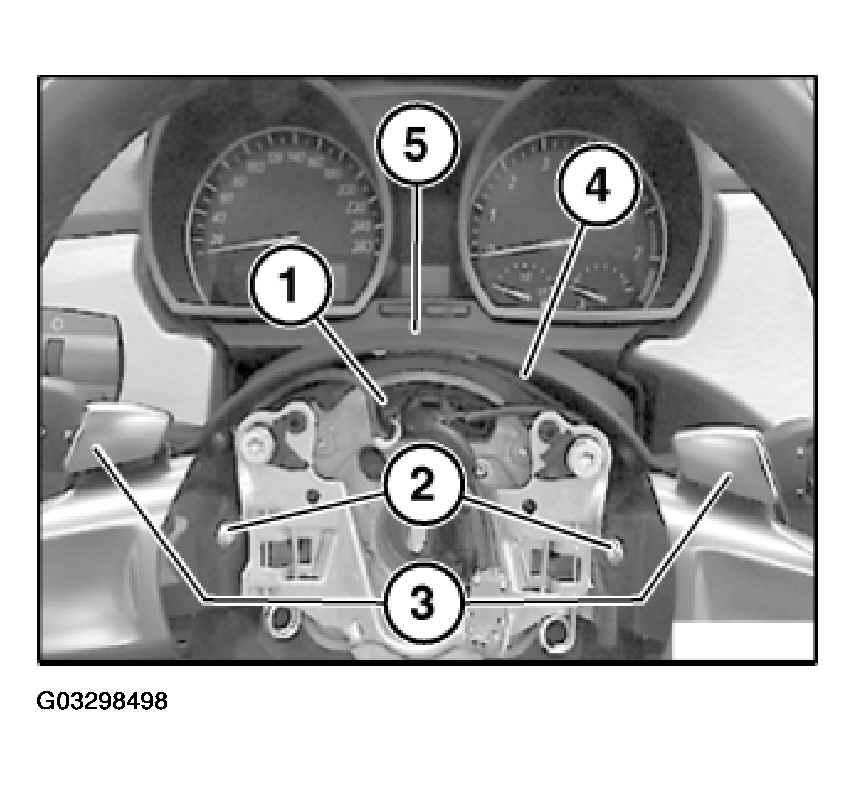

Unfasten plug connection (1) and disconnect.
Loosen screws (2).
NOTE:
Both shifters for SMG transmission (3) are connected to each other by wiring harness (4).
Detach both shifters for SMG transmission (3) towards front.
Feed wiring harness (4) out of steering column cover upper section (5) and remove both shifters for SMG transmission (3).
Installation:
Make sure wiring harness (4) is correctly routed under steering column cover upper section (5).
Make sure shifters for SMG transmission (3) are correctly seated.
