61 31 020 Removing and installing/replacing ignition starter switch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Disconnect negative battery lead.
- Remove LOWER SECTION OF STEERING COLUMN COVER .

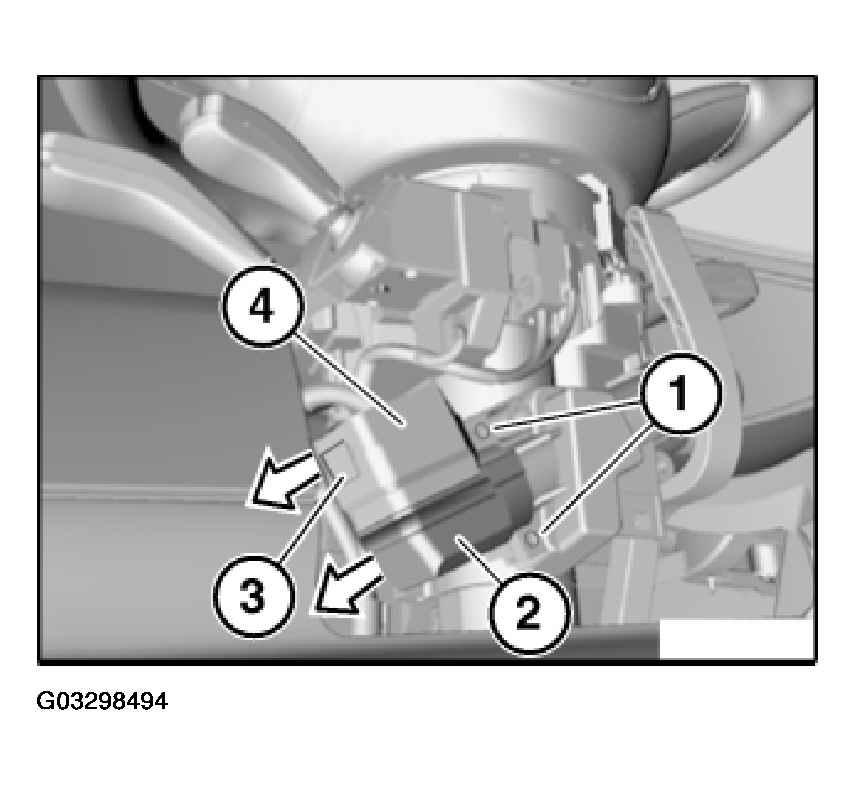

Remove sealing varnish and release headless setscrews (1).
Detach ignition starter switch (2) in direction of arrow.
Installation:
Secure headless setscrews (1) with sealing varnish.
Open lock (3) in direction of arrow and disconnect plug (4) from ignition starter switch (2).
