61 31 018 Removing and installing/replacing cruise control switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LOWER SECTION OF STEERING COLUMN COVER .

NOTE: For purposes of clarity, the illustration shows the steering wheel removed.

Open lock (1) and feed cruise control switch (2) in direction of arrow out of Fixture For Steering Column Stalk .

Disconnect associated plug connection (4) and remove cruise control switch (2).

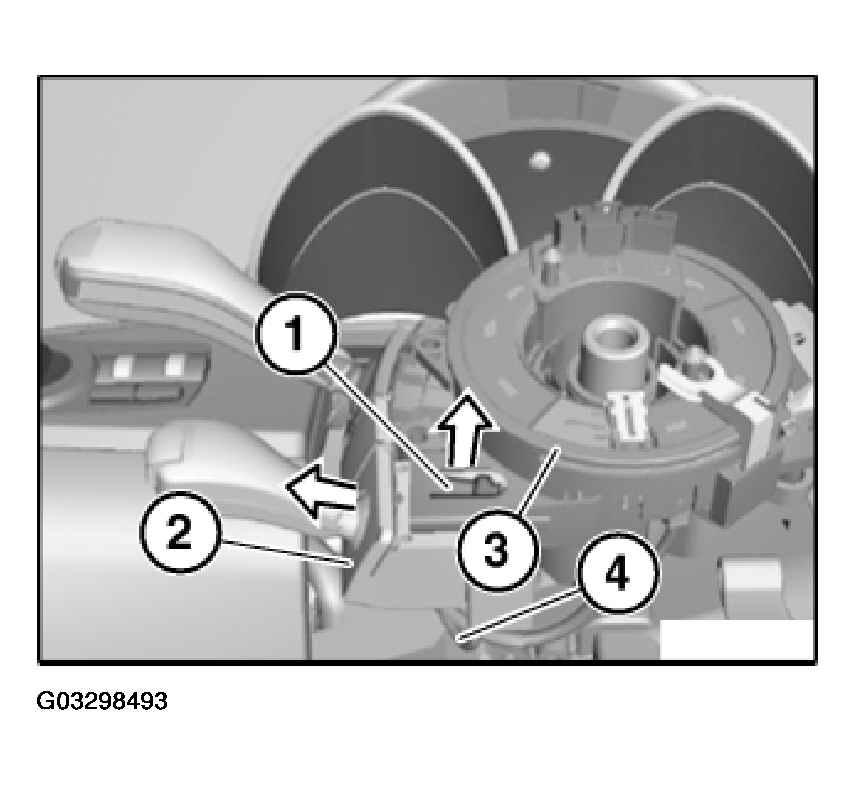

Fig 1: Opening Lock And Feed Cruise Control Switch

Courtesy of BMW OF NORTH AMERICA, INC.
