Stripping Insulation From Optical Fibre
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

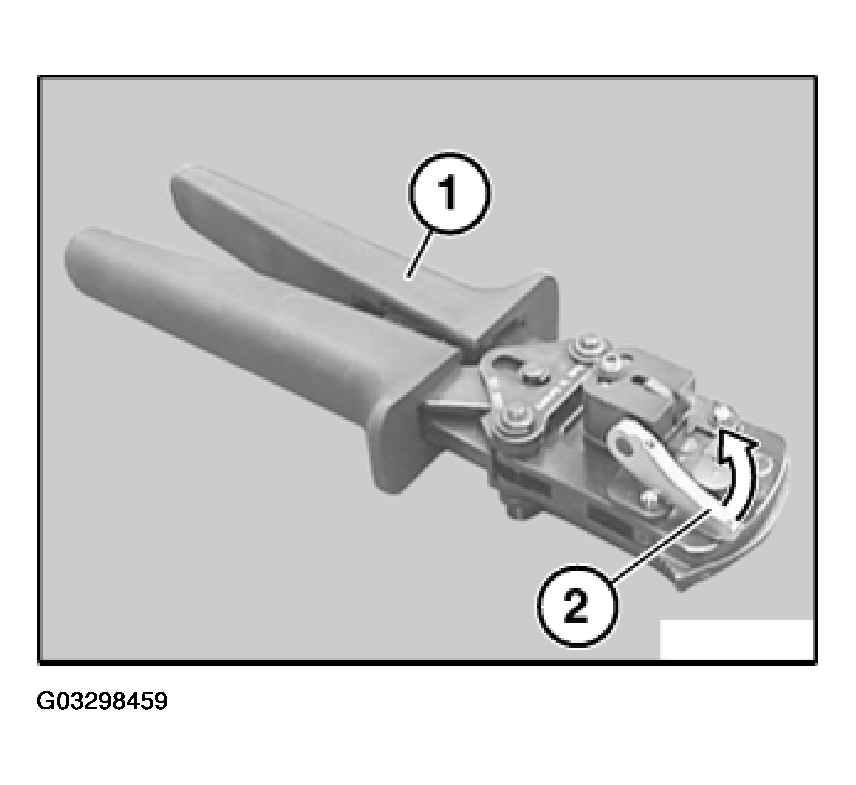

Open pliers (1).
Open lever (2) in direction of arrow.
Slide optical fibre (1) into stripping device (2) until flush at point (3).
Close pliers (4) fully.
Close clamping lever (5) in direction of arrow.
Open pliers (4) by one tooth notch.
Open clamping lever (5) against direction of arrow again and remove optical fibre (1).
NOTE:
A stripping replacement blade set is available under number 61 4 327.
