Cutting Optical Fibre To Length

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

Fig 1: Opening Clamping Lever

G03298460

Courtesy of BMW OF NORTH AMERICA, INC.

Pull pin (1) in direction of arrow.

Fold up blade retaining link (2) in direction of arrow.

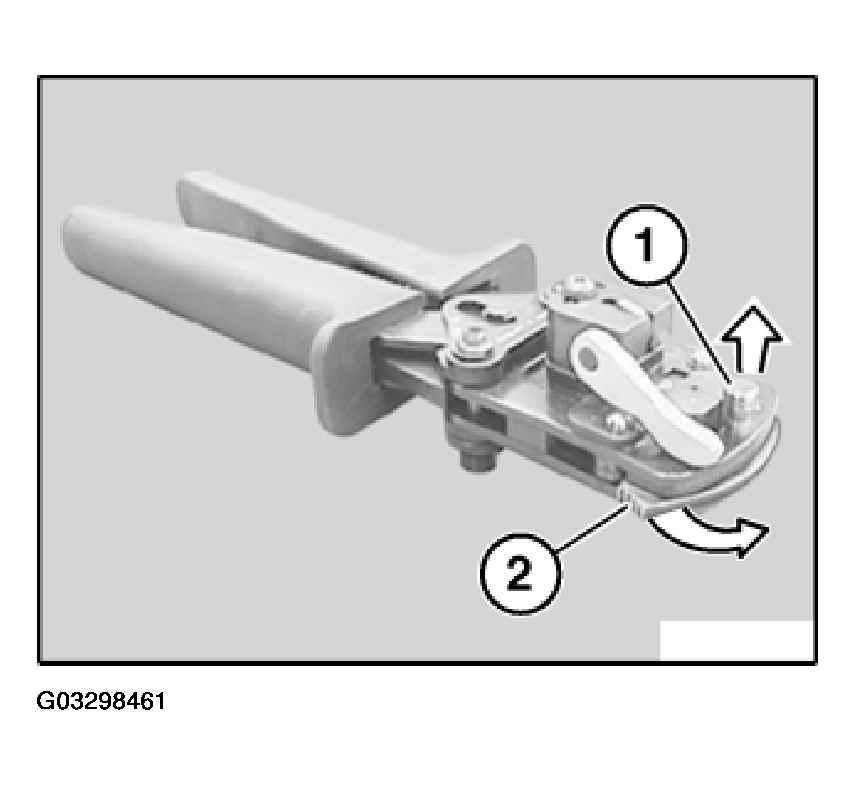

Fig 2: Pulling Pin

G03298461

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

Installation:

Make sure blade (1) is correctly seated on locating points (2).

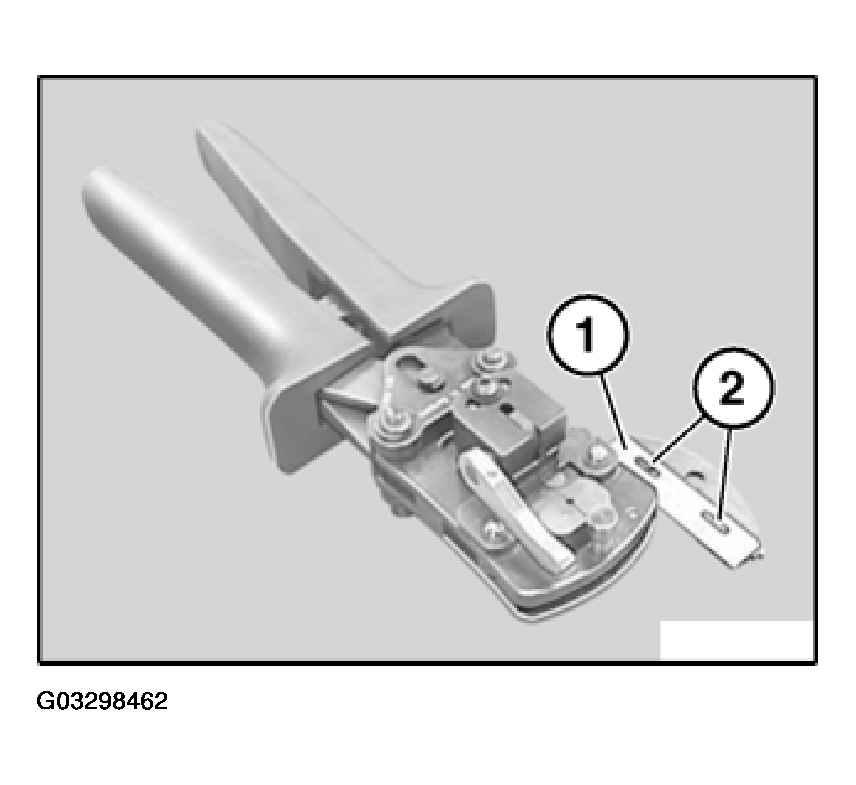

Fig 3: Removing Blade

G03298462

Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).

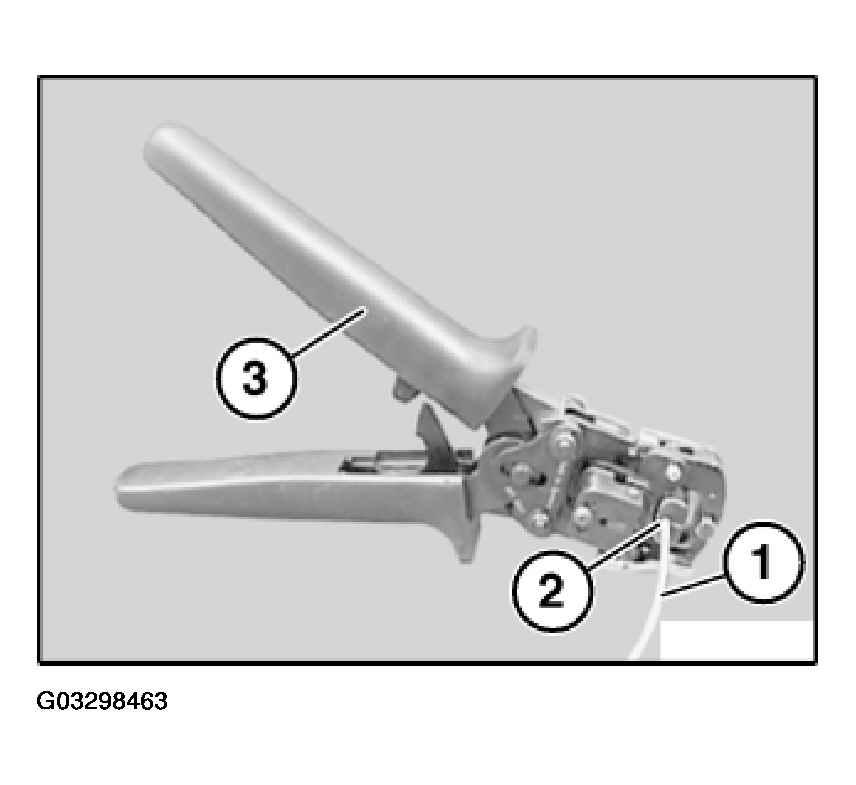

Fig 4: Removing Optical Fibre

G03298463

Courtesy of BMW OF NORTH AMERICA, INC.
