61 33 040 Removing and installing/replacing a fanfare horn

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front wheel removed for purposes of clarity.

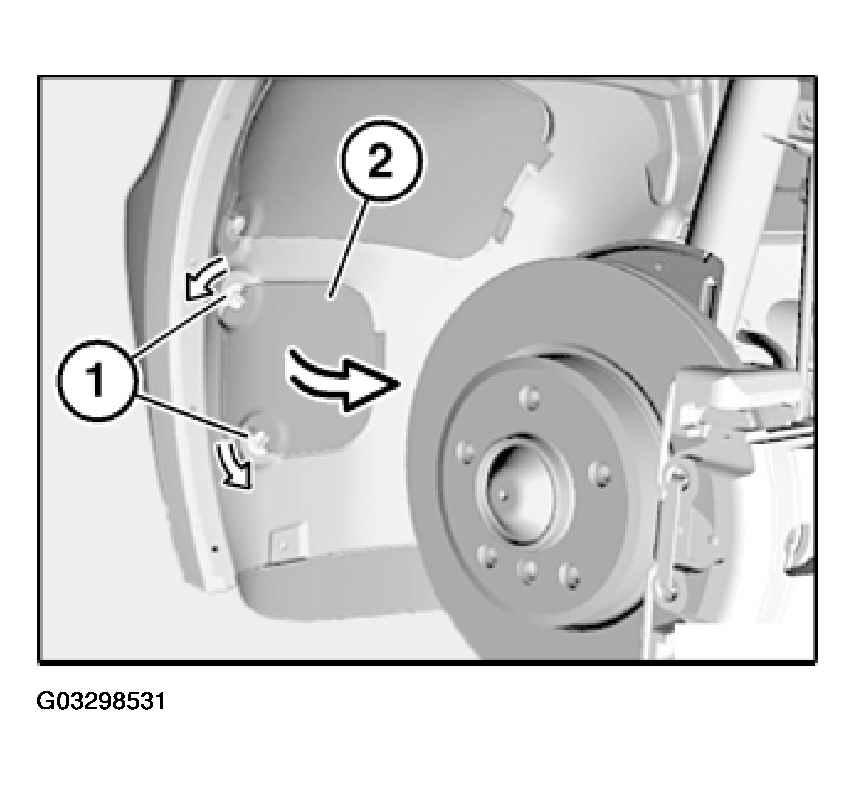

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.

Fig 1: Unlocking Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

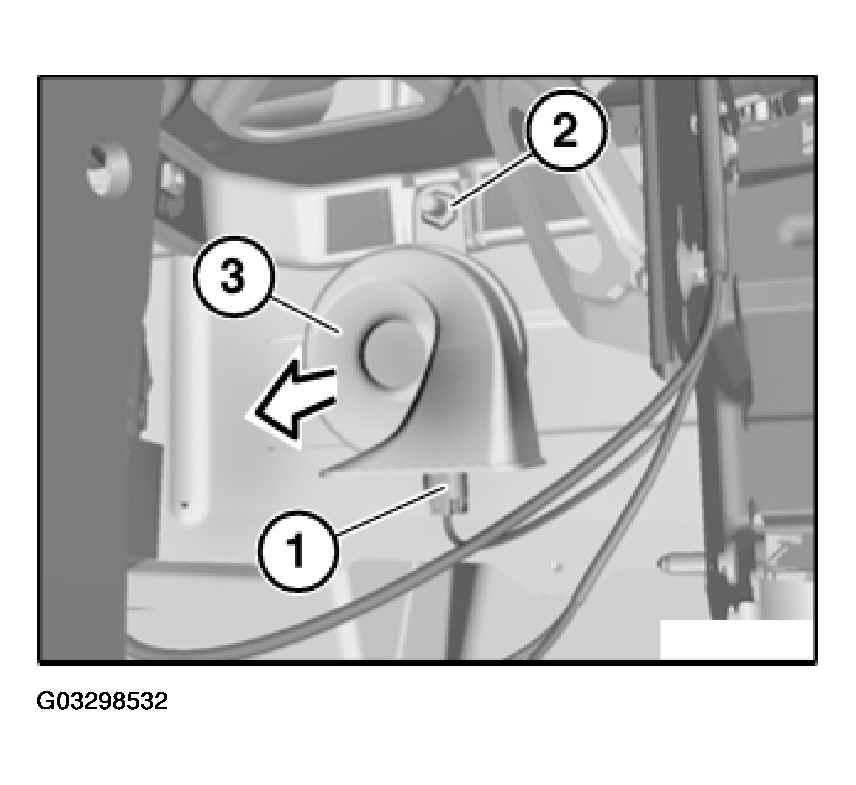

Unlock plug connection (1) and disconnect.

Release nut (2) and remove air horn complete with holder in direction of arrow.

Fig 2: Unlocking Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

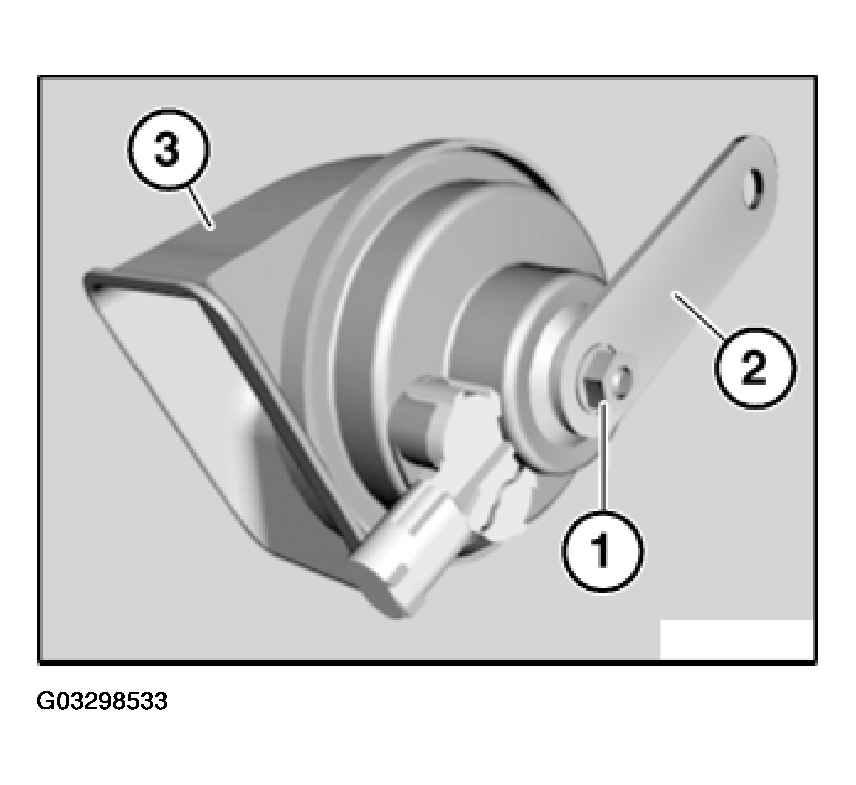

Unscrew nut (1).

Remove holder (2) from air horn (3).

Fig 3: Unscrewing Nut

Courtesy of BMW OF NORTH AMERICA, INC.
