61 67 083 Removing and installing/replacing left or right high-pressure nozzle of headlight cleaning system
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front bumper trim.

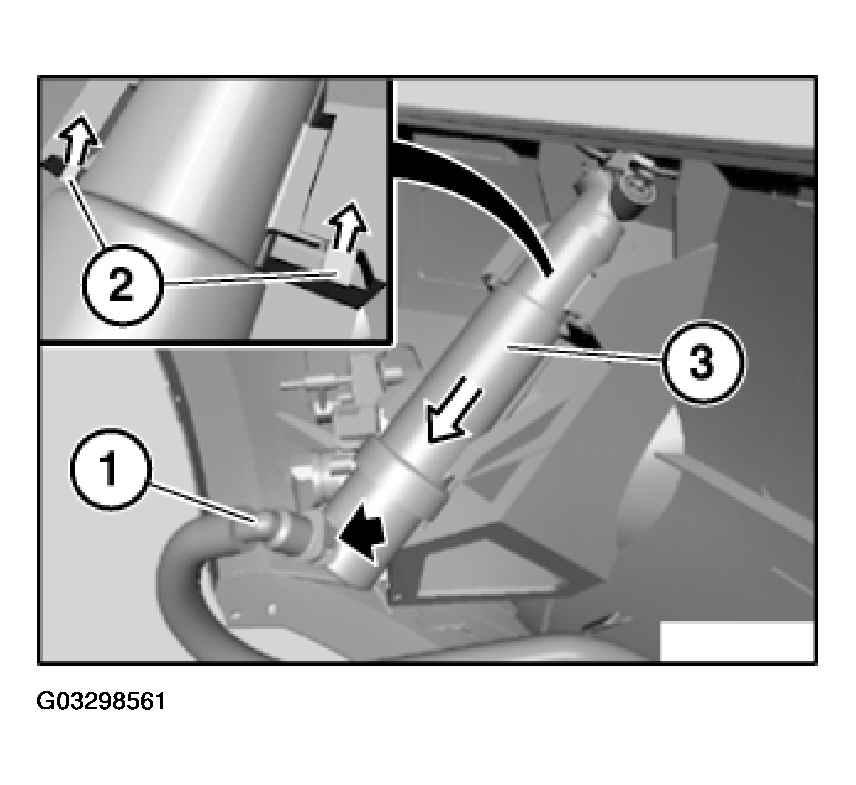

Unlock high-pressure line (1) and detach from high-pressure nozzle of headlight cleaning system (3).
Pull locks (2) in direction of arrow.
Pull high-pressure nozzle of headlight cleaning system (3) in direction of arrow out of guides and feed out through opening in bumper trim.
Installation:
Make sure high-pressure nozzle of headlight cleaning system (3) is correctly seated.
New high-pressure nozzle of headlight cleaning system (3) is already preadjusted.

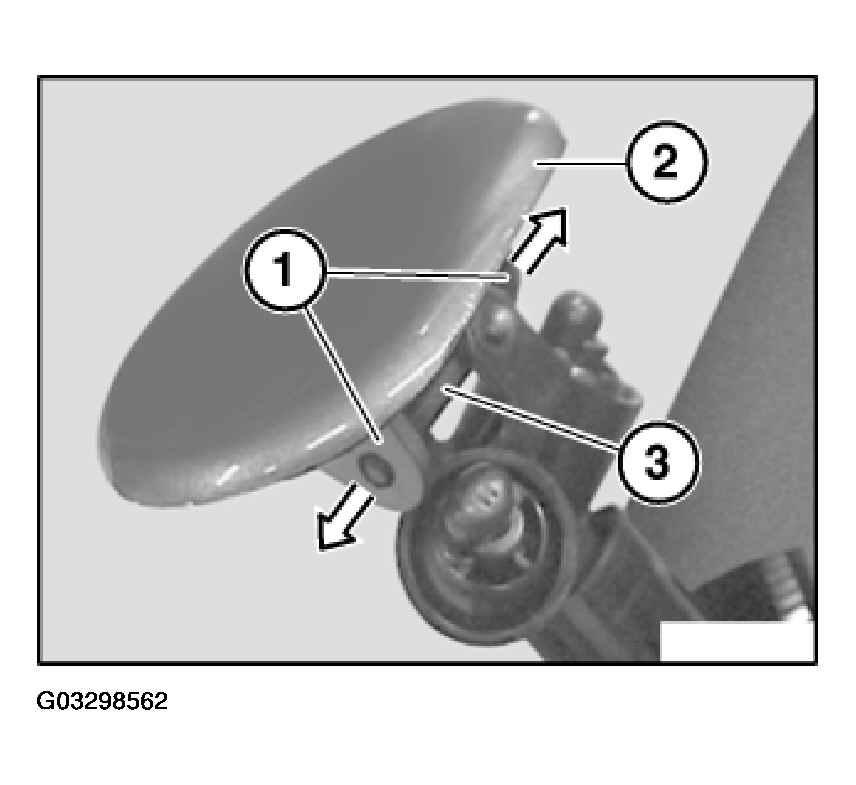

Gently pull mounts (1) of trim (2) apart in direction of arrow and remove from guide (3).
Installation:
Replace trim (2) if mounts (1) are damaged.
