61 35 070 Removing and installing/replacing module for folding door mirror
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Disconnect battery negative lead.
- Remove trim for instrument panel, bottom left. See 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL .

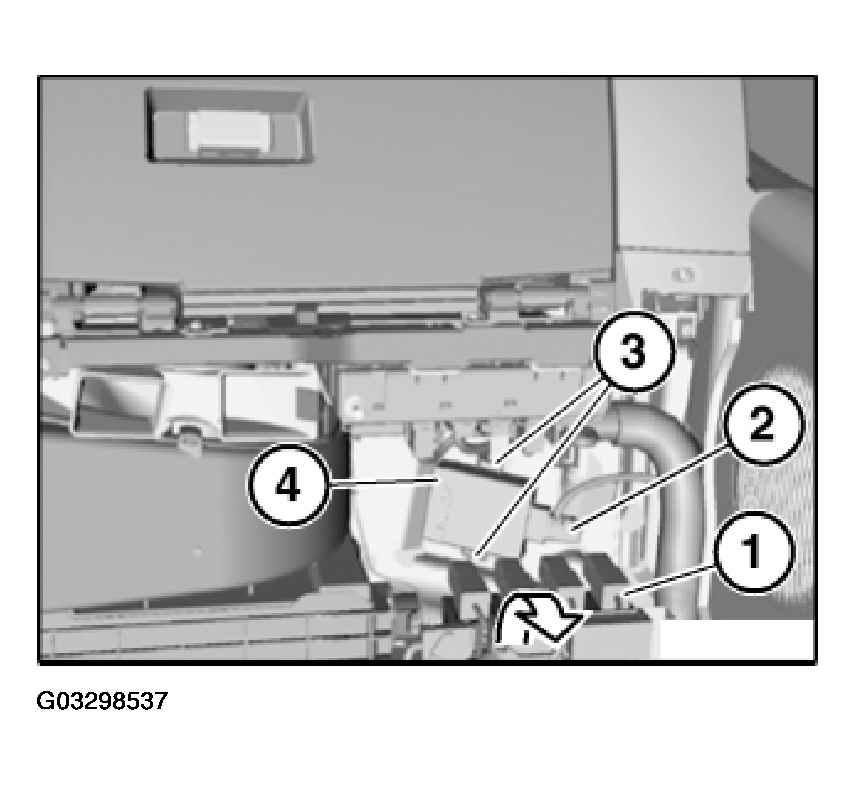

Detach relay carrier (1) in direction of arrow and lay to one side.
Unfasten plug connection (2) and disconnect.
Release nuts (3) and remove module for folding door mirror (4).
