61 12 160 Replacing wiring harness for heated rear window
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove convertible top . See 54 31 015 REPLACING CONVERTIBLE TOP FRAME .

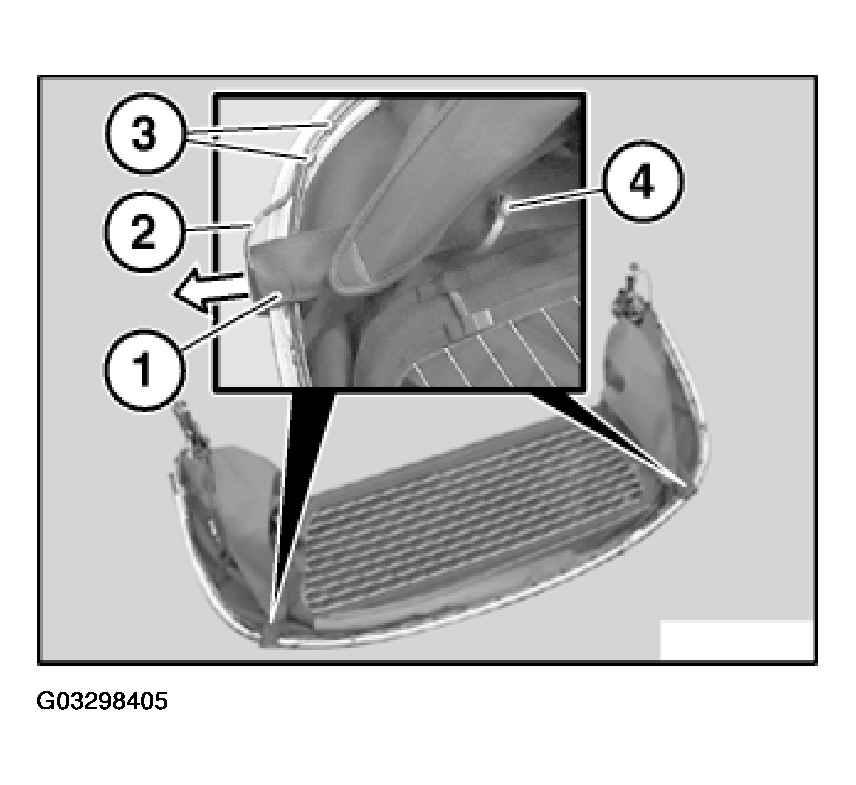

Disconnect plug connection (4).
Feed out cable loom (2) in direction of arrow out of pocket (1).
Release screws (3) and open cable holders (approx. 10 x) along aluminum rail.
Feed out and remove wiring harness for heated rear window.
WARNING:
Risk of trapping in the following work step (close convertible top).
Mechanical convertible top only:

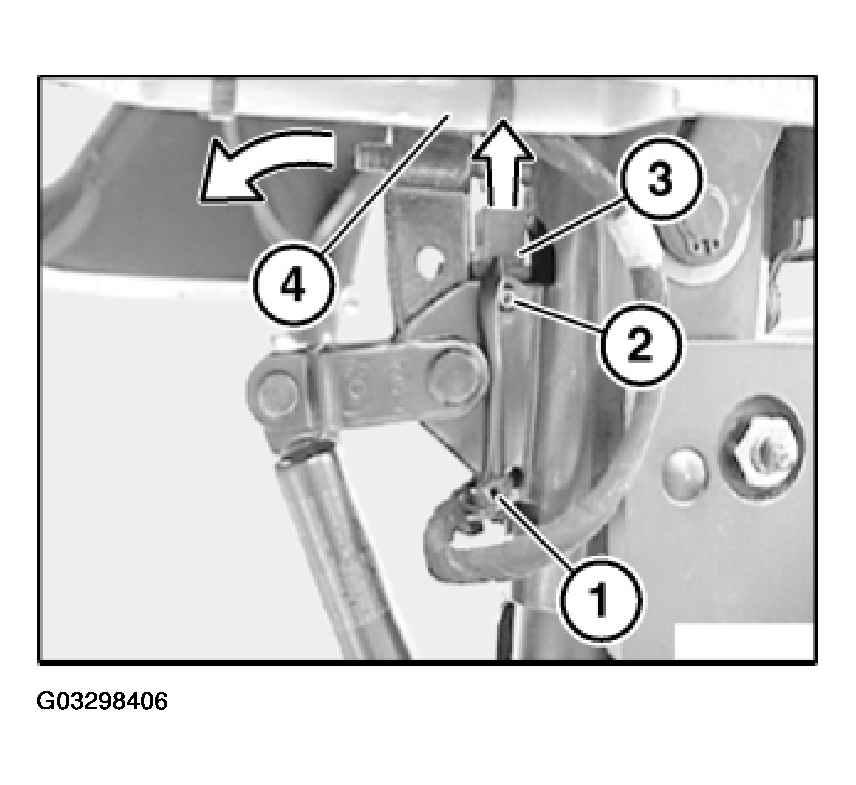

Cut open cable tie (1).
Release screw (2) and feed out microswitch (3) in direction of arrow.
To simplify this operation, move convertible top (4) into "Close" position slightly.
Installation:
Replace cable ties.
Align microswitch.
