52 13... Removing and installing/replacing strip (trim) of left or right belt guide
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove backrest cover . See 52 13 405 Replacing Backrest Cover For Left Or Right Front Seat .
- Remove belt guide . See Figure .

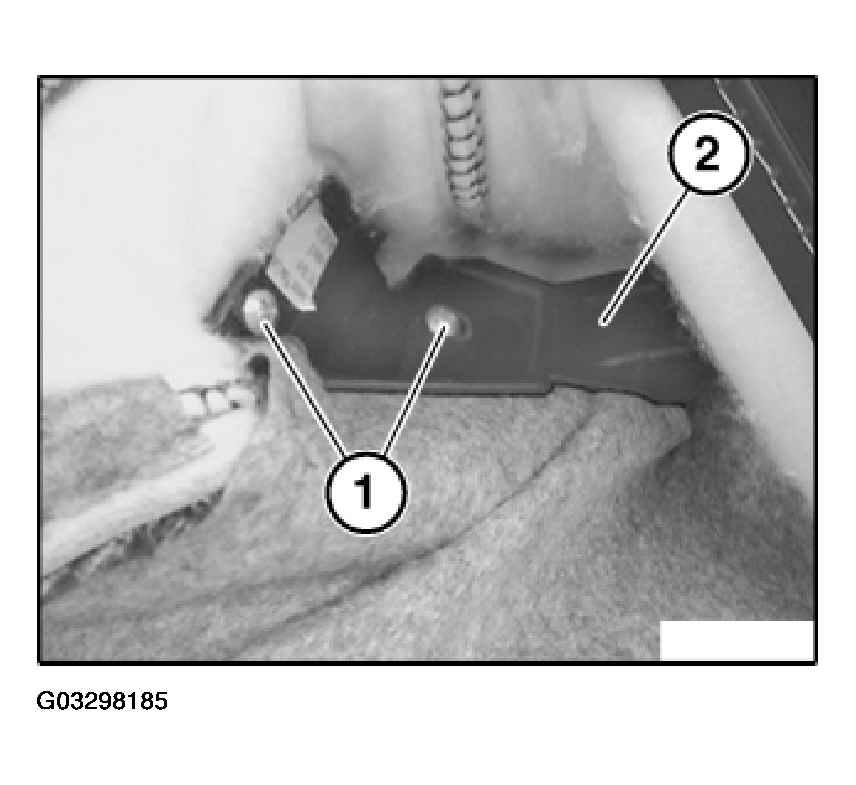

Release screws (1), remove strip (2).
Tightening torque, see 52 11 11AZ in SEATS - TIGHTENING TORQUES .
