52 13 040 Removing and installing/replacing outer cover on left or right front seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

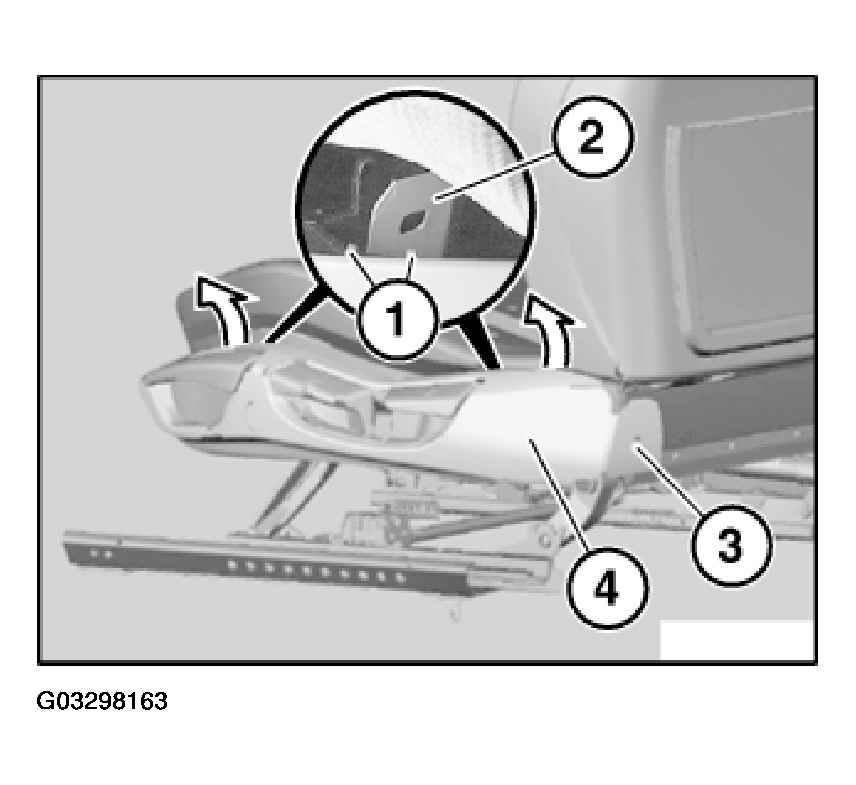

Release screw (3).

Unlock tabs (1) downwards with finger from above between seat and trim.

If necessary, raise tab (2) at rear.

Pull cover (4) at top outwards slightly.

Fig 1: Pulling Cover At Top Outwards Slightly

G03298163

Courtesy of BMW OF NORTH AMERICA, INC.

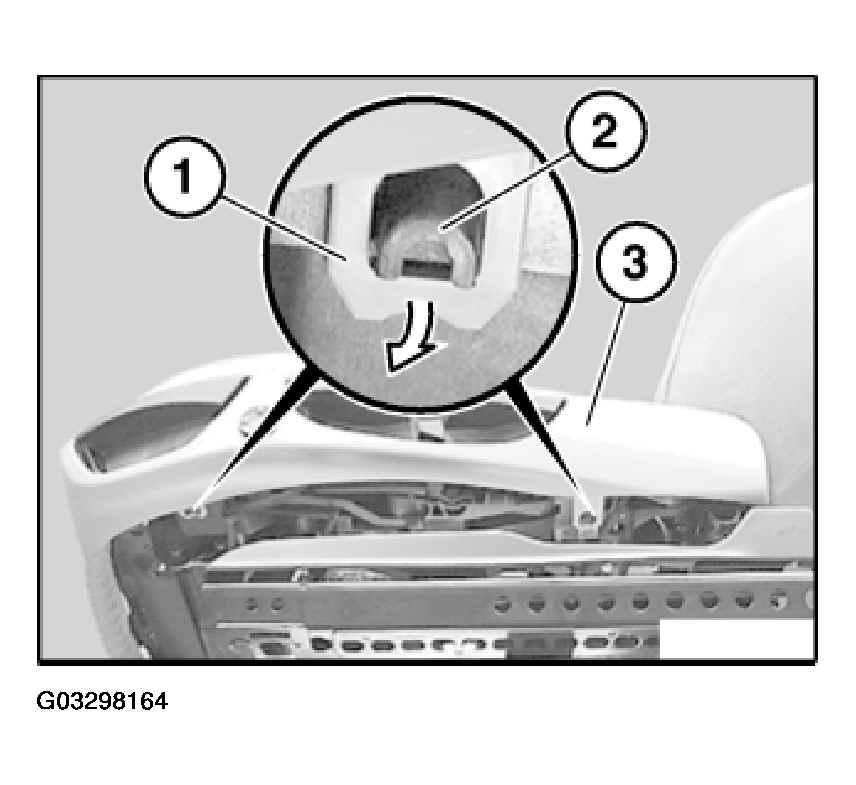

Lever out tabs (1) of cover (3) on holder (2).

Fig 2: Removing Tabs Of Cover On Holder

G03298164

Courtesy of BMW OF NORTH AMERICA, INC.

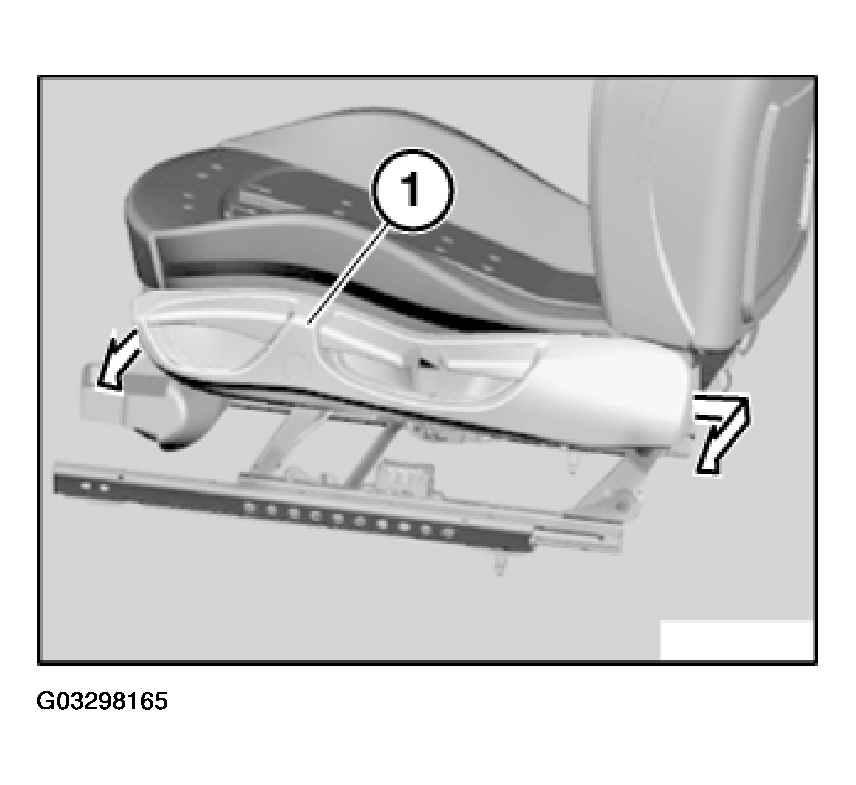

Lever out cover (1) at rear in direction of arrow.

Detach cover (1) at front from guide and remove.

Lumbar support optional extra:

Disconnect plug connection on actuating unit and remove cover (1).

Fig 3: Removing Cover At Rear In Direction Of Arrow

G03298165

Courtesy of BMW OF NORTH AMERICA, INC.

The following operations are only applicable for:

Electric seat adjustment optional extra.

Installation:

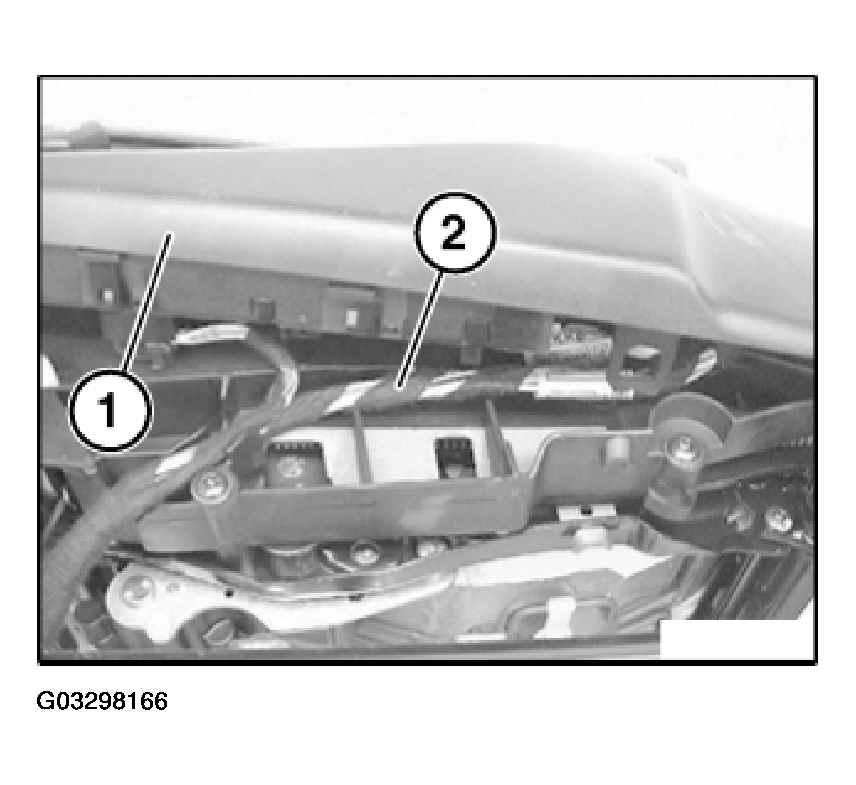

When fitting cover (1), make sure wiring harness (2) is in correct installation position.

Fig 4: Making Sure Wiring Harness Is Correctly Installed

G03298166

Courtesy of BMW OF NORTH AMERICA, INC.

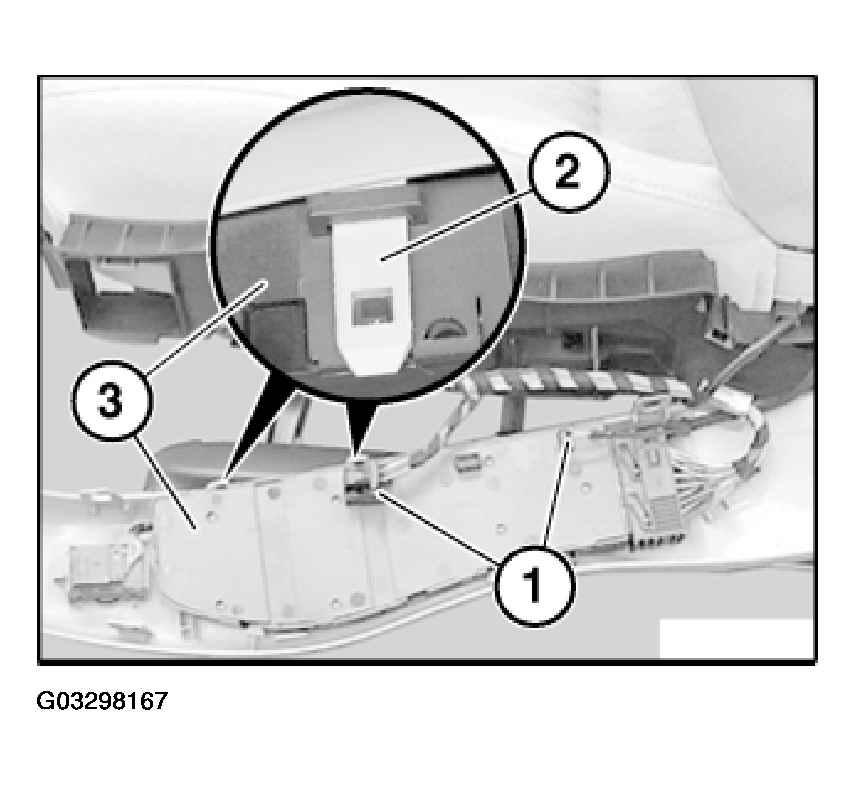

Disconnect plug connections (1).

Lever out tabs (2), remove actuating unit (3).

Fig 5: Disconnecting Plug Connections

G03298167

Courtesy of BMW OF NORTH AMERICA, INC.

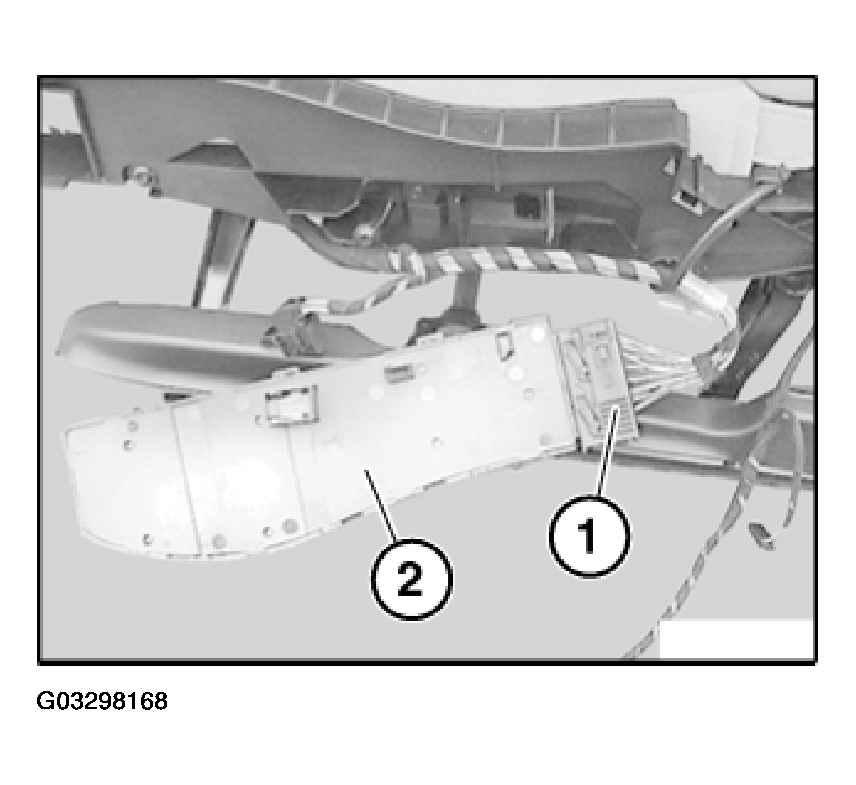

If necessary, disconnect plug connection (1).

Remove actuating unit (2).

Fig 6: Removing Actuating Unit

G03298168

Courtesy of BMW OF NORTH AMERICA, INC.
