51 24 130 Removing and installing/replacing locking bracket for trunk lid lock

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Lever out trims (1) above cutout.

Unfasten screws (2).

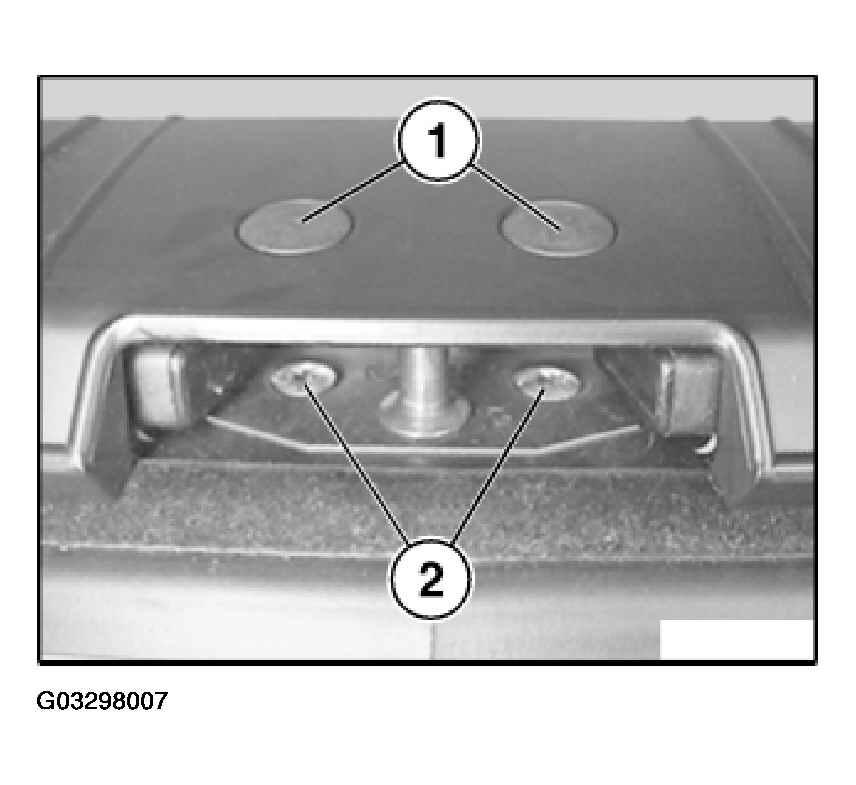

Fig 1: Levering Out Trims Above Cutout

Courtesy of BMW OF NORTH AMERICA, INC.

Raise trim for tail panel (1) and remove rear lid lock (2) (lower section).

Installation:

Adjust lower section of rear lid lock.

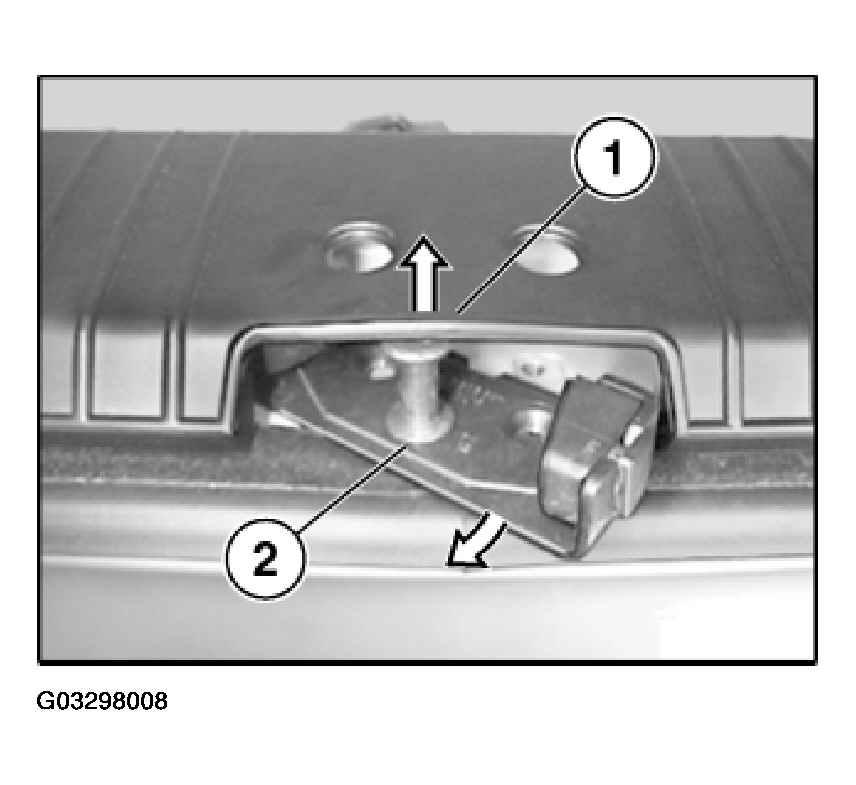

Fig 2: Removing Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Closing bracket and rear lid lock must not be greased.
