51 24 004 Adjusting rear lid lock (lower section of rear lid lock)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Rear lid must be correctly adjusted to fit before adjustment of rear lid lock.

Adjust rear lid as necessary.

If necessary, lock ejectors in detent buffers:

Press ejector into detent buffer and, in this position, twist slightly to left with a Phillips screwdriver.

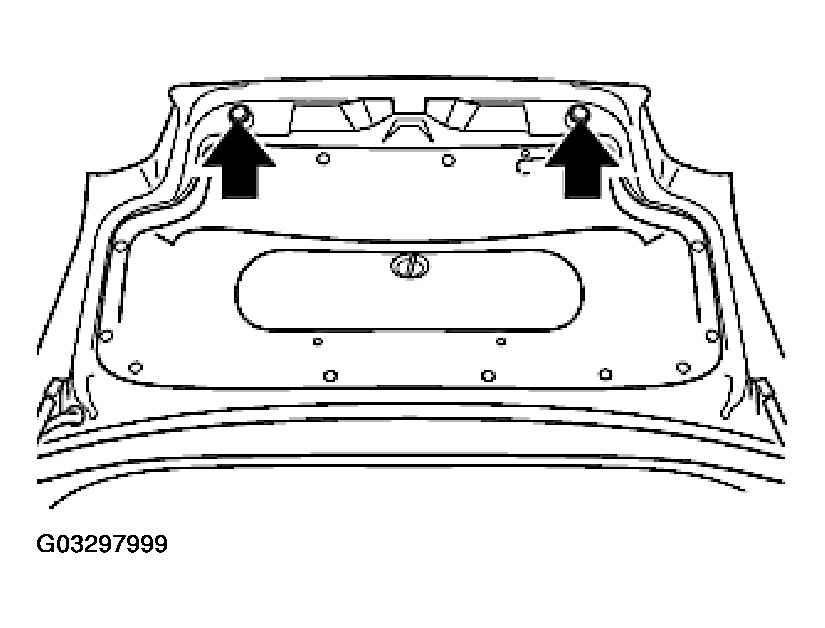

Fig 1: Locating Lock Ejector Buffer

Courtesy of BMW OF NORTH AMERICA, INC.

Fully turn detent buffer on left/right of rear lid to insert.

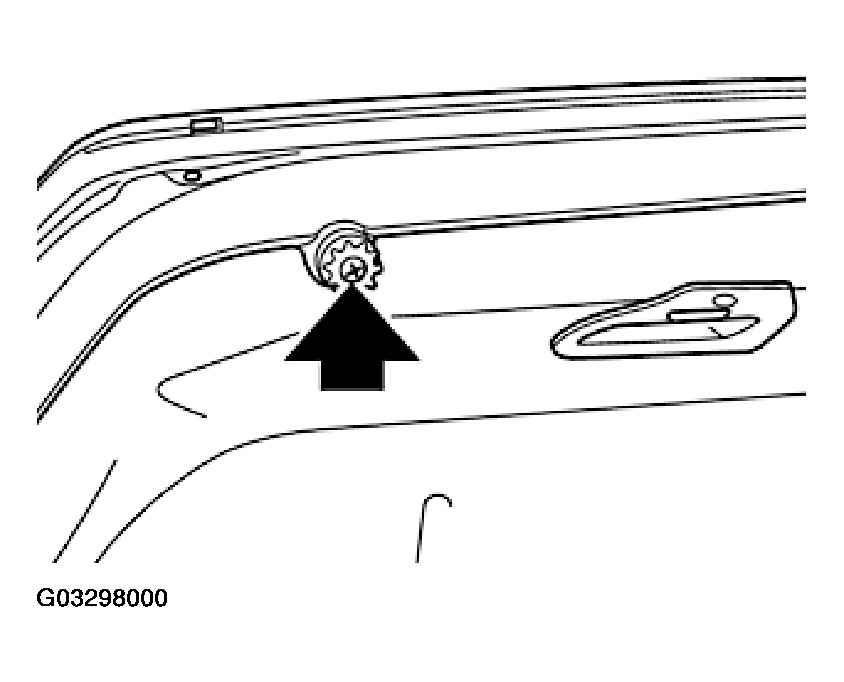

Fig 2: Turning Detent Buffer On Left/Right Of Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Check fulcrum pads on lower section of rear lid lock for damage and replace if necessary.

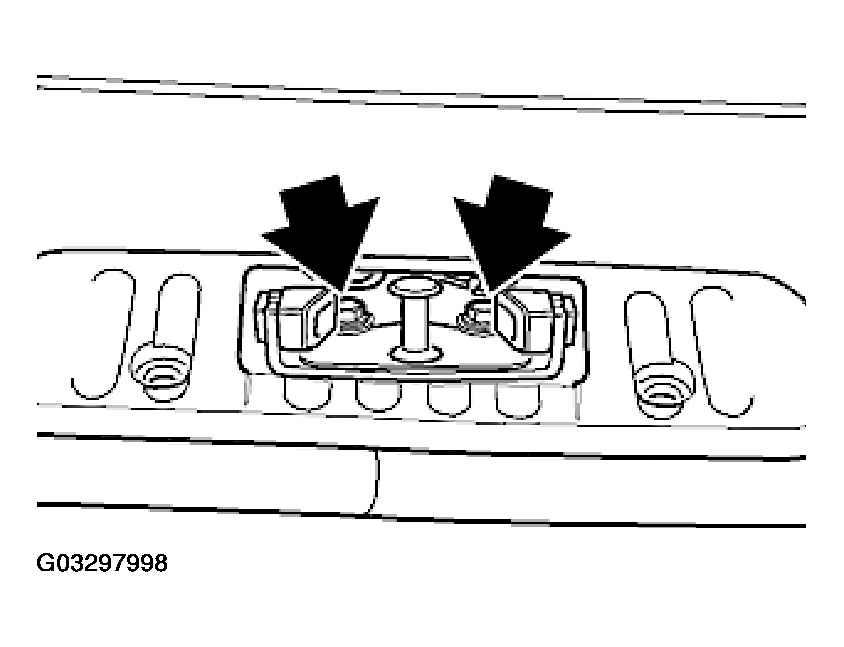

Fig 3: Locating Fulcrum Pads On Lower Section Of Rear Lid Lock For Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws in lower section of rear lid lock until it is just able to move and centers itself.

The lower section of the rear lid lock must not scrape against the rear lid lock.

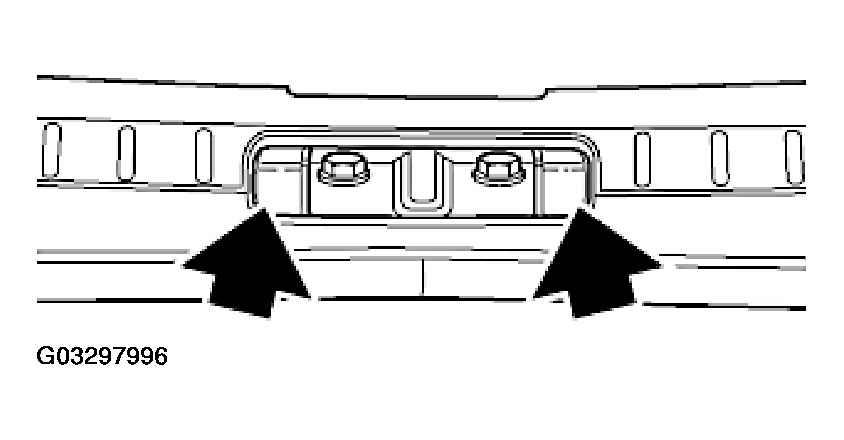

Fig 4: Loosening Screws In Lower Section Of Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting lower section of rear lid lock:

Close trunk lid.

This enables lower section of rear lid lock to adjust itself correctly.

Open trunk lid.

Tighten down screws on lower section of rear lid lock.

Check adjustment of trunk lid and trunk lid lock, repeating adjustment if necessary.

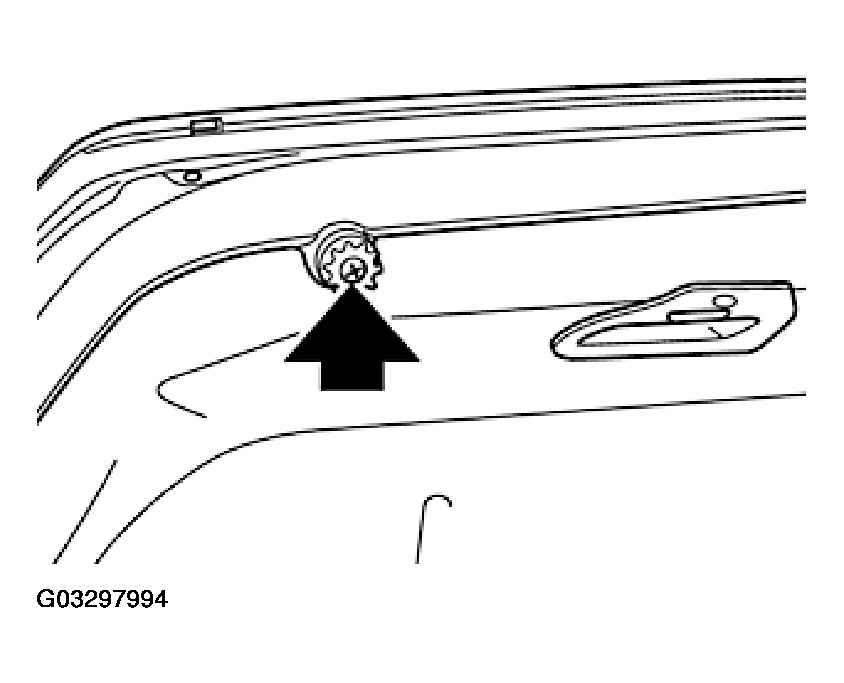

Fig 5: Tightening Down Screws On Lower Section Of Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew detent buffers to the point where left and right sides of closed rear lid lie rest on detent buffers.

IMPORTANT: The trunk lid must not be higher than the side panels, otherwise there is preload on height adjustment!

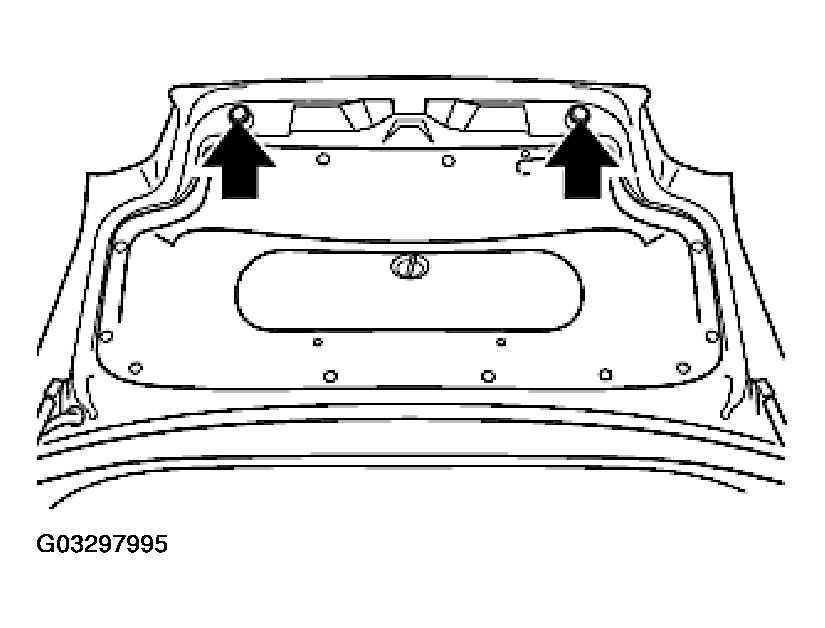

Fig 6: Adjusting Detent Buffers To Point Where Left And Right Sides Of Closed Rear Lid Rest On Detent Buffers

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the ejectors in the detent buffers gently to the right with a Phillips screwdriver. This unlocks the detent buffers and enables them to retract.

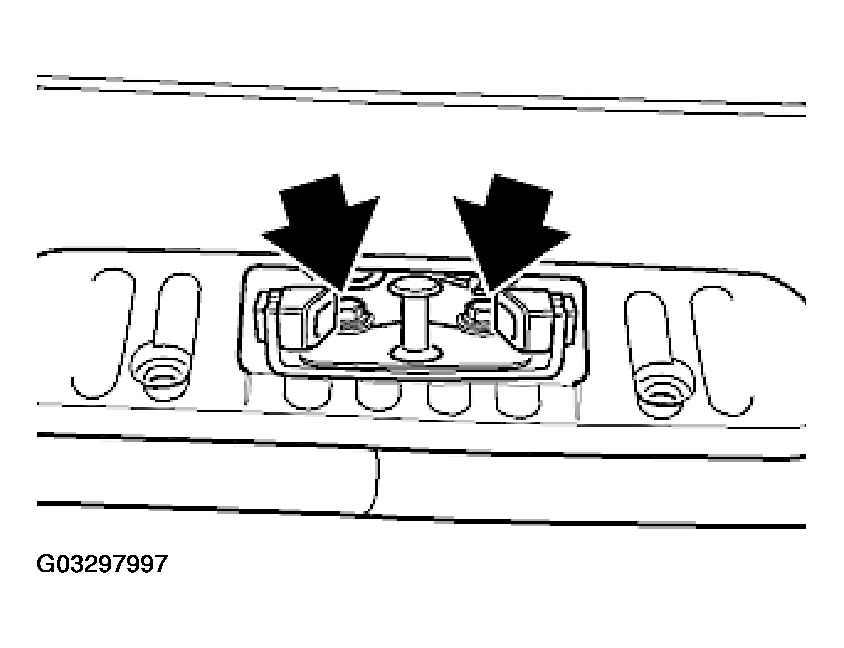

Fig 7: Turning Ejectors In Detent Buffers

Courtesy of BMW OF NORTH AMERICA, INC.
