51 43... Removing and installing/replacing trim behind rollover bar on left or right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

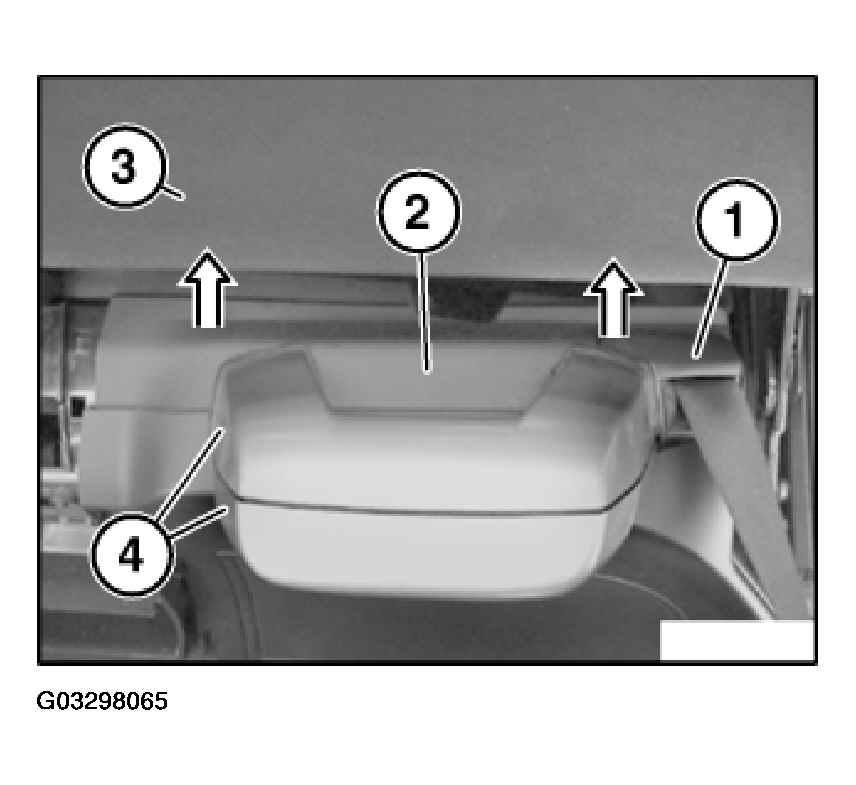

Unlock convertible top (3) and raise slightly.
Pull off trim (2) towards rear.
Installation:
Feed in trim (2) below belt guide (1) and rollover bar trim (4).
Make sure end rings are correctly seated on rollover bar trim (4).
Installation:

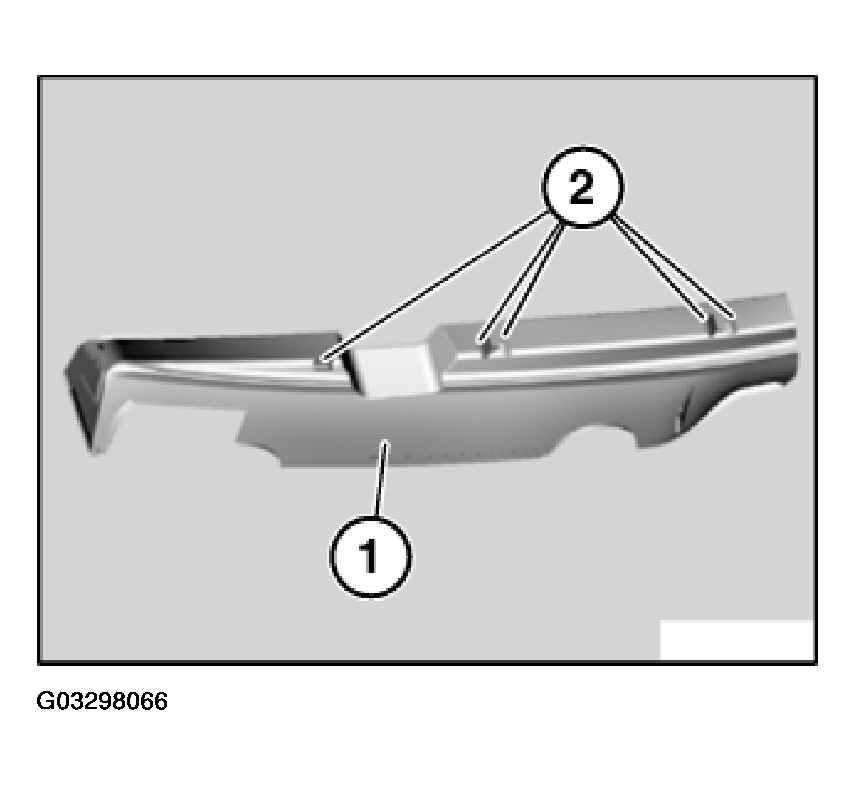

Retaining lugs (2) on trim (1) must not be damaged or missing.
